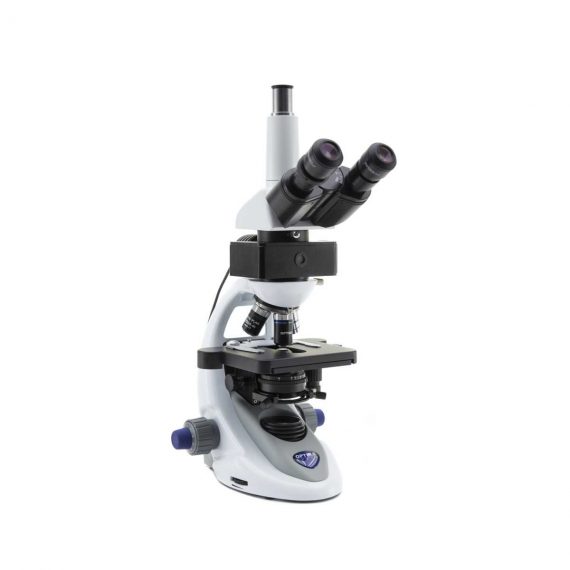

Optika B-293LD1.50 Trinocular LED Fluorescence Microscope

Description

Fluorescence binocular and trinocular microscopes especially designed for tubercolosis and malaria analysis.
Features:

Observation mode: Brightfield.
Head: Trinocular, 360° rotating and 30° inclined. Interpupillary distance 48-75mm.
Dioptric adjustement: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by a screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives:

Equipped with binocular head and following objectives:

IOS N-PLAN 10x/0.25 (Cover/No Cover), with anti-fungus treatment

IOS N-PLAN 20x/0.40 (Cover/No Cover), with anti-fungus treatment

IOS N-PLAN 40x/0.65 (Cover/No Cover), with anti-fungus treatment

IOS W-PLAN MET 50x/0.75 (No Cover), with anti-fungus treatment
Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Brightfield Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
Fluorescence Illumination: Extra efficiency LED, with light intensity control. Peak wavelength: 465 nm, Power: 3.6W.
Epi Fluorescence Attachment: Slider with 3 positions (2 fluorescence, 1 brightfield), with 1 included filterset: Fluorescence B: EX 460-490, DM 505, EM 515LP: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc.


Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Phase contrast (Positive type)
As optional


Darkfield
As optional


Simple polarized light
As optional

Observation Method –
Incident Light
Fluorescence
Yes

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Trinocular (Siedentopf)


Split ratio
50/50


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
48-75


Dioptric adjustement
On left tube


Fixing screw for eyepieces
Yes


Tube inner diameter (mm)
23

Eyepieces
Field number (mm)
20


Magnification
10x


Pointer
As optional


Micrometric scale
As optional


Diameter of micrometer glass (mm)
21


High eyepoint (for glass wearers)
Yes


Rubber cup
Yes

Nosepiece
Positions
Quadruple


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system
∞


Anti-fungus treatment
Yes


Parfocal distance (mm)
45


Standard magnifications
40x-400x


Type
IOS


Objectives included
OS N-PLAN
10x/0.25, W.D. 5.8 mm
IOS N-PLAN
20x/0.40, W.D. 5.1 mm
IOS N-PLAN
40x/0.65, W.D. 0.43 mm
IOS W-PLAN MET
50x/0.75, W.D. 0.32 mm

Stage
Type
Double layer


Dimensions (mm)
150×139


Moving mechanism
Rackless


Moving range (mm)
75×33


Material
Anti-scratch painting


Specimen holder
Yes


Slide number
1


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Single
Position
Type
Abbe


Removable
Yes


Numerical aperture (N.A.)
1.25


Magnification scale for simplified positioning
Yes


Diaphragms
Iris


Centrable
Yes


Focusable
By rack and pinion

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
18


Fine total travel (per single rotation) (mm)
0.4


Fine graduations
100


Fine resolution (µm)
4


Upper stop to prevent contact
Yes


Adjustable tension
Yes

Transmitted
Illumination
Kohler illumination
Fixed


Type
X-LED


X-LED type
X-LED3


Light source power (W)
3.6


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
6

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
6 Vdc  2.5A

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


Tension adjustment tool
Yes


User Manual
Digital version (downloadable)

Additional Information

Mirror for transmitted light (as optional).
External rechargeable battery pack (as optional)

Product Weight
Height (mm)
515


Width (mm)
235


Depth (mm)
340

Product Weight
(kg)
7.5

Fluorescence
Attachment
Number of positions
3


Blue filter set (included) specs
Excitation: 460 – 490 nm; Dichroic: 505 nm;
Emission: 515LP nm


Filter dimensions
Excitation: 18 mm diam.;
Dichroic: 26.5 mm x 19 mm;
Emission: 18 mm diam.


Filter set selection
Manual

Fluorescence Light
Source
Light source
Blue LED


Watt (W)
3.6


LED wavelength
Blue LED: 465 nm


Lifetime (hours)
> 65,000


Brightness control
Yes
