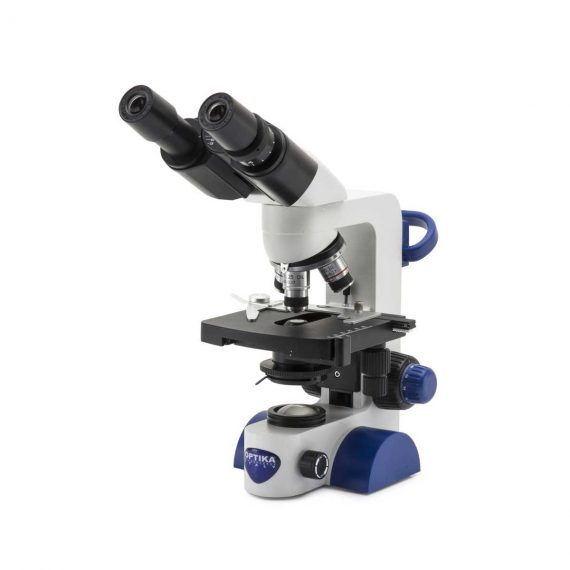

Optika B-69 Binocular Microscope

Description

Cordless, modern binocular microscope ideal for students and mainly primary schools with achromatic lenses (1000x), FN 18 eyepieces, finite optical system, coaxial focusing, StagErase™ eraseable mechanical stage, Abbe condenser and 1 W LED illumination with rechargeable batteries. Slim and easy to carry, it is equipped with arm/wrist rest support to reduce the fatigue during use and long lasting LED illumination to provide over 20 years of use.
Features:

Observation mode: Brightfield.
Head: Binocular, 30° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepiece: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives:

– Achromatic 4x/0.10, with anti-fungus treatment

– Achromatic 10x/0.25, with anti-fungus treatment

– Achromatic 40x/0.65, with anti-fungus treatment

– Achromatic 100x/1.25 (oil), with anti-fungus treatment
Specimen stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: 1 W LED, with brightness control, rechargeable batteries.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.


Technical Specifications:

Observation Method – Transmitted Light
Brightfield
Yes


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Binocular (Siedentopf)


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
55-75


Dioptric adjustement
On left tube


Fixing screw for eyepieces
Yes


Tube inner diameter (mm)
23

Eyepieces
Field number (mm)
18


Magnification
10x


Pointer
As optional


Micrometric scale
As optional

Nosepiece
Positions
Quadruple


Reversed
Yes


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system
160


Anti-fungus treatment
Yes


Parfocal distance (mm)
35


Standard magnifications
40x-1000x


Type
Achromatic

4x/0.10, W.D. 10.6 mm

10x/0.25, W.D. 7.0 mm

40x/0.65, W.D. 0.5 mm

100x/1.25 (Oil), W.D. 0.13 mm

Stage
Type
Double layer


Dimensions (mm)
125×125


Moving mechanism
Rack and pinion


Moving range (mm)
62×24


Material
Anti-scratch painting


Specimen holder
Yes


Slide number
1


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Single
Position
Type
Abbe


Numerical aperture (N.A.)
1.25


Diaphragms
Iris


Focusable
By rotation

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
23


Fine total travel (per single rotation) (mm)
1.2


Fine graduations
100


Fine resolution (µm)
12


Upper stop to prevent contact
Yes

Transmitted
Illumination
Type
LED


Light source power (W)
1


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
1.5

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
5 Vdc 500 mA


Rechargeable batteries
Yes


Battery type
Ni-MH (3x, AAA size)


Working time of batteries (hours)
4


Charging time of batteries (hours)
8

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


User Manual
Digital version (downloadable)

Product Dimensions
Height (mm)
330


Width (mm)
135


Depth (mm)
235

Product Weight
(kg)
3.0
