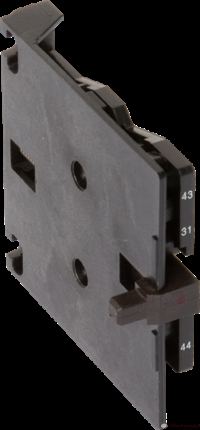

SK829002-A CAL16-11A Auxiliary Contact Block

General Information

Extended Product Type:
CAL16-11A

Product ID:
SK829002-A

EAN:
7320500002964

Catalog Description:
CAL16-11A Auxiliary Contact Block

Long Description:
2 pole screw type left side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments

Categories

Products ? Low Voltage Products and Systems ? Control Products ? Contactors ? Block Contactors Accessories

Connecting Terminals (delivered in open position):
M 3.5 (+,-) pozidriv 2 screw with cable clamp

Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

Minimum Switching Capacity:
0.25 VA/ 12 V / 5 mA

Power Loss:
at Rated Operating Conditions per Pole 0.2 W

Product Main Type:
CAL16

Product Name:
Auxiliary Contact Block

Rated Breaking Capacity acc. to IEC 60947-5-1:
10 x Ie AC-15

Rated Frequency (f):
Supply Circuit 50 60 Hz

Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Rated Making Capacity acc. to IEC 60947-5-1:
10 x Ie AC-15

Rated Operational Current AC-15 (Ie):
(500 V) 1 A

(690 V) 1 A

(24 / 127 V) 6 A

(220 / 240 V) 6 A

(380 / 400 V) 4 A

Rated Operational Current DC-13 (Ie):
(24 V) 6 A

(48 V) 6 A

(72 V) 4 A

(125 V) 1.8 A

(250 V) 0.6 A

Rated Short-time Withstand Current (Icw):
for 0.1 s 100 A

for 1 s 50 A

Replaced Product ID (OLD):
9262465-525

RoHS Date:
1713

Suitable For:
A-line

Suitable for Product Class:
CONTACTORS

Technical Information:
AUXILIARY CONTACT
