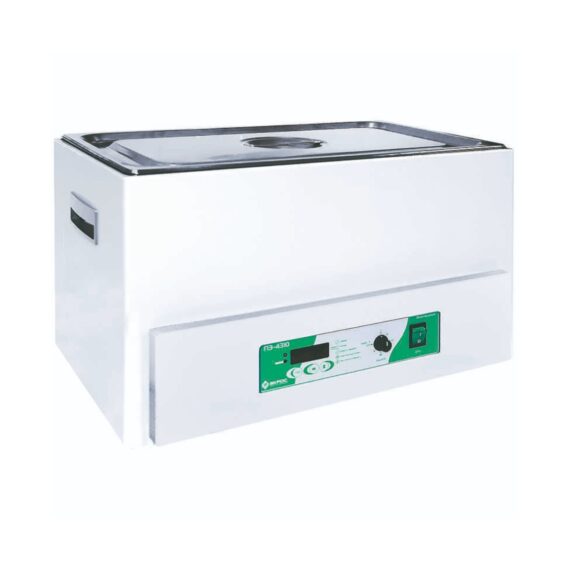

Water bath PE-4310 (30L)

Description

Laboratory Water Bath PE-4310 is intended to handle a wide range of laboratory procedures for industrial, biochemical and scientific research. The instrument is designed for accurate temperature control between ambient +5°С up to 99.9°С
Features:

– FRAME: SPCC metallic body with heavy duty epoxy powder coating in white

– INTERNAL BATH: Seamless Stainless Steel 304 (AISI 304)

– LID: Stainless Steel 304 (AISI 304)

– CONTROL SYSTEM: Digital PID microprocessor control system for temperature. 4 digits digital LED displays PV, SV and time. Wait off timer: 99min 59 sec / 99 hr 59min / 99 day 23 hr / continuous – time scale selectable. Class A PT100 control sensor.

– SAFETY: Adjustable over-temperature cut-off safety: Thermostatic controller. Over current cut-off: Fuse
Technical specifications:

Supply voltage, V – 220±10%

Maximum power consumption, W – 2000

Operating temperature range, ambient, °С – + 5 to 100

Temperature accuracy, °С – 0.1

Temperature non-uniformity, °С – ±0.5

Bath volume, L – 30

Inside bath dimension (WхDхH), cm – 49.5х29х20

Dimension (WхDхH), mm – 54.5х38х33

Weight, not more than, kg – 11.1
Operating conditions:

Ambient air temperature, °С – 5 to 35

Relative air humidity, % – up to 80

Allowable time of continuous work, hours – unlimited
Scope of delivery:

– PE-4310 series Water Bath – 1 pc

– Stainless steel 304 (AISI 304) Lid – 1 pc

– Heater cover – 1 pc

– Power cable – 1 pc

– Data Sheet and Operating Manual – 1 pc
