Your Everyday Welder!

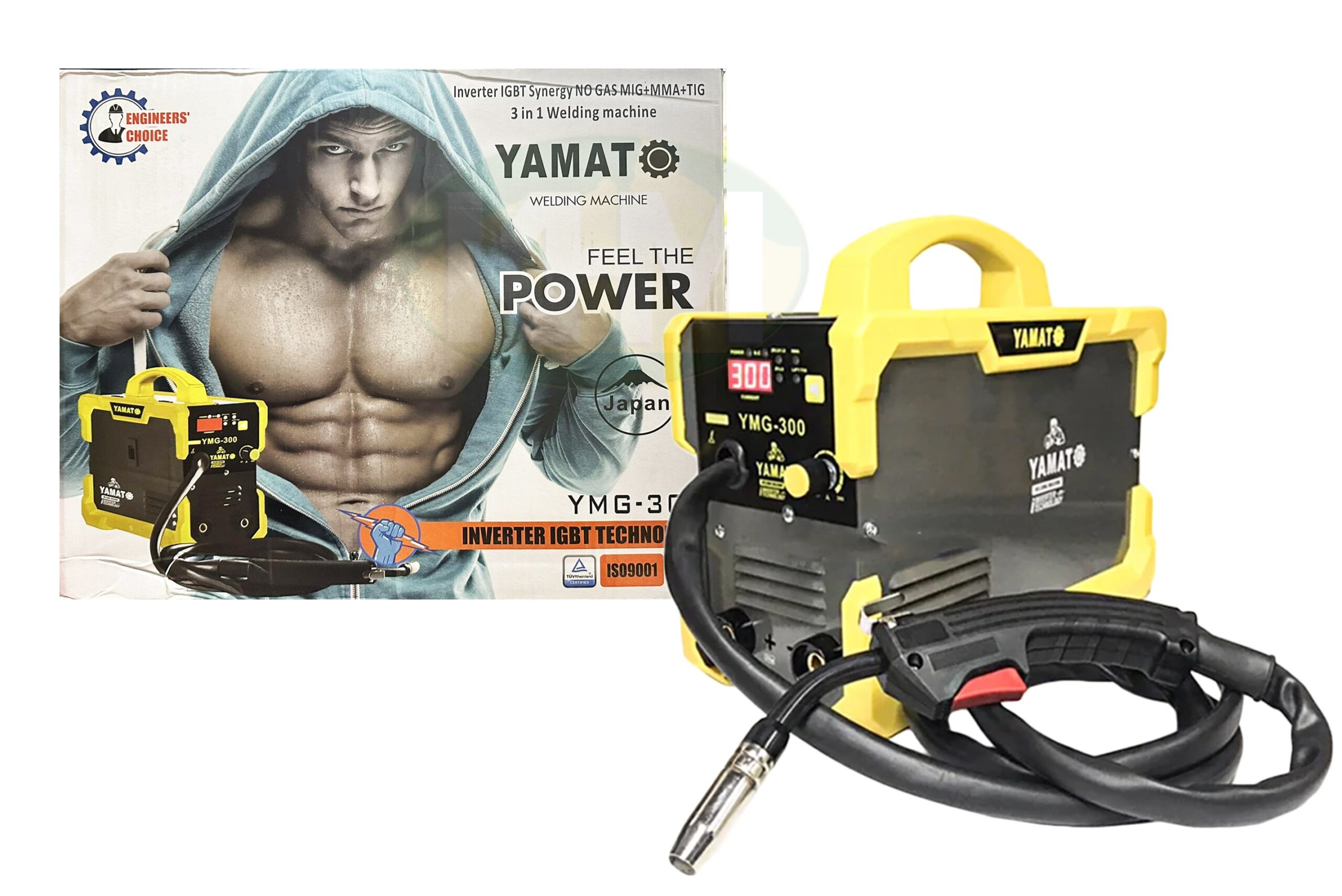

Yamato YMG-300 3in1 DC Inverter Multi Process Welding Machine (MIG,ARC,TIG)
- Most Trusted Brand here in the Philippines!
- 3in1 Fluxcored MIG, MMA, TIG
- Digital Amp Meter
- 6 Months Service Warranty
- For Light Duty Use only
- Note: TIG Torch Assembly not included (Hose end is in TIG Torch Assembly)
Specifications
| Model | YMG-300 |
| Voltage |
1 phase 220V+-15%
|
| Rated Input Current (A) | MIG: 49A TIG:37A MMA: 54A |
| MIG Output current (A) | 30-300 |
| TIG Output Current (A) | 10-300 |
| MMA Output Current (A) | 20-300 |
| Output Voltage |
MIG: 15.5 – 29V
TIG: 20.8 – 32V MMA: 10.6 – 22V |
| Duty cycle | 60% |
| Power Factor | 0.73 |
| Efficiency | 85 % |
| Wire Machine | Compact |
| Wire Speed | 2-13 m/min |
| Post puff | 1 s |
| Wire Wheel Diameter | 150mm |
| Wire diameter |
MIG Flux: 0.8 – 1.0mm
TIG: 1-2mm MMA: 1.6 – 3.2mm |
| Housing shielding grade | IP21 |
| Insulation grade | F |
| Weight | 6.2 |
| Dimension: |
345 x 155 x 320mm
|
| May change without prior notice | |
Inclusions:
Electrode Holder, Ground Clamp, Welding Mask, Steel Brush/ Chipping Hammer, MIG Torch Assembly
6 Months Service Warranty
