Product

X-Ray (Mobile) 100 mA Digital Control panel
Made In:?India
Model: MDX-100DX/MCB

Unique Features:

Soft Touch Keyboard
Color TFT Display
Anatomical Programme
Self Diagnostic Programme

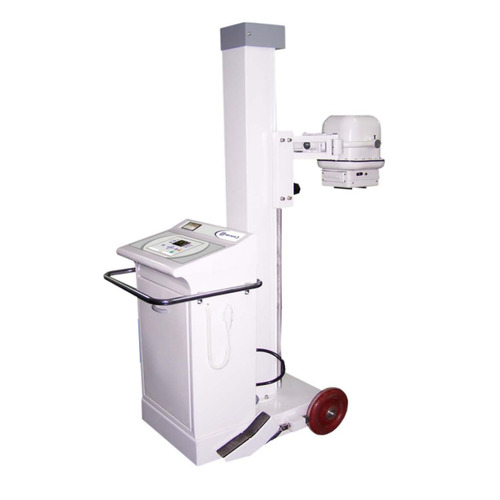

100mA, 100 KVP Mobile X-Ray machine with digital control panel

product specification

Output Rating

8 KW as per IS:7620 (Part I) : 1986
100mA at 40?to 100 KVP
50mA at 40 to 100 KVP
25mA at 40?to 100 KVP

KVP Range

4?to 100 KVP in Steps of 5 KVP/Step

Timer

Micro-controller controlled timer

Control Panel

Attractively and Ergonomic designed digital control panel having soft touch control of all radiographic parameters
The Equipment uses State of the Art Technology with micro Controller to Control various Functions & Selections
Panel is equipped with a multiline graphical color TFT Display.
All Parameters, viz. DV, mA, Time, MAs are displayed on the TFT Display.
Two modes of operation are provided, Manual Mode & APR Mode(Anatomical Programme)
APR mode helps in Auto selection of Radiographic Parameters for different sizes of Patients for their different Body parts
x-Ray counter. Auto selection of parameters as per screen speed.
Bucky Selection switch. Indicators for Mains ON, Overload, Error, Ready & X-Ray ON are provided
Pre programmed key for quick selection of parameters
Equipment is provided with Voltmeter to indicate voltage
Automatic Input Voltage Compensation
Auto stabilization of filament voltage

Safety Features

Automatic trip off overload circuit breaker
Electronic overload protection with simultaneous protection from high input voltage/KVP/mA/Time provided
Self diagnostic programme
Fuses for all circuits provided in the machine
Error indicator with type of Error displayed

Tube Head

Self Contained Tube Head containing Stationary Anode X-Ray Tube (BEL DSA ? 3B/ Imported) having Focal Spot of 2.8 mm.
Compact Heavy Duty Full Wave Rectified H.V. Transformer and High Voltage Silicon Rectifiers immersed in Oil and hermitically sealed.
Tube head can be tilted 360? with full flexibility for use in operation theatres and in ward for bedside Radiography

Tube Stand

Mobile Counter Balance (MCB)

Accessories

Manual Light Beam Collimator
Hand Switch wit irretractable cord.
Aluminum filter

Power Supply

230 Volts AC, +- 10% Lined Regulation
Single Phase, 50 Hz
Line Resistance of 0.4 Ohms as per IS:7620(1)
Power lines having line resistance of more than 0.4 Ohms may limit the output of X-Ray Generator.
