Description

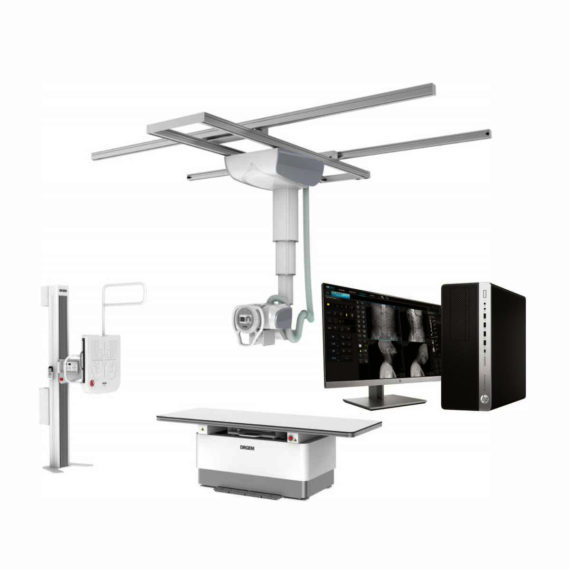

DrGem Ceiling Mounted Digital X-ray is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered.
Features:

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA: Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
Full Featured Imaging Software & Excellent Digital Image Processing:

Provides convenient user interface and easy operation
Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
Radiographic stand & automatic collimator control function
DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

Included – Software, HP Laptop Computer

CPU≥3.2GHz
Memory capacity：≥4GB
Hard drive capacity ：≥500 GB
Resolution: 1280 x 1024
Display size： 21 inch color LCD screen
64 bit Windows 10 operation system
Core: i5


Technical Specification:

Power Rating – 32KW
Generator – GXR-32S
Rotor – Dual Speed Starter(DSS)
Input Power – 400/480VAC, Three phase
Line Frequency – 50/60Hz
X-ray tube – DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage – 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output – 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range – 1ms to 10s
mAs Range – 0.1 to 800mAs
Reproducibility – Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01 Accuracy – kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs) Linearity – Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs Mechanical Parts: -TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m – PBT-4: 4 way Floating Tabletop. – WBS-TA: a. Vertical    movement V Stroke:1,450mm in Upright Bucky Position, 1,526mm in Horizontal Bucky position. – HVC-15: 15M HV cable – Auto Collimator   Click Here To Download Catalogue
