Product Description

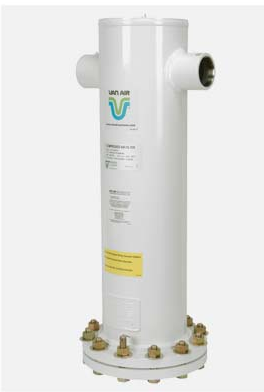

Van Air Systems’ F101 series coalescing and particulate filters are designed to remove contaminants from compressed air and gas systems. Available in 2″ NPT to 6″ flange connection sizes and flow capacities up to 5000 scfm at 100 psig in 6 housings and 10 filtration grades, the F101 series removes oil aerosols, oil vapors, condensed water, and particulates. Housings are constructed of welded steel, built and stamped in accordance with the ASME code. Accessories include differential pressure indicators and automatic drain valves.

Features and Benefits

Flows up to 5000 scfm at 100 PSIG
Standard vessel maximum working pressure, 250 PSIG at 225°F
Vessels with maximum working pressures up to 1440 PSIG available
ASME welded steel design
Push-on element for quick servicing
Large reservoirs facilitate draining of coalesced water and liquids
10 filter element grades, 25 micron – .01 micron
Remove oil aerosols, oil vapors, liquids, and sub-micron particles
Long-lasting elements reduce maintenance costs

Applications

Protection of deliquescent, regenerative desiccant dryers and refrigerated dryers
Compressed air system protection
Natural gas transmission, dry gas filtration
Abrasive blasting
Dust collectors
Air cylinders, motors
