Description

Product Description

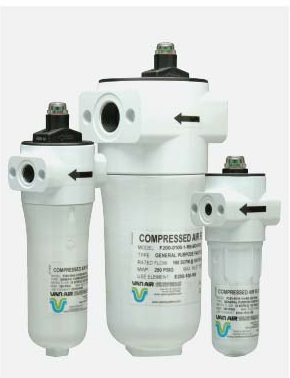

Van Air Systems’ F200 series coalescing and particulate filters are designed to remove contaminants from compressed air and gas systems. Available in ¼” to 3″ NPT connection sizes and flow capacities from 15 to 1200 scfm at 100 psig in 15 housings and 9 filtration grades, the F200 series removes oil aerosols, oil vapors, condensed water, and particulates. F200 housings are made of cast aluminum and coated with an epoxy powder coating for corrosion resistance. All units include push-on elements with a durable polyester drain layer. Accessories include differential pressure indicators, wall mounting kits, connector kits and automatic drain valves.


Features and Benefits

Flows up to 1250 scfm at 100 PSIG
Maximum working pressure, 250 PSIG at 225°F (RD grade element 250 PSIG at 80°F)
Heavy-duty cast aluminum design
Push-on element for quick servicing
Standard pop-up indicator signals when element needs replacing
Large reservoirs facilitate draining of coalesced water and liquids
Nine filter element grades, 25 micron – .01 micron
Remove oil aerosols, oil vapors, liquids, and sub-micron particles
Long-lasting elements reduce maintenance costs

Applications

Instrument air & gas
Pre-filter for deliquescent, regenerative dryers and refrigerated dryers
Pneumatic hand tools
Abrasive blasting
Dust collectors
Air cylinders, motors
Blow molding
