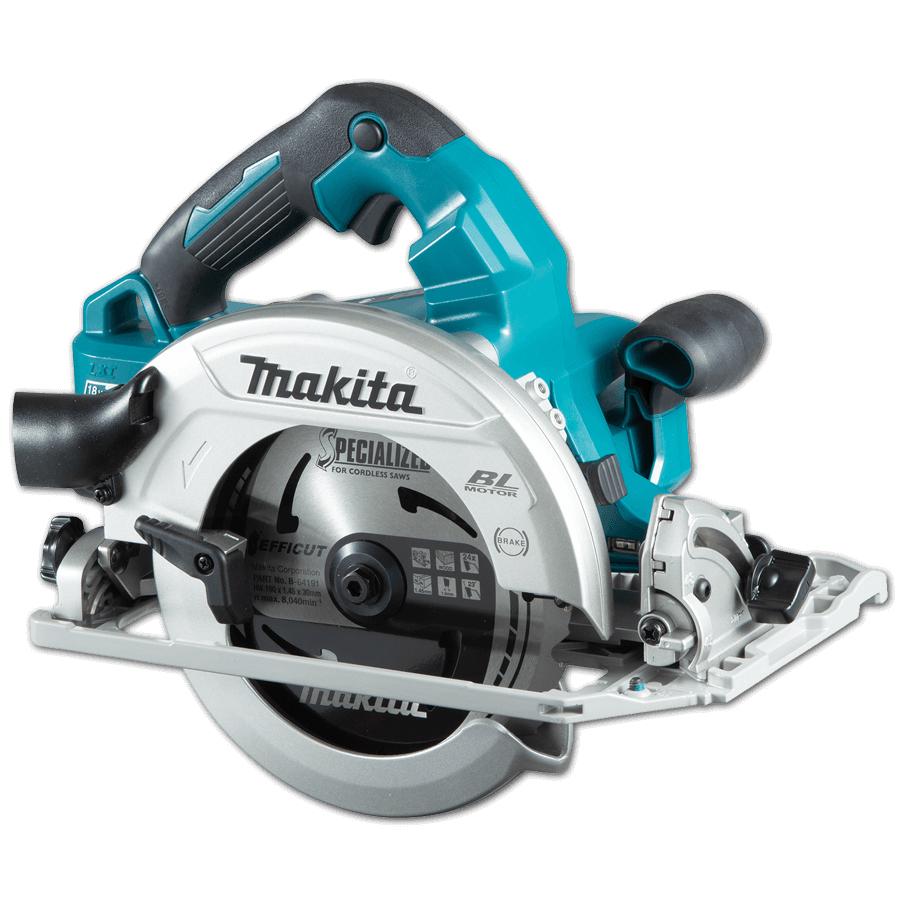

DHS783Z ? 190/185mm (7-1/2?/7-1/4?) Magnesium 18V x2 (36V)

• Compatible with Guide Rail without Adapter, Providing Precision Cutting
• Increased visibility of ink line position
• 6,000 RPM for fast cutting
• 18V solution for corded power demands
• Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
• BL motor delivers 6,000 RPM for fast cutting
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• Large cutting capacity (62.5 mm at 90?) and bevel capacity (0? ? 48?) with a positive stop at 45?
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
• Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
• Overload alert using ADT lamp

Specifications:

Blade Diameter 190 / 185 mm (7-1/2? / 7-1/4?)
Hole Diameter 15.88 / 20 / 30 mm (5/8? / 13/16? / 1-3/16?)
Max Cutting Capacity 90?: 62.5 / 60 mm (2-7/16? / 2-3/8?)
45?: 44.5 / 43 mm (1-3/4? / 1-11/16?)
48?: 42 / 41 mm (1-5/8? / 1-5/8?)
No Load Speed (RPM) 6,000
Max Output 1,800 W
Vibration Level Cutting Wood: 2.5 m/s? or less
Vibration K Factor Cutting Wood: 1.5 m/s?
Vibration Level Cutting Metal: 2.5 m/s? or less
Vibration K Factor Cutting Metal: 1.5 m/s?
Sound Pressure Level 93 dB(A)
Sound Power Level 104 dB(A)
Noise K Factor 3 dB(A)
Dimensions (L x W x H) 348x210x290 mm (13-3/4?x8-1/4?x11-3/8?)
Net weight 4.5 ? 5.1 kg (9.9 ? 11.3 lbs.)

Inclusions:
TCT Saw Blade, Dust Nozzle, Hex Wrench, Guide Rule, Hook

Lifetime Service Warranty
