Overview
Essential details
- Warranty:
-
1 Year
- Customized support:
-
OEM
- Place of Origin:
-
China
- Brand Name:
-
YIYU
- Model Number:
-
YAW-300
- Power:
-
0.75kw
- Product name:
-
Testing Machine
Supply Ability
- Supply Ability
- 500 Set/Sets per Month
Packaging & delivery
- Packaging Details
Standard Size and dimensions of package installation product
- Port
Ningbo
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 15 >15 Lead time (days) 20 To be negotiated
Product Description

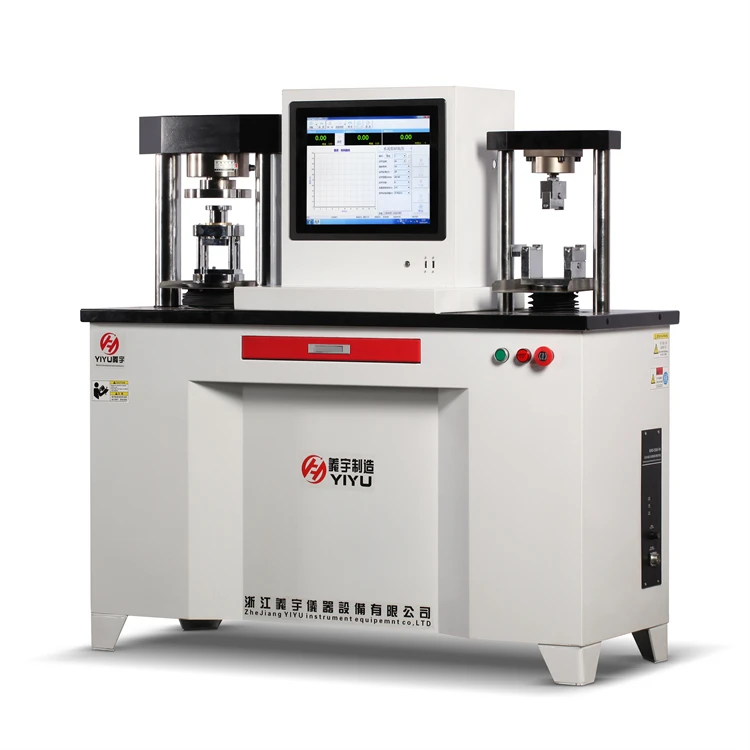

computer controlled cement bending and compression machine
YAW-300D

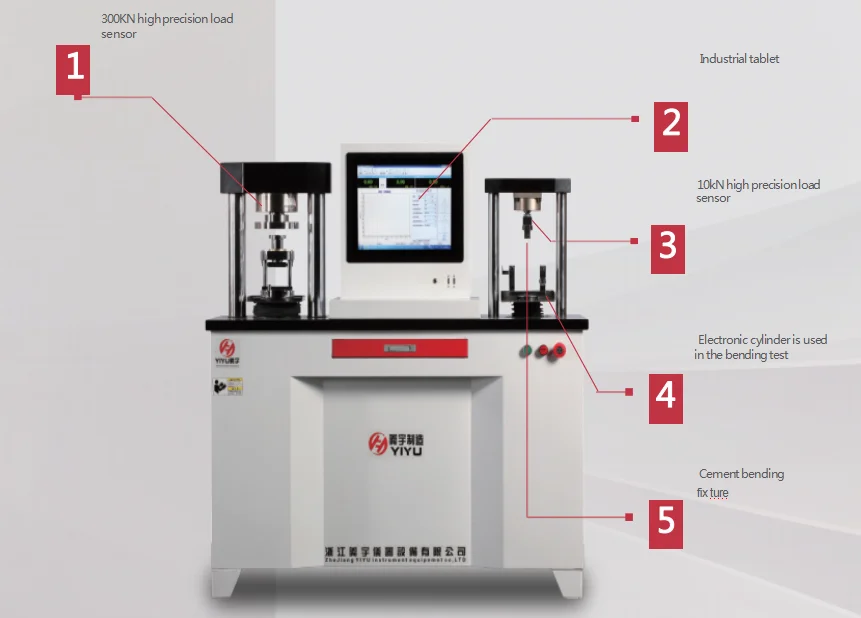

1.300kN high precision load sensor
2.10kN high-precision load sensor
3. The flexure test part uses electronic cylinder
4. Cement folding fixture
5. Industrial grade computers.
2.10kN high-precision load sensor
3. The flexure test part uses electronic cylinder
4. Cement folding fixture
5. Industrial grade computers.
|
Item/index/model
|
YAW-300D
|
|
maximum test force
|
300KN/10KN
|
|
Test force accuracy
|
0.5 level
|
|
Piston stroke（mm）
|
320
|
|
National type upper pressure plate size（mm）
|
φ108/φ60
|
|
Ball type upper pressure plate dimensions（mm）
|
φ150
|
|
Ball type upper pressure plate dimensions（mm）
|
φ150
|
|
dimension(load frame)（mm）
|
1210*470*1220
|
|
power(kW)
|
0.75KW
|
|
weight（kg）
|
500kg
|
Company Profile
VR
Certifications
Packaging & Shipping
FAQ
1. Production time: for common products: 7days; for special order: 15days.
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
