Characteristics

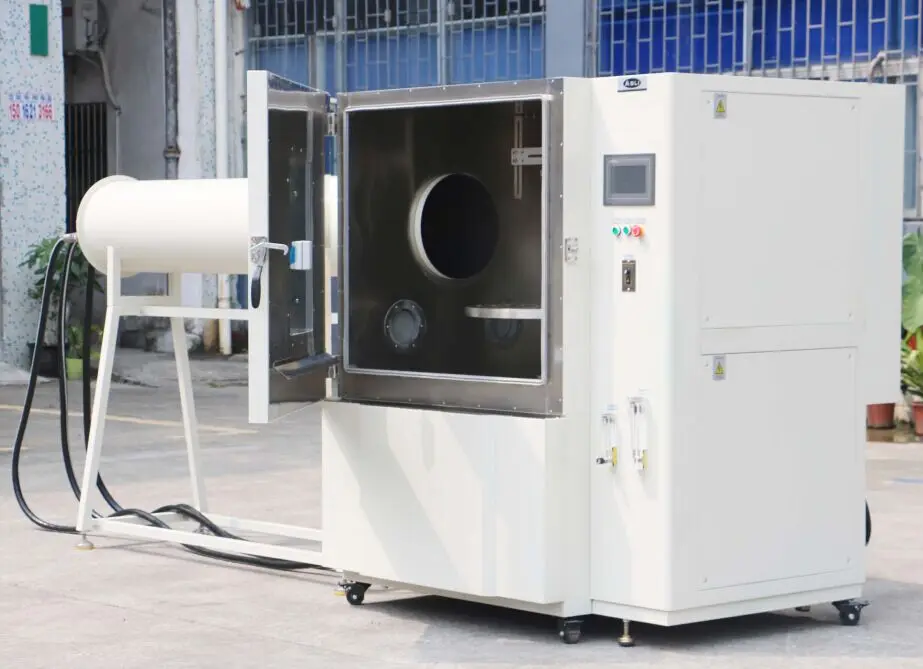

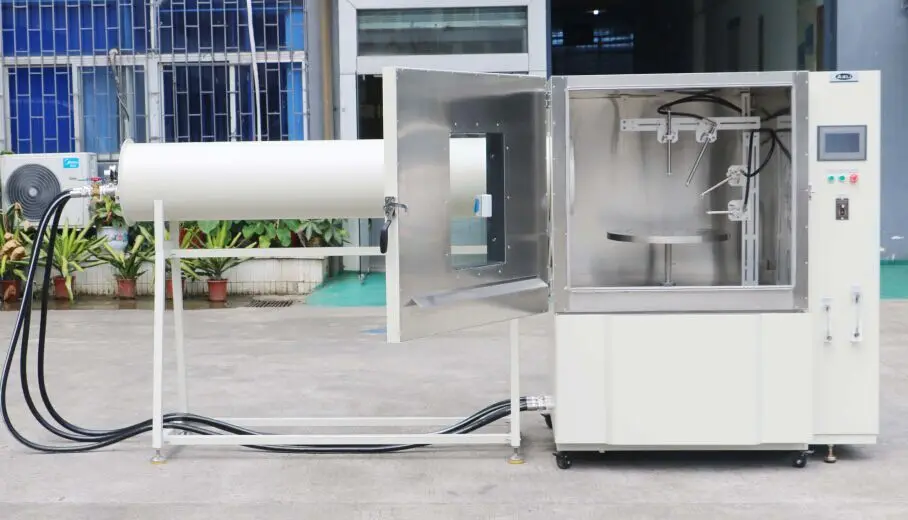

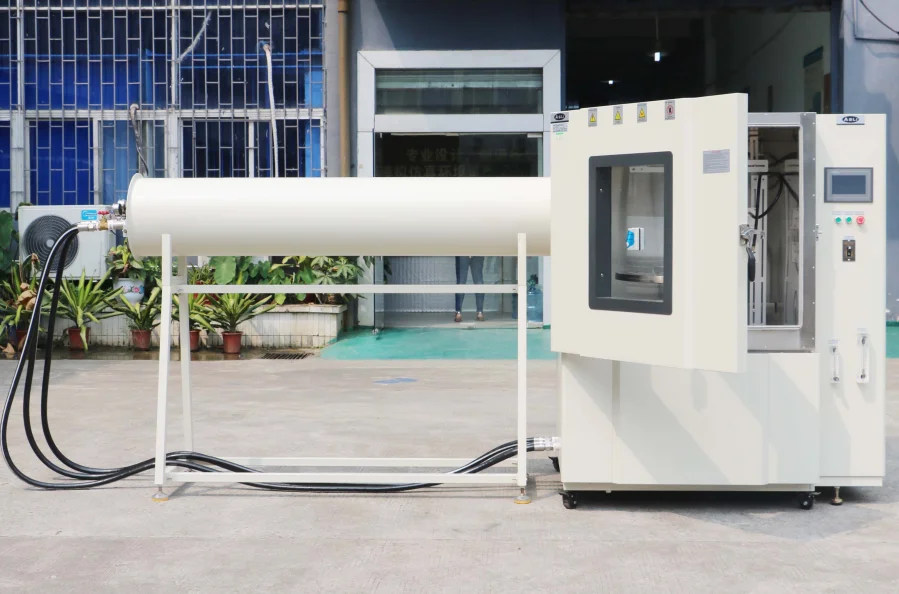

Rain Spray Test Chamber for rain test adopts double casing and strengthens the structural design. The inner wall is made of SUS304 stainless steel plate (thickness 1.0mm±0.05), and the outer casing is sprayed with galvanized steel plate (color is required by customers);
The bottom of the chamber designed with an inclined surface, so that the test water can be returned to the water tank without any accumulation of water. A filter screen is provided at the water inlet to prevent foreign matter from entering the water tank from the water inlet.
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.
1.Large viewing window with Interior lighting, easy to observe.
2.Standard and Custom, We have different types for different sizes of samples.
3.Water circulation system to save water and cost.
Applications of Rain Spray test chamber
|
Model |
RT-1000A |
|
Test Standard |
JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 standard |
|
Internal Dimension WxHxD (mm) |
1000x1000x1000 |
|
External Dimension WxHxD (mm) |
1600x1900x1400 |
|
JIS Test |
Flow:1.8L/Min~3.9L/Min |
|
pressure:0.1kgf/cm2~0.3 kgf/cm2 |
|
|
Drop Test |
1~1.5mm/Min Adjustable IPx1 IPx2 drop speed: 1~1.5mm/Min adjustable |
|

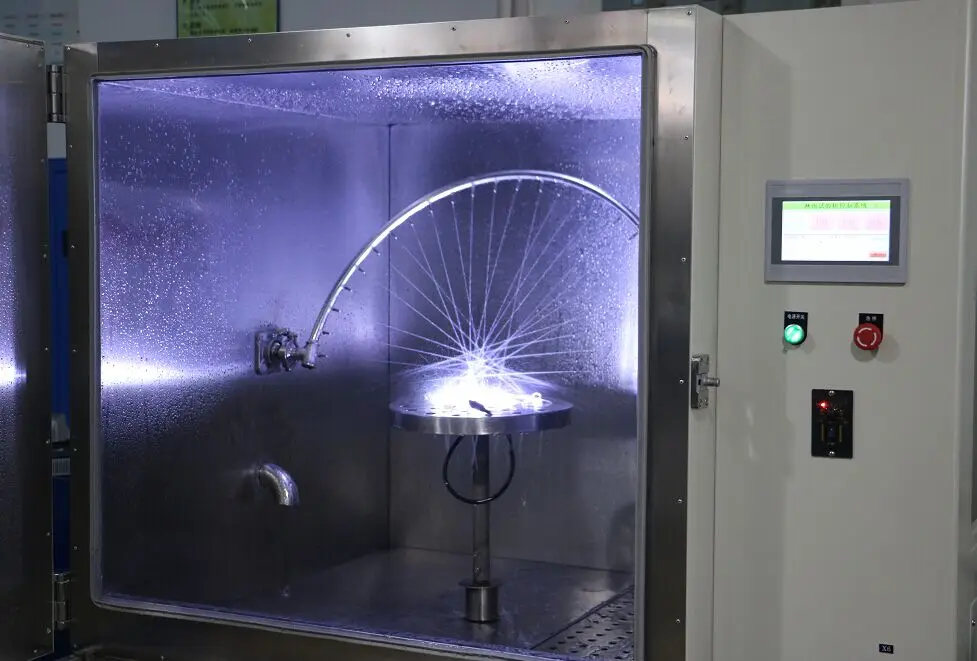

Rain of Pipe-Swing Test |
IPx3 IPx4 swing pipe: RT~±80°C Flow:0.07L/min per Nozzle |
|
Water Spray Test |
IPx3 IPx4 jet:2.5m~3m
flow :12.5L/min ~100L/Min |
|
High Pressure Jet Test |
80Kgf~100Kgf IPx9K pressure of jet:80Kgf~100Kgf Flow:14~16L/Min |
|
Rotating Speed of Rotating-Plate |
4~20 RPM adjustable |
Details of water spray test
 |
 |
|
Test Area 1.Inner material is 2.5 mm thickness SUS 304 stainless steel, high water proof resistance 2.The turntable can load 20 kg. 3.Built-in waterproof socket electrifies the specimen. 4.Water filter system ( Environmental protection, water saving and cost saving ) 5.Automatic water inlet, Customers can connect directly to the faucet in the lab for automated testing 6.Water circulation system |

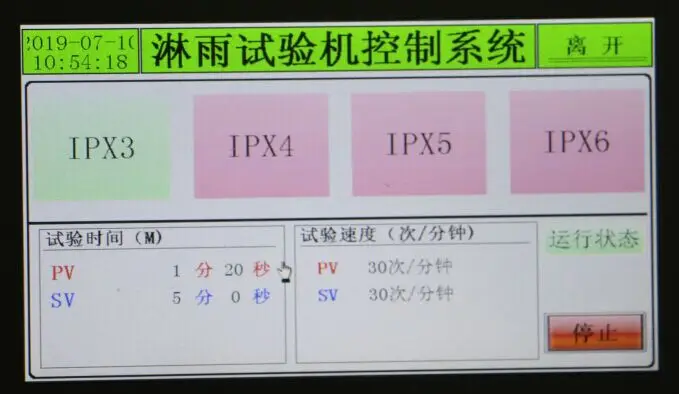

Control Panel 1.Programmable color display touch screen controller. 2.Programs reach to 999 groups and 999 sections. 3.PC Link: Ethernet interface, USB, RS-232, APP. 4.English Software 5.Showing Time, Temperature, on/off switch, flow meter, pressure measurement. 6.Simplicity of operator , More data storage patterns. 7.Standard and Custom |
 |
 |
 |
