STSJ-6A Fully automatic Tetragenous Direct Shear Testing Apparatus Instruments Equipment is used to test resisting shear strengt Allschoolabs -

Description

Overview

Essential details

Warranty:: 1 Year

Customized support:: OEM

Place of Origin:: Shanghai, China

Brand Name:: SHTG

Model Number:: STSJ-6A

Power:: Electronic

Product name:: STSJ-6A Fully automatic Tetragenous Direct Shear Testing Apparatus

Area of soil sample:: 30cm²

Lever ration:: 1:12

Vertical Loading:: 50,100,200,300,400(KPa)

Max. horizontal loading:: 1.2kN

Working voltage:: AC220V+/-10%

Supply Ability

Supply Ability: 20 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(pieces)	1 – 1	2 – 3	>3
Lead time (days)	15	21	To be negotiated

Product Overview

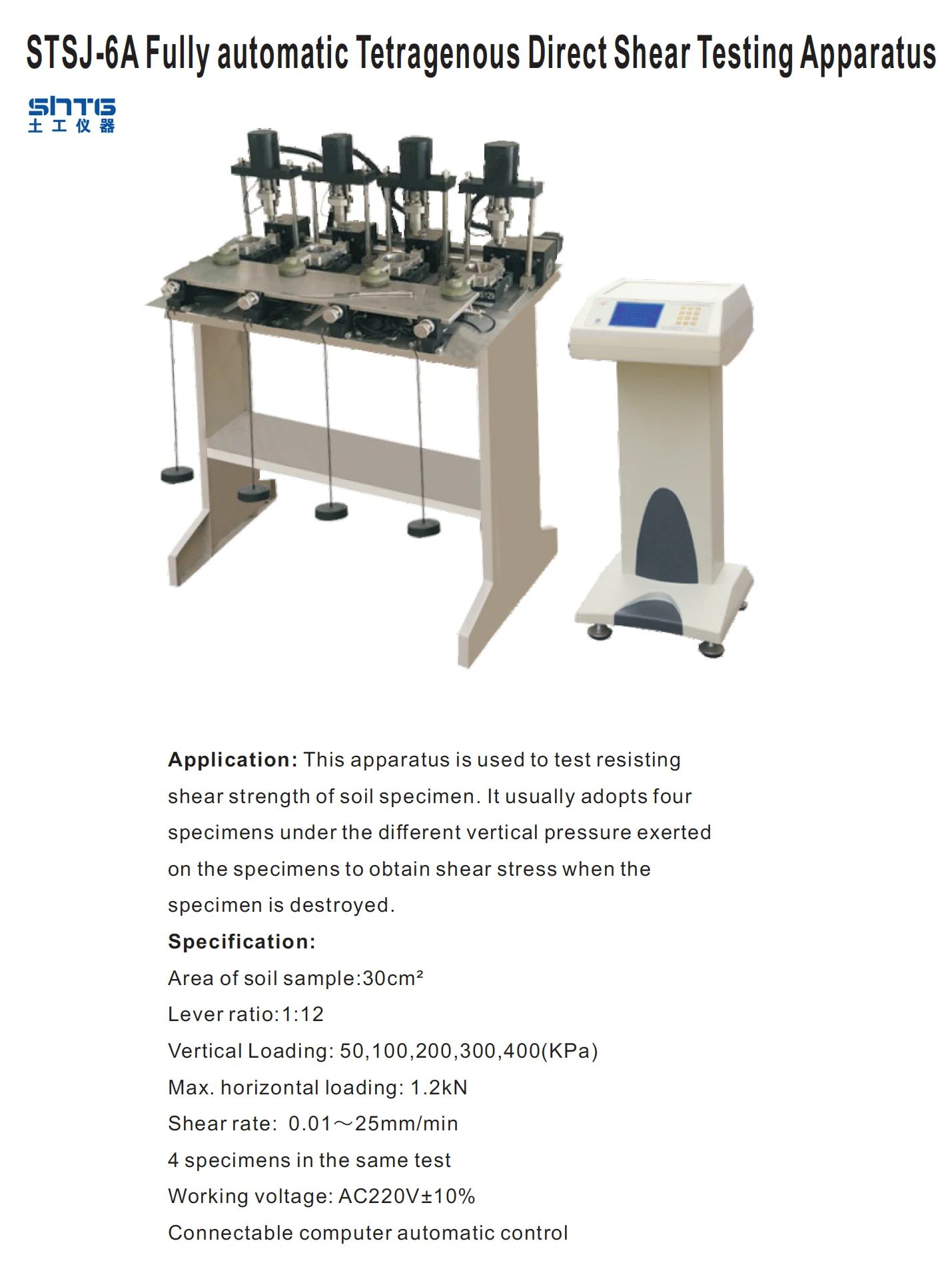

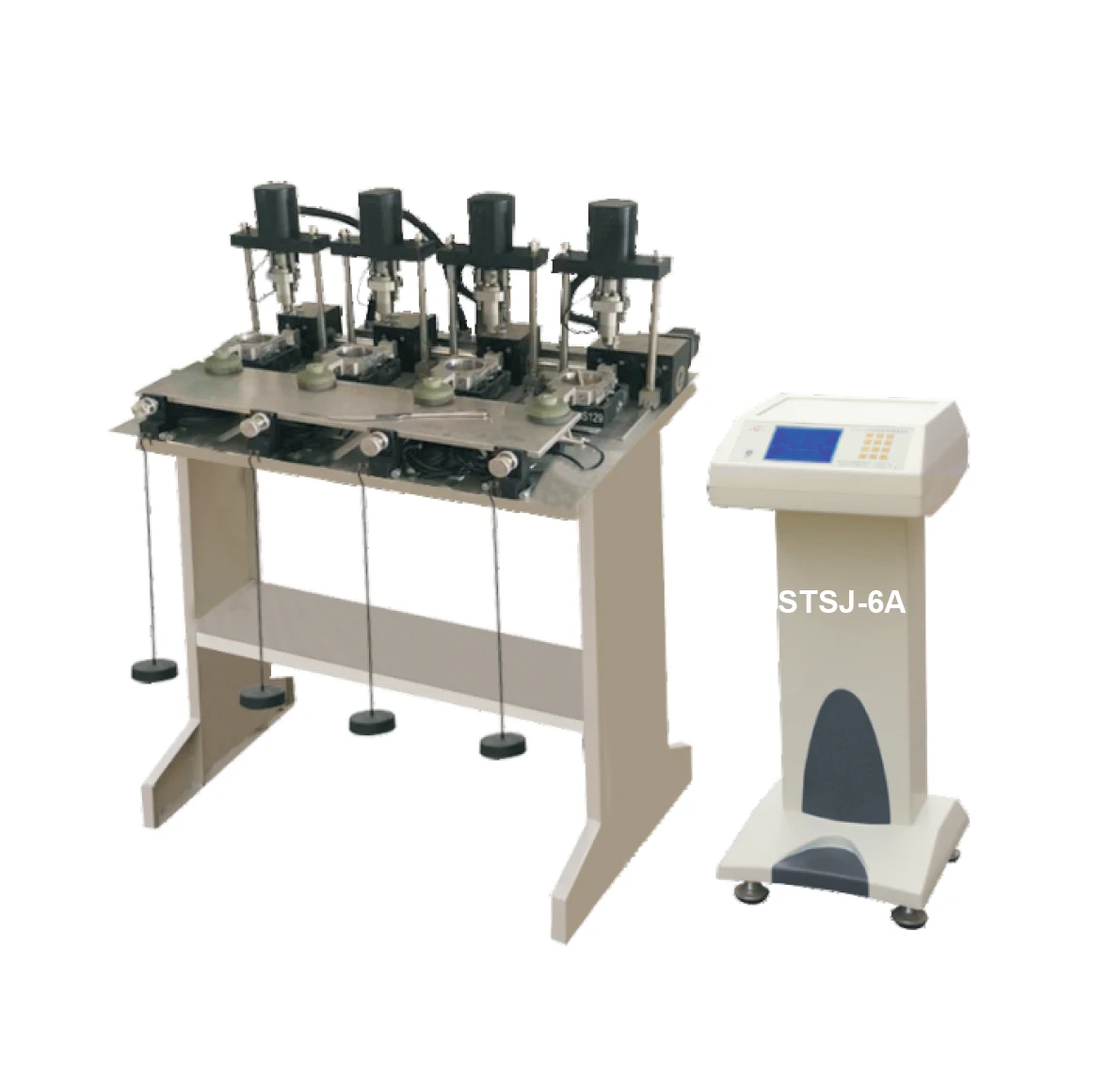

STSJ-6A Fully automatic Tetragenous Direct Shear Testing Apparatus

FEATURES AT A GLANCE

Area of soil sample:30cm²
Lever ratio:1:12
Vertical Loading: 50,100,200,300,400 (KPa)
Max. horizontal loading: 1.2kN
Shear rate: 0.01～25mm/min

4 specimens in the same test
Working voltage: AC220V±10%
Connectable computer automatic control

Application

This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.

Standard

It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant.

Accessories

All Related Accessories

PRODUCT SPECIFICATIONS

PRODUCT CONFIGURATION

Main Frame Made of Stainless Steel

High Performance

High Speed

SALES AND SERVICE NETWORK

Successful Project

Installed Lab

Company Profile

Shanghai Civil & Road Instrument Co., Ltd. was established in 1981, located in China, is a leading manufacturer and supplier of construction materials testing equipment. We are one of the professional manufacturing enterprises of geotechnical instruments, highway instruments, and building material instruments in China. Meeting the standard of CE, BS, ASTM, and so on. Our equipment is used extensively throughout the world for testing soil, concrete, cement, asphalt, and aggregate in construction projects. These projects include roads, bridges, dams, earthworks, and buildings.

Our company’s main products are divided into below series:

1. Mechanics Testing machines (UTM, CTM)

2. Soil Testing Equipment (CBR, Direct Shear Apparatus)

3. Field Testing Equipment (Core Drilling Machine, German Technology)

4. Aggregate (Abrasion Machine, Sieve)

5. Asphalt, Asphalt mixture (Density Meter, Oven)

6. Curing Controller, Cabinet (Test Chamber, Marshall Compactor)

7. Rock Testing Machine

8. Cement Testing Machine

9. Mortar

10. Geosynthetics

11. Waterproof Material

12. Cement Paste

13. Surveying Instrument

14. Balance

15. Wall Brick Compression Strength Specimen Equipment

16. Lab Test Equipment

17. Many Others

Apart from a standard product portfolio, we also have expertise in building customized machines for its customer’s requirements. We have the resources, skills, and knowledge to support your business, providing the expertise you need for accurate, reliable, and consistent sample testing. Pre-sales advice and post-sales technical support are always close at hand. We supply training for free, with comprehensive technical and applications support.

Packaging & Shipping

Packing:
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL.
We shall let you know about the shipping cost after receipt of your order.
It’s more preferable for you to provide us with your own FEDEX/DHL account number
so that the delivery charge can be charged directly from your account.
