Temperature And Humidity Test Chamber Industrial Test Equipment
Overview
Essential details
- Warranty:
-
1 Year
- Customized support:
-
OEM
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
ASLI
- Model Number:
-
TH-408-F
- Power:
-
Electronic
- Internal dimension:
-
W600*H850*D800mm
- Volume:
-
408L
- Temperature range:
-
-70~150C
- Humidity range:
-
20%~98%R.H
- heating speed:
-
3C/min
- cooling rate:
-
1C/min
- Test Hole:
-
Dia. 50mm
- Power supply:
-
AC380V, 3 PHASE 5 LINES
- Test Standard:
-
MIL, IEC, ASTM
- Application:
-
Battery, LED, IC
Supply Ability
- Supply Ability
- 100 Set/Sets per Quarter
Packaging & delivery
- Packaging Details
standard strongly export wooden case
- Port
shenzhen
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 20 To be negotiated
Product Overview

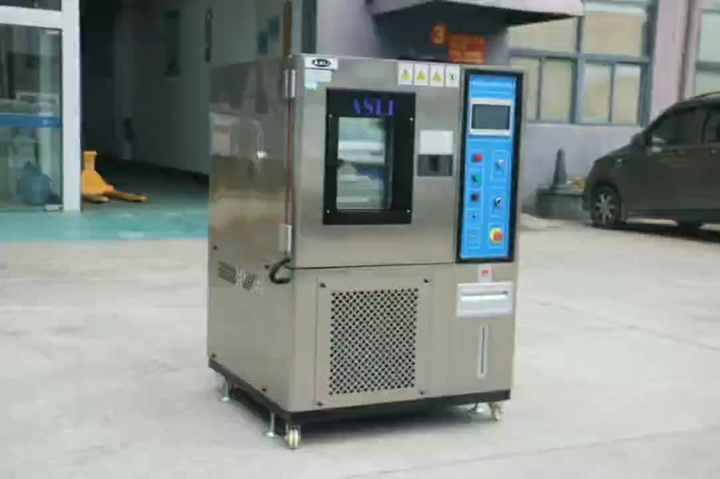

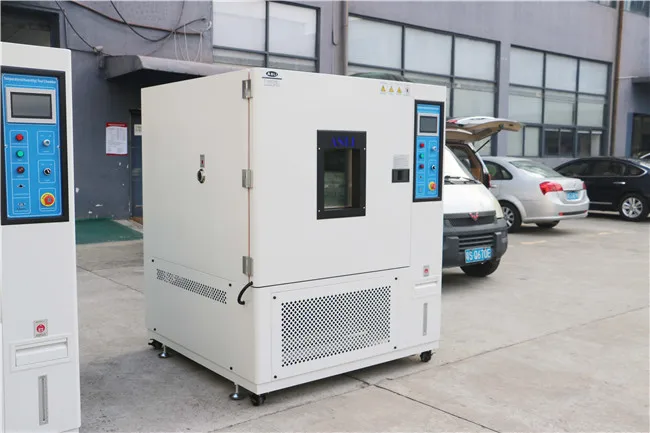

Temperature And Humidity Test Chamber Industrial Test Equipment
Temperature And Humidity Environmental Test Chamber is to provide high and low temperature and humidity constant, high temperature and humidity alternating test environment, it can accurately simulate low temperature, high temperature, high temperature and humidity, low temperature and humidity and other complex natural environment. Including refrigeration system, heating system, humidification, dehumidification, waterway system, air duct system, control system, system by safety protection device.
FEATURES AT A GLANCE
7” LCD controller with English interface
Inner made of SUS#304 stainless steel material
Meet all requirements for extreme testing and low temperature alternating
One access port (Dia.50mm)on the left side of chamber
USB date store and optional RS232
Viewing window
Sample holder
Inner made of SUS#304 stainless steel material
Meet all requirements for extreme testing and low temperature alternating
One access port (Dia.50mm)on the left side of chamber
USB date store and optional RS232
Viewing window
Sample holder
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Name
|
Temperature And Humidity Test Chamber Industrial Test Equipment
|
||||
|
1
|
Model
|
TH-408(A~F)
|
TH-800(A~F)
|
TH-1000(A~F)
|
||
|
2
|
Internal Dimension WxHxD(mm)
|
600x850x800
|
1000x1000x800
|
1000x1000x1000
|
||
|
3
|
External Dimension WxHxD(mm)
|
1200x1950x1350
|
1600x2000x1450
|
1600x2100x1450
|
||
|
4
|
Temperature Range
|
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 150℃
|
||||
|
5
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
|
||||
|
6
|
Control Accuracy of Temperature and Humidity
|
±0.5℃; ±2.5% R.H.
|
||||
|
7
|
Temperature Rising/ Falling Velocity
|
Temperature rising approx. 0.1~3.0℃/min ;
temperature falling approx. 0.1~1.0℃/min;
( Falling Min.1.5℃/min is optional) |
||||
|
8
|
Optional Accessories
|
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
|
||||
PRODUCT CONFIGURATION

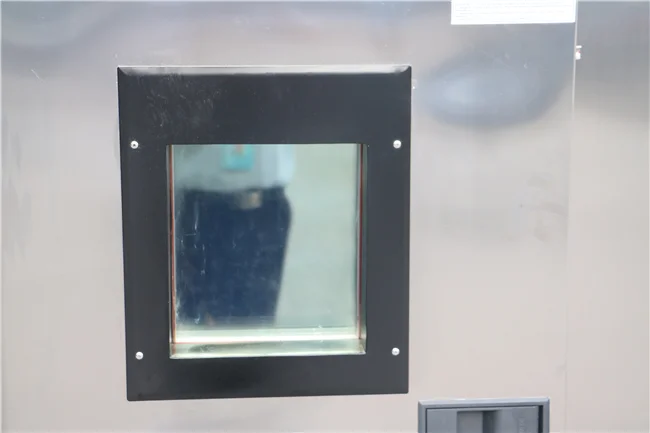

Viewing Window

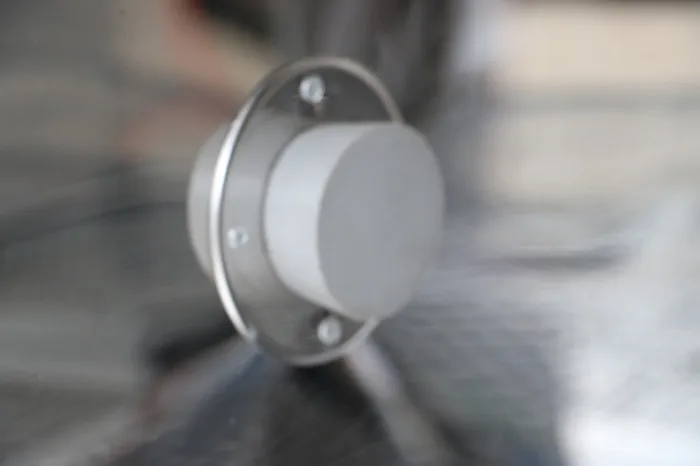

Test Hole

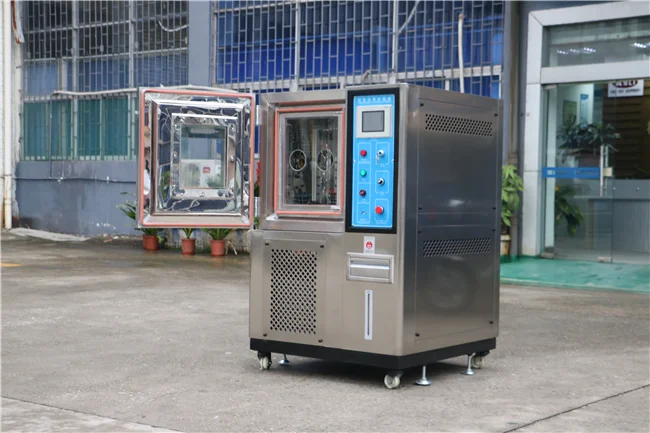

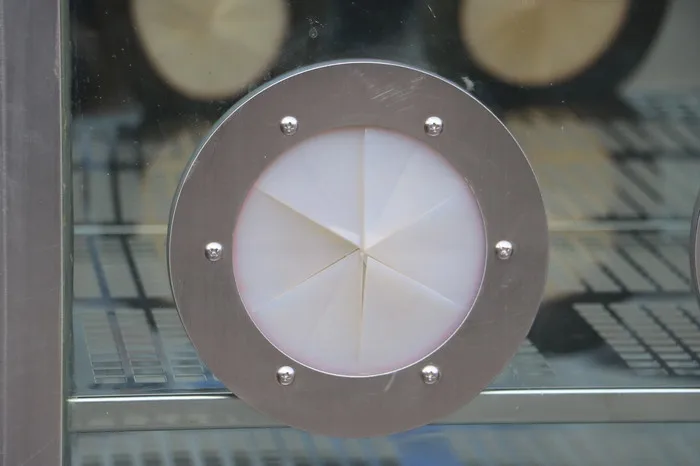

Glass Door with Operation Hole
