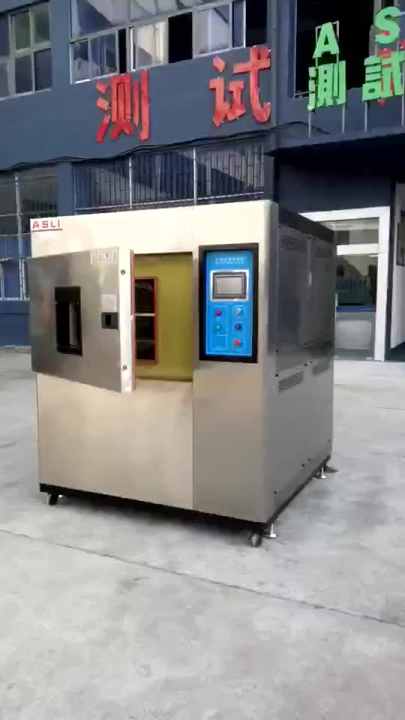

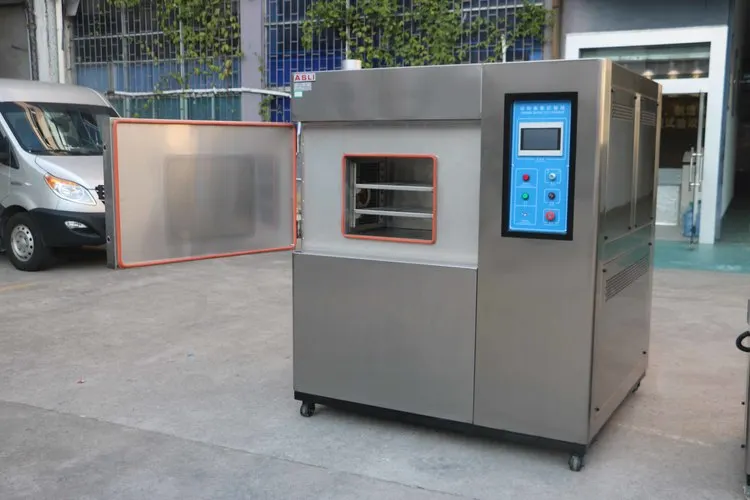

Temperature Shock Test Lab Test Equipment
Product Description
Temperature Shock Test Lab Test Equipment is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
Specification
|
Model
|
TS-49(A~C)
|
TS-80(A~C)
|
TS-150(A~C)
|
TS-252(A~C)
|
|||
|
Internal Dimension
WxHxD ( mm) |
400x350x350
|
500x400x400
|
600x500x500
|
700x600x600
|
|||
|
External Dimension
WxHxD (mm) |
1400x1800x1400
|
1550×1950 x1550
|
1600×2000 x1700
|
1700×2100 x1750
|
|||
|
Exposure Time of High / Low Temperature
|
Exposure Time of High Temperature: +60ºC ~ +150ºC (200ºC is Optional) 30Mins
Exposure Time of Low Temperature : -10ºC~Type A:-40ºC / Type B -55ºC / Type C -65ºC 30Mins
|
||||||
|
Temperature Range of Testing zone
|
Type A:-40 ºC~+150ºC ( 200ºC is Optional)
Type B:-55ºC ~+150ºC ( 200ºC is Optional )
Type C:-65ºC ~+150ºC ( 200ºC is Optional)
High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC |
||||||
|
Temperature of
Heat-Storing Slot / Heating Time |
RT~200ºC/About 45mins
|
||||||
|
Temperature of
Cool-storing Slot / Cooling Time |
RT~-75ºC/ About 100mins
|
||||||
|
Temperature Recovery Time /
Conversion Time |
≤5min/≤5sec
|
||||||
|
Internal and External Material
|
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated
|
||||||
|
Control Method
|
Programmable LCD touch screen controller
|
||||||
|
Security Protection Devices
|
Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator
high-pressure protective switch , failure warning system, electronic alarm |
||||||
Thermal Shock Testing chamber features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

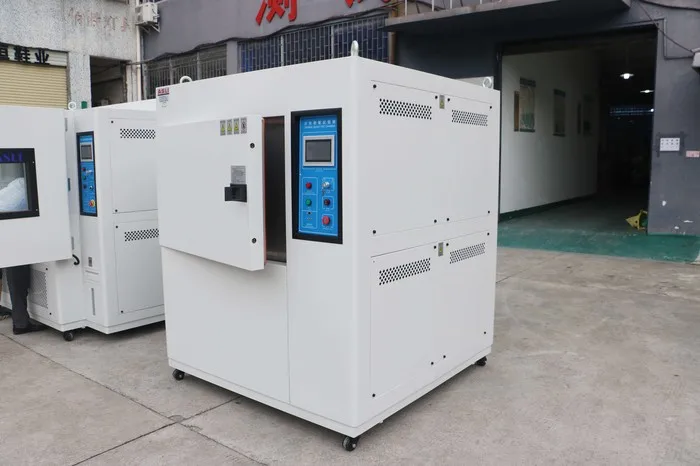

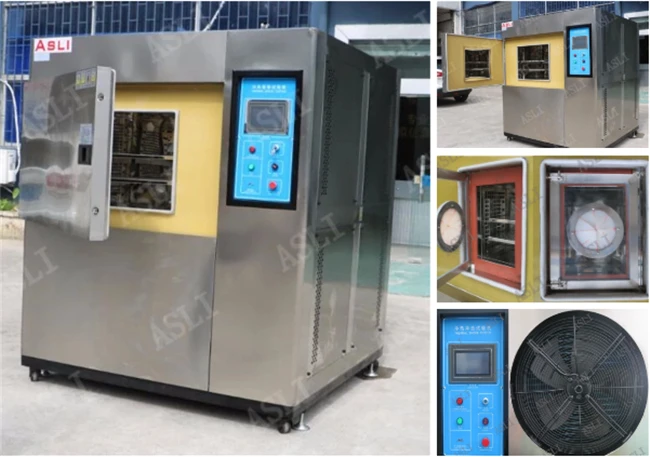

More Pictures for reference:
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine.Programmable Simulation Climatic 3-Zone Thermal Shock Test Chamber is our star products, and we had obtained the CE certification for this machine.
ASLI Main Products:

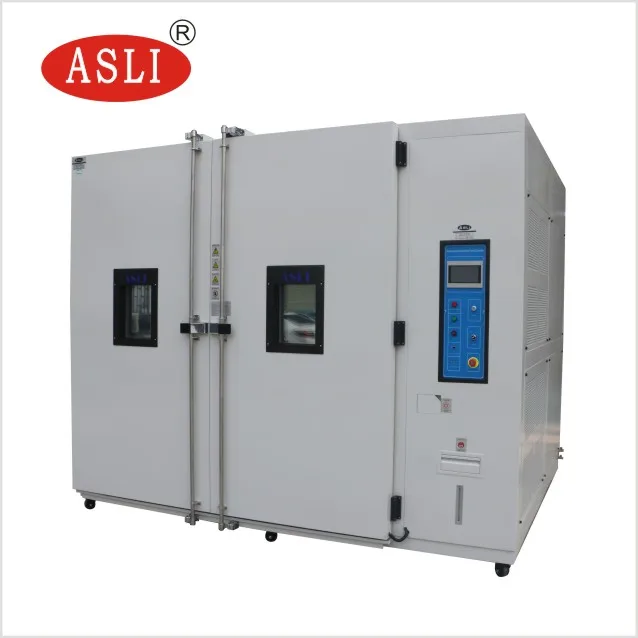

Walk in Climatic Chamber

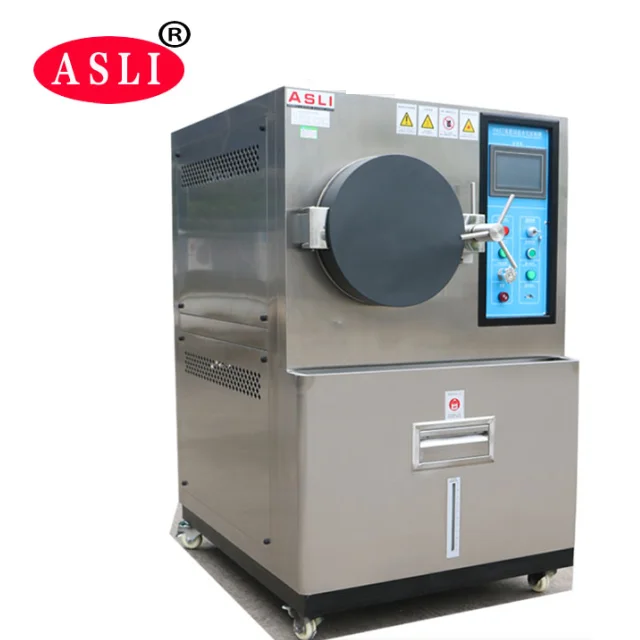

HAST Accelerated Aging Chamber
