Waterproof Tester IEC60529 Standard IPX1/2 Drip Box Test Equipment
- Warranty:
-
1 Year
- Customized support:
-
OEM, ODM
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
AUTOSTRONG
- Model Number:
-
AUTO-IPX12
- Power:
-
Electronic
- Product Name:
-
Drip Box Test Equipment
- orifice:
-
dia:0.4mm
- Oscillate angle:
-
±60°,±90°,±180
- Water flow pressure:
-
50~150kpa adjustable
- Waterproof rating:
-
IPX1/2
- standard:
-
IEC60529, IEC60598-1, IEC60335-1, IEC60745-1
- Power supply:
-
220V/50Hz
- Protection Device:
-
Leakage and non with
- Rain water:
-
50~150kpa adjustable
- Certification:
-
IECEE
- Supply Ability
- 10 Set/Sets per Month Drip Box Test Equipment
- Packaging Details
Drip Box Test Equipment Packed with Strong Wooden Case
- Port
Shenzhen
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 18 To be negotiated
Waterproof Tester IEC60529 Standard IPX1/2 Drip Box Test Equipment
Introduction:AUTOSTRONG Supply kinds of Rain Testing Chamber,which is strictly designed and manufactured according to IEC60529, IEC60598, IEC60335, IEC60034, It have eight levels from IPX1 to IPX8( IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8.)
Application:
It is widely used in the authentication test organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

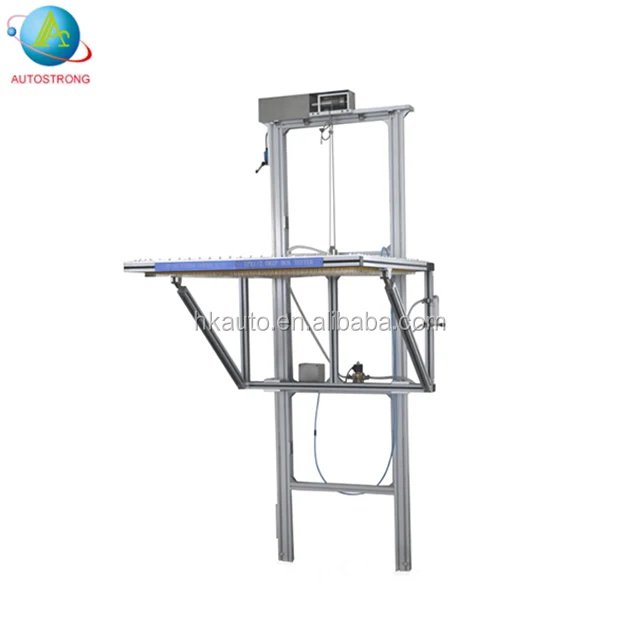

Drip Box(AUTO-IPX1/2): The drip box is for IPX1 and IPX2 drip test IEC60529.The diameter of drip hole is 0.4mm, distant of drip hole is 20mm, sample can be over 150kg with turntable.

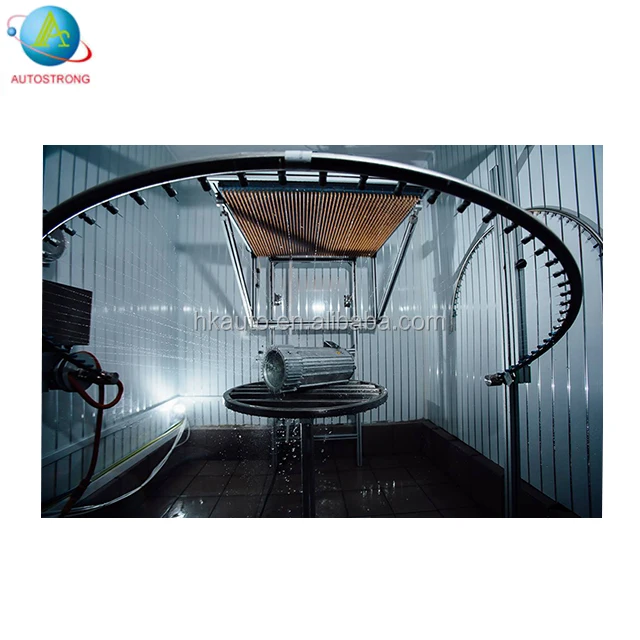

• Oscillation Tube Tester(AUTO-IPX3/4):Swing Pipe Water Spray Test Equipment: It is for IPX3 and IPX4 test, the semi-diameter of swing pipe is 1meter. IPX3 is 120degree and IPX4 is 180degree. The diameter of inside swing pipe is 0.4mm. The automatic sample rotating base diameter is 600mm and speed is 1~5rpm which controlled by PLC panel.

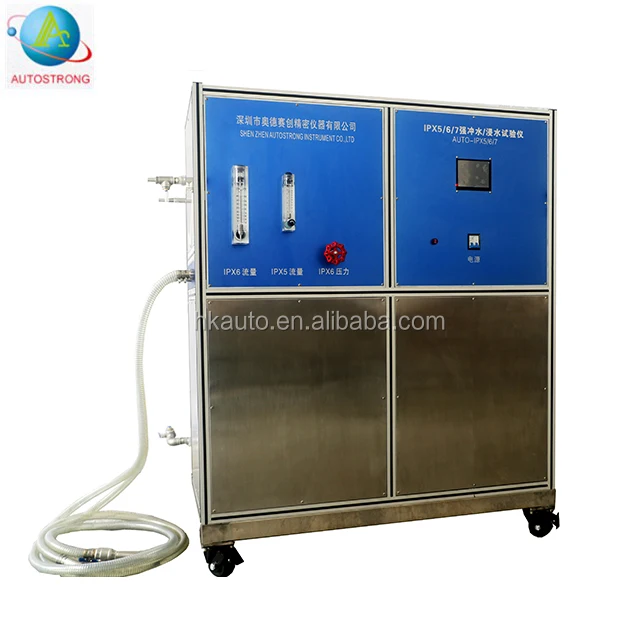

• Waterproof Jet Test Device(AUTO-IPX5/6):Waterproof Jet Test Device: With water supply device and jet nozzle diameter is 6.3mm(IPX5) and 12.5mm(IPX6). Diameter of hole is 6.3mm for IPX5 and 12.5mm for IPX6. The water speed is 12.5±0.626L/min for IPX55 and 100±5L/min for IPX6
• Immersion tank Waterproof test Device(AUTO-IPX7): It is for IEC60529 IPX7 test. The top of the water tank size is 1000x1000x1200mm. The below of water tank height is 500mm. The sample testing base is max 120kg. It includes two temperature channels meter and digital display.
• Immersion tank Waterproof test Device(AUTO-IPX8):It is for IEC60529 IPX8 test. It can measure 0~50m water depth. The water immersion size is diameter is 600mm and height is 1200mm. The compressive stress is 10 atmospheric pressures.
AUTOSTRONG(www.hkautostrong.com) are the leading testing equipment manuscript in China. We are professional manufacturer of laboratory and Industrial test equipmets for products safety application with headquarter in Kowloon HK and branch factory in SHEN ZHEN city. SHEN ZHEN Branch factory is over 3200 area,it besides SHEN ZHEN airport with very convenient transportation.
We are one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2015 Certification .
Main Products include:Glow wire tester, Needle flame tester, horizontal & vertical burning tester, tracking index tester, textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, salt spray test chamber , Constant Temperature and Humidity Test Equipment,building materials flammability tester, friction tester, test finger, test gauges, spring hammer, IPXX code dust & waterproof test equipment, Wire & cable testing machine, universal testing machine and other testing instruments.
1).We’re factory which specialized in testing equipment field for 10 years.
2).We’re ISO9001 certificated company.Every step is well controlled with checking report from raw material purchase to production and shipment.
3).Production: strictly designed and manufactured in accordance with international standards.
4).Experienced engineer team: more than 60 engineers from Germany,Hong Kong and China.
5). Full certificates: CE,ISO17025 Cabliration Certificate, ISO9001 International Quality Certification System, RoHs etc.
6).Fast delivery: within 10 working days after order confirmed.
7).Excellent package: strong wooden (plywood) box, no need to do fumigation.
8).Various transport: choose the most suitable way including by ocean/air freight/express.
Offering the best service and quality
1.How to choose the most suitable products?
Our professional team will give you the best suggestion,when you need some products to make the test,just be patiently to tell us the information about your test sample,the parameters your required.Our team may help you to find the best one.
2.Can payment term be changed?
Yes,it is negotiated,please just tell us your ideal payment.We may arrange as your requirements.
3.How can I make sure for your quality?
Don’t worry about that,we can also offer you the third party calibration as your requirements,all products can be sent to Metrology Institute.And also,our factory have pass ISO9001 and CE test.Also with the the calibration of CNAS,ILAC.
4.How to choose the Transportation Term?
Usually,we may according to your needs,we may choose the most rasonable freight,then to select for you.
5.How long does the warranty takes and what are the after sales services?
Usually,our warranty is one year,but also it can accordingly lasting as your requires.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
