X-Ray Inspection System for Gas Cylinder Welds

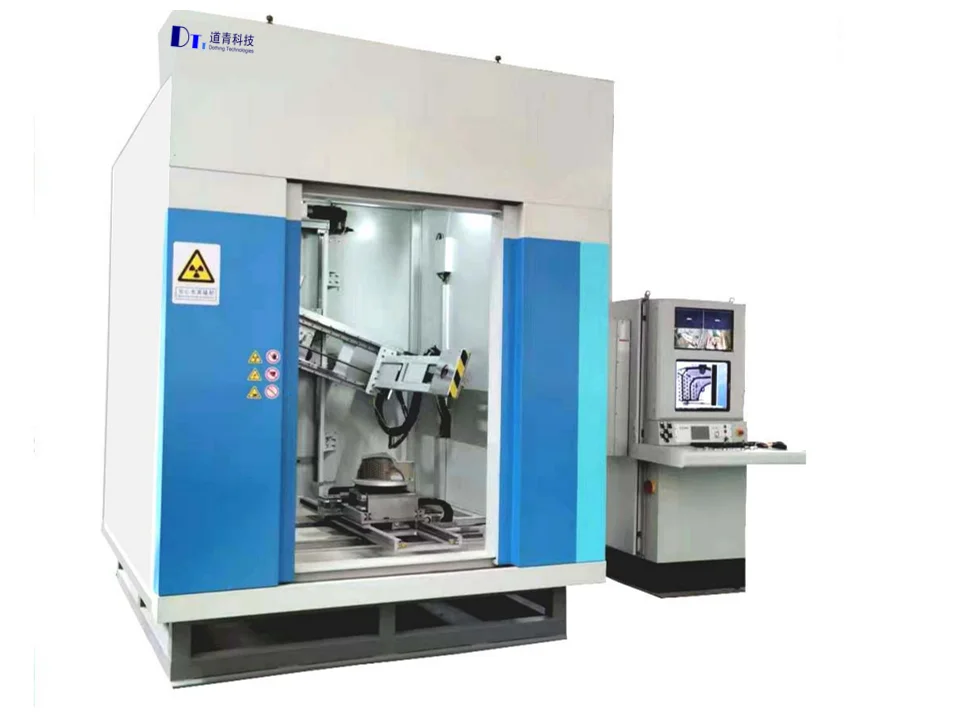

Product Overview

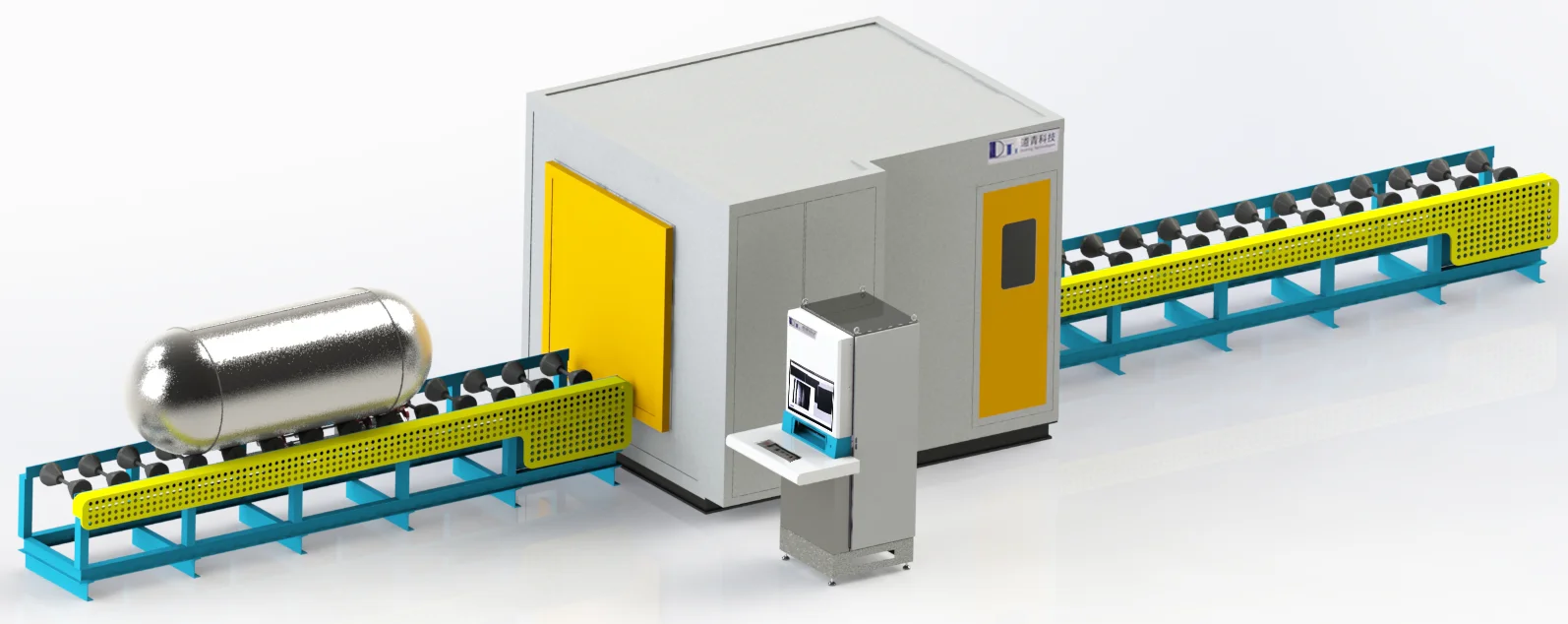

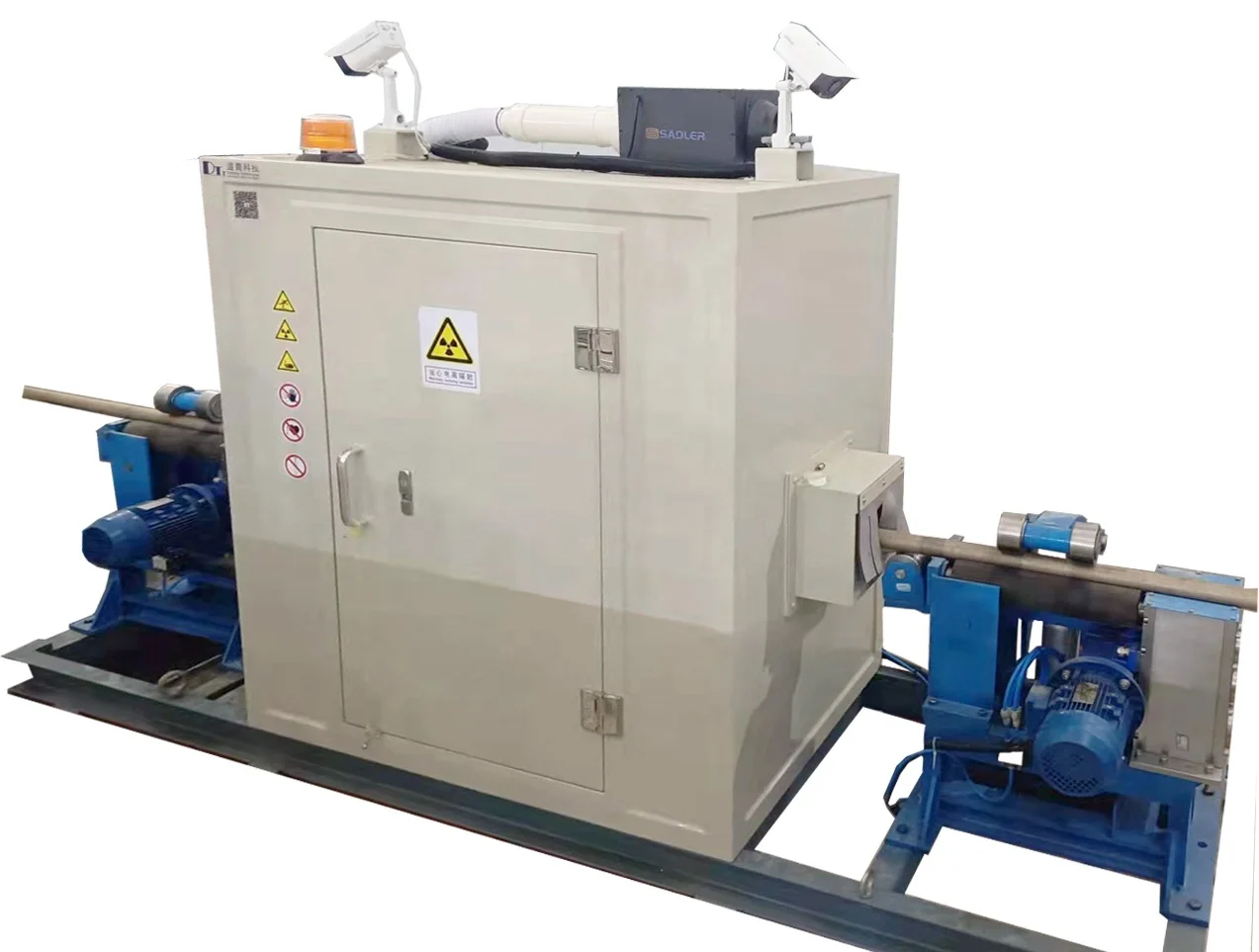

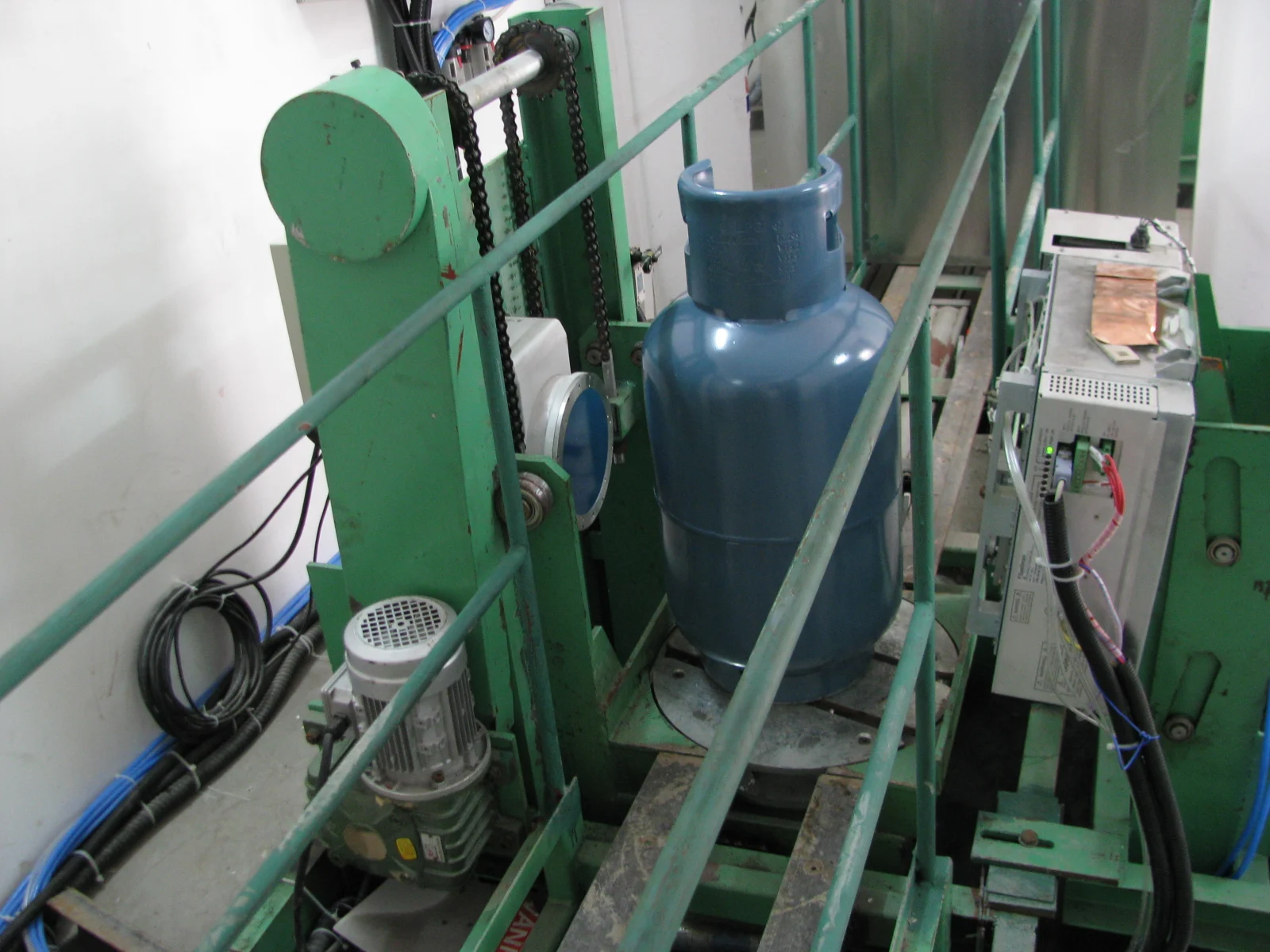

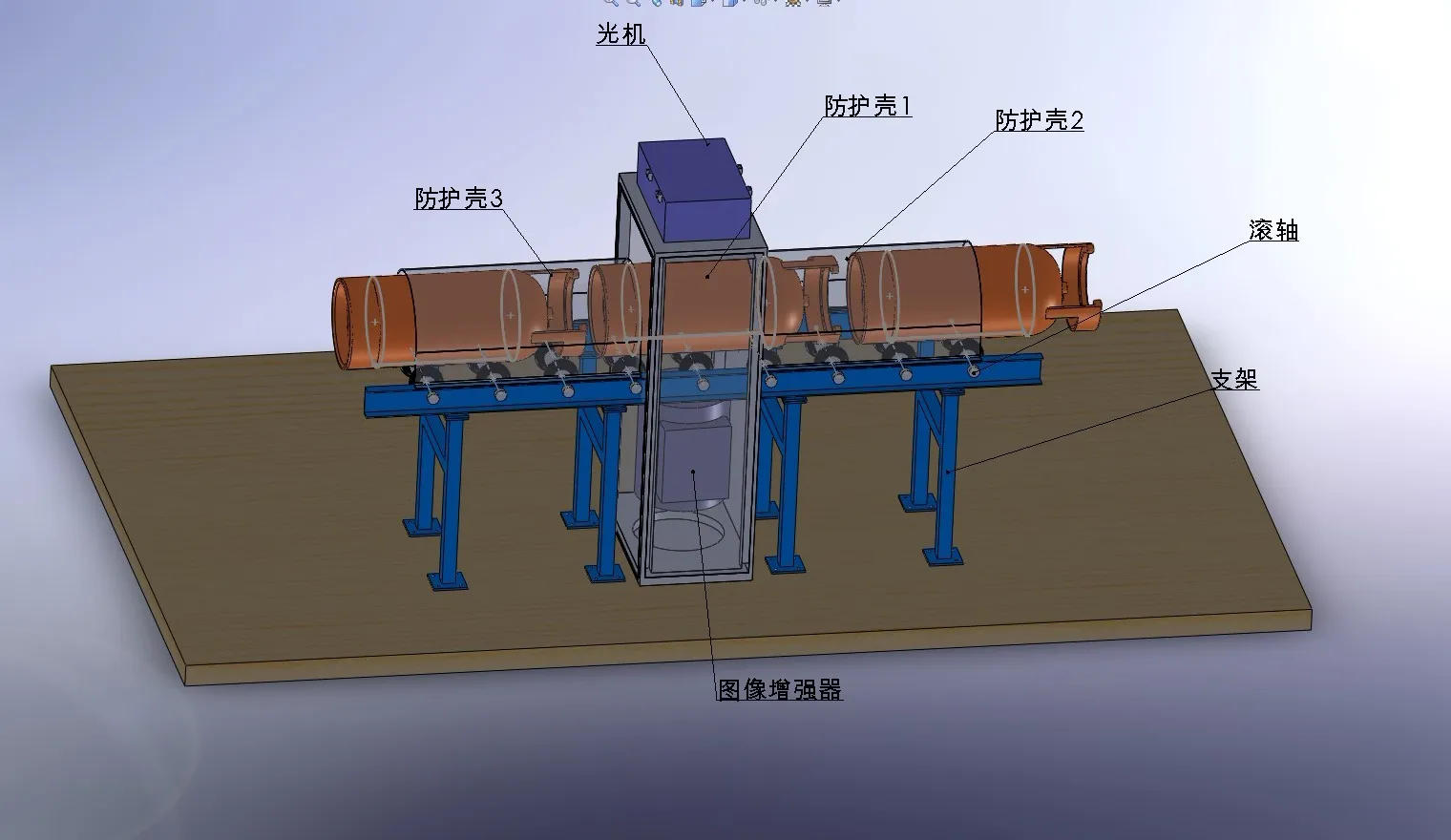

Welding of LPG or LNG cylinder X-ray Digital Radiograpy equipment

This equipment can be used for: φ 200mm- φ 600mm gas cylinder welds. Easy operation and automatic operation of equipment

FEATURES AT A GLANCE

WELDING DEFECT TESTING
DFFICIENT AND FAST TESTING
AUTOMATIC DEFECT IDENTIFICATION
NON STANDARD CUSTOMIZATION
COMPACT DIMENSIONSSAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Item	Data
model	DU201
Type of gas cylinder	PNG、Acetylene cylinde	PNG、LNG、Acetylene cylinder、Ammonia bottle
Single layer wall thicknessσ max	≤4.5mm	≤6mm
diameterØ	Ø200mm- Ø600mm	Ø200mm- Ø600mm
Imaging mode	double-wall single-ima	double-wall single-ima
Pipe rotation speed	Linear velocity 1-5 m/min	Linear velocity 1-5 m/min
Imaging resolution	≥3.2Lp/mm	≥3.8Lp/mm
Imaging detector	Image intensifier	Digital tablet
Input window	Ø 145mm	130mm×130mm
pixel	1024×1024	1024×1024@127μmspacing
Gray scale	4096(12bit）	65536(16bit）
fps/ms	30fps	30fps-60fps
X-ray source	DG160MX	DG200MX
Voltage	75kV-160kV	50kV-200kV
electric current	0-6mA	0-3mA
focus(IEC336-1)	0.4	0.5
Ray power	480W	500W
Console	1,200×1,000mm, 65kg	1,200×1,000mm, 65kg
Power Supply	1×220Vac,50Hz,3kVA	1×220Vac,50Hz,3kVA
