X-ray testing equipment for gas cylinder welds

Product Overview

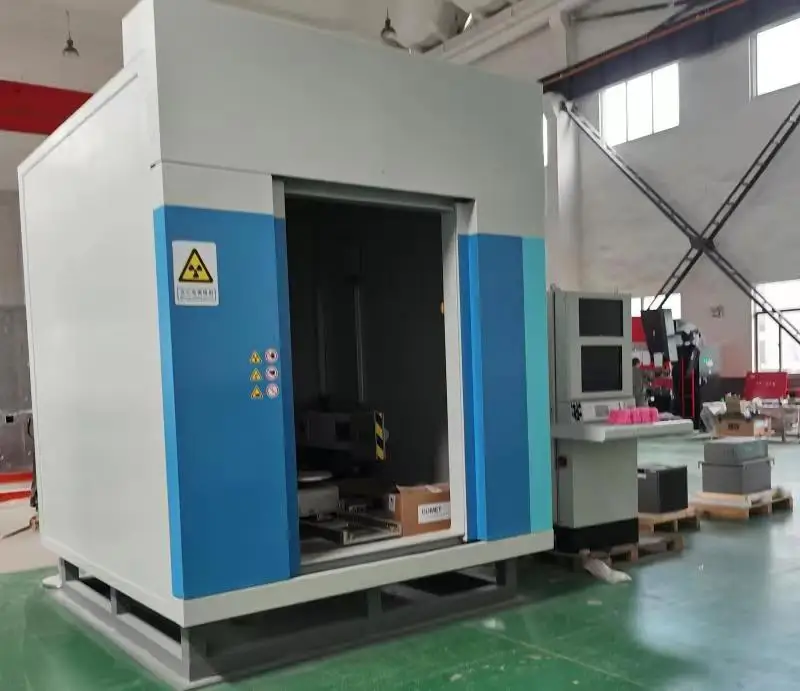

Welding of LPG or LNG cylinder X-ray Digital Radiograpy equipment

This equipment can be used for: φ 200mm- φ 600mm gas cylinder welds. Easy operation and automatic operation of equipment

FEATURES AT A GLANCE

WELDING DEFECT TESTING
DFFICIENT AND FAST TESTING
AUTOMATIC DEFECT IDENTIFICATION
NON STANDARD CUSTOMIZATION
COMPACT DIMENSIONSSAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE

Right elevation

Left elevation

Front elevation

00:00

PRODUCT SPECIFICATIONS

Item	Data
model	DU201
Type of gas cylinder	PNG、Acetylene cylinde	PNG、LNG、Acetylene cylinder、Ammonia bottle
Single layer wall thicknessσ max	≤4.5mm	≤6mm
diameterØ	Ø200mm- Ø600mm	Ø200mm- Ø600mm
Imaging mode	double-wall single-ima	double-wall single-ima
Pipe rotation speed	Linear velocity 1-5 m/min	Linear velocity 1-5 m/min
Imaging resolution	≥3.2Lp/mm	≥3.8Lp/mm
Imaging detector	Image intensifier	Digital tablet
Input window	Ø 145mm	130mm×130mm
pixel	1024×1024	1024×1024@127μmspacing
Gray scale	4096(12bit）	65536(16bit）
fps/ms	30fps	30fps-60fps
X-ray source	DG160MX	DG200MX
Voltage	75kV-160kV	50kV-200kV
electric current	0-6mA	0-3mA
focus(IEC336-1)	0.4	0.5
Ray power	480W	500W
Console	1,200×1,000mm, 65kg	1,200×1,000mm, 65kg
Power Supply	1×220Vac,50Hz,3kVA	1×220Vac,50Hz,3kVA
