XXQ-2505 non destuctive testing industrial radiography inspection testing equipment
- Warranty:
-
1 years
- Customized support:
-
OEM, ODM, OBM
- Place of Origin:
-
Liaoning, China
- Brand Name:
-
Xinli
- Model Number:
-
XXQ-2505
- Power:
-
Electronic
- Product name:
-
Industrial NDT Testing Equipment X-ray 250kv for Weld Inspection
- Application:
-
Industrial X-Ray Testing
- power supply:
-
AC220V±10%,50HZ
- Output voltage:
-
150-250KV
- Radiation angle:
-
40°
- Max. penetration:
-
40mm
- Power capacity:
-
3.5KW
- focal size:
-
2.0×2.0
- X ray generator size(mm):
-
320x320x630
- X ray generator weight (kg:
-
31
- Supply Ability
- 10000 Set/Sets per Month

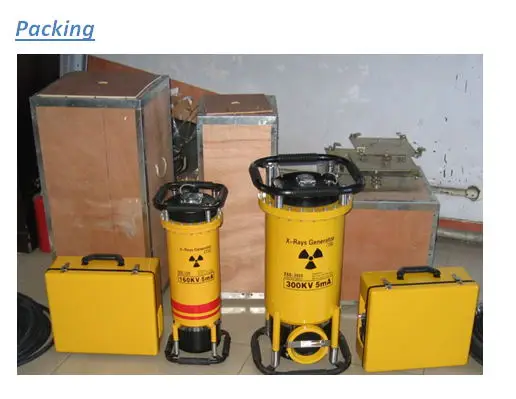

- Packaging Details
1.outside package is carton case in line with export standard
2.internal packing is wrapped with spring material and filled with foams and sponges
3.is possible to customize according to client’s request
- Port
dalian
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 7 To be negotiated
Introduction

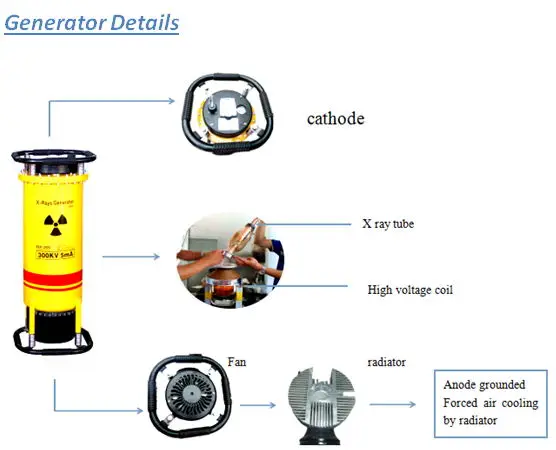

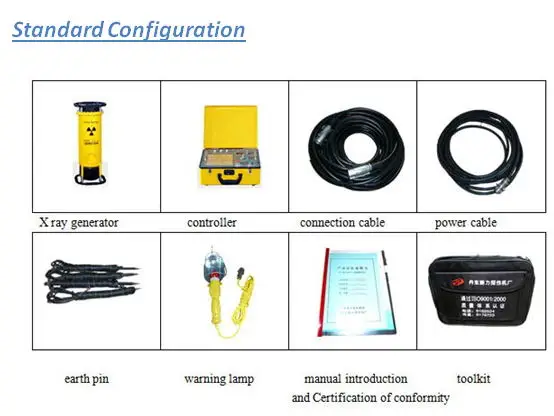

XXG-2505 Industrial portable X-ray machine is made up by X-ray generator,controller,connecting cable,and accessories.It is used in machinery manufacturing,oil pipe, chemical, etc
Character:
- Light weight, portable, easy to take and operate.
- Time delay function protect operator away from radiation
- X-ray generator have over-temperature protection
- Radiating time to cooling time 1:1
The parameters
|
XXQ-2505 |
|
|
Max. penetration(mm) |
40 |
|
Power supply |
AC220V±10%,50HZ |
|
Power capacity |
3.5KW |
|
Output voltage |
150-250KV |
|
Output current |
5mA |
|
Focus size(mm) |
2.0×2.0mm |
|
Ray radiation angle |
40° |
|
Sensitivity |
1.8% |
|
Tube |
Ceramic tube |
|
Duty cycle |
50% |
|

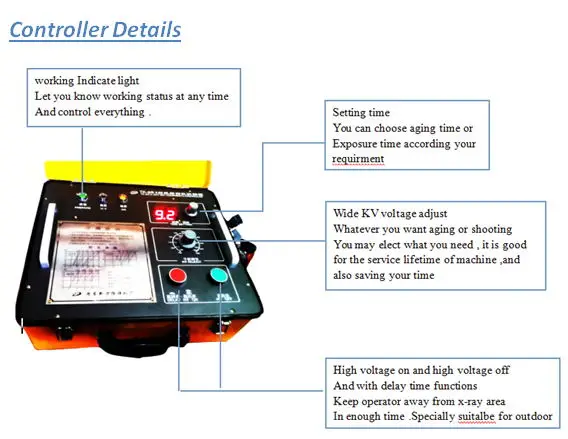

X ray controller type |
TX-2 |
|
X ray controller dimension( mm) |
360×300×150 |
|
X ray controller weight(Kg) |
11 |
|
X ray generator size(mm) |
320×320×630 |
|
X ray generator weight (kg) |
31 |
|
Cooling way |
Air cooling |
|
Isolation method |
SF6 gas |
