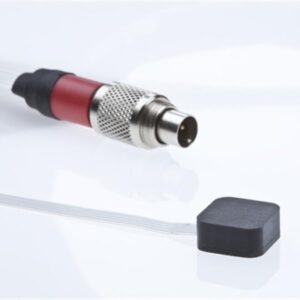

The tiny cuvetteMIXdrive 1 stirring drive is remote controlled by the MIX Control eco. Thanks to this functional separation of stirring drive and control unit and thanks to the highly flexible foil cable, which is only 0.3 mm thick, cuvetteMIXdrive 1 can easily be integrated directly in, for instance, analytical devices or the cuvette holder of photometers. This allows simultaneous measuring and stirring. The cuvetteMIXdrive 1 has an integrated M1.4 threaded bore for attaching the stirring drive There is also the option to control 2, 4, 6, or 8 cuvetteMIXdrives 1 simultaneously and parallel through a MIXcontrol 20 and a distriBOX 4 or 8. Specifications Specifications: Type cuvetteMIXdrive 1 Stirring points 1 Stirring volume/stirring point 1 - 25ml Stirring power (max) 10W Material housing PUR Permitted operation conditions - basic version -10 up to +50?C in air, up to +50?C in water submerged Operating voltage (max) 48 VDC Dimensions (WxDxH) 12.5 x 12.5 x 6mm Protection category IP68 Weight (gross) 0.14kg Comparison: Type CuvetteMIXdrive MIXdrive 1 XS MIXdrive 1 eco MIXdrive 1 Stirring points 1 1 1 1 Stirring volume / stirring point 1 - 25ml 1 - 1,000ml 1 - 3,000ml 1 - 10,000ml Stirring power (max.) 10W 10W 10W 20W Material housing PUR Stainless steel Stainless Steel Stainless steel Permitted operation conditions - Basic version -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged Permitted operation conditions - HT version NA up to +200?C in air, up to +95?C in water submerged up to +200?C in air, up to +95?C in water submerged up to +200?C in air, up to +95?C in water submerged Operating voltage (max) 24 VDC 48 VDC 48 VDC 48 VDC Dimensions (WxDxH) 12.5 x 12.5 x 6mm 48 x 48 x 18mm 120 x 120 x 35mm 180 x 180 x 38mm Protection category IP68 IP68 IP68 IP68 Weight (gross) 0.14kg 0.36kg 1.6kg 3.5kg Request Information... For more information on this product please click the Request information button below and we will get back to you as soon as we can. Request information Alternatively, a consultation visit from one of our highly experienced product specialists is available for this range. Typically our specialist will be able to go through the following aspects with you to help you make the right choices and be able to deliver them on time and and on budget. Your product or service requirements Performance criteria Budget constraints Site access Project timeframes Services available Environmental factors Please click the Request Consultation button below and we will get back to you as soon as we can. Request Information The links above will take you to our request information page which will forward your enquiry to our team. Please provide as much detail as possible so that we can get back to you with the right information. We normally aim to get back to you same day or within 24 hours on weekdays. If you enquiry is more urgent please call our support team on 01954 233 120 Feefo Reviews Related Blogs 2Mag External Controllers and Stirrers 2Mag have a wide range of magnetic stirrers, with some having an internal controller, and others requiring an external controller. The stirrers that require an external controller can be submersed in water baths, up to 95oC. These stirrers come with a single stirring point, or multiple stirring points. Picture of 2mag stirrers and controllers 2mag external controllers -MIXcontrol Ther...2 years ago Which disposable cuvettes are Acetone resistant? Disposable cuvettes are used in many labs where cross contamination of samples is a concern or where the cost of quartz or glass cuvettes is too high. Some disposable plastic cuvettes are not compatible with many common solvents, but the UV-Cuvette range from Brand offers excellent chemical compatibility, as well as high quality, in a disposable cuvette. [caption id="attachment_7087" alig...8 years ago Product Attachments 2mag_Magnetic_Stirrers_brochure (4.71 MB) More Information More Information ColourBlack Max Volume Litres0.005
