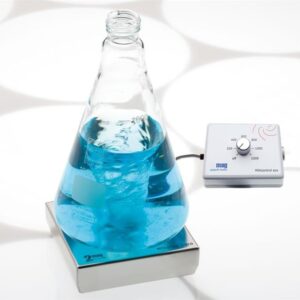

Designed with a remote control unit the MIXdrive can be teamed up with a MIXcontrol 20,40 or eco to provide a stirrer for every application.1, 6, 15 or even 60 stirring positions, 100% maintenance-free and wear-free by inductive 2mag Magnetic Drive concept for powerful mixing of solutions, 100% synchronized speeds, jerk-free stirring even at low speeds.Fully encapsulated and hermetically sealed stainless steel housing, IP68, water, dust and germ-proof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water and oil baths, suitable for use in CO2 incubators and ovens.2 different temperature versions are available;BASIC VERSION - up to +50 ?C in air or submersed in waterbaths and down to -10 ?C in chilled waterbathsHT VERSION - up to +95 ?C and down to -30 ?C submerged in water baths, up to +200 ?C in ovens, individual dimensions on request.Please note - if you are using the MIXdrive magnetic stirrer in a bath do not use silicone oil as the bath fluid, as this will damage the seals of the stirrer.3 years warranty on material and manufacturing. Developed and made in Germany. Specifications Specifications: Type Mixdrive 1 eco Stirring points 1 Stirring volume/stirring point 1 - 3,000ml Stirring power (max) 10W Material housing Stainless steel Permitted operation conditions - basic version -10 up to +50?C in air, up to +50?C in water submerged Permitted operation conditions - HT version up to +200?C in air, up to +95?C in water submerged Operating voltage (max) 48 VDC Dimensions (WxDxH) 120 x 120 x 35mm Protection category IP68 Weight (gross) 1.6kg Comparison: Type CuvetteMixdrive MIXdrive 1 XS MIXdrive 1 eco MIXdrive 1 Stirring points 1 1 1 1 Stirring volume / stirring point 1 - 25ml 1 - 1,000ml 1 - 3,000ml 1 - 10,000ml Stirring power (max.) 10W 10W 10W 20W Material housing PUR Stainless steel Stainless Steel Stainless steel Permitted operation conditions - Basic version -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged -10 up to +50?C in air, up to +50?C in water submerged Permitted operation conditions - HT version NA up to +200?C in air, up to +95?C in water submerged up to +200?C in air, up to +95?C in water submerged up to +200?C in air, up to +95?C in water submerged Operating voltage (max) 24 VDC 48 VDC 48 VDC 48 VDC Dimensions (WxDxH) 12.5 x 12.5 x 6mm 48 x 48 x 18mm 120 x 120 x 35mm 180 x 180 x 38mm Protection category IP68 IP68 IP68 IP68 Weight (gross) 0.14kg 0.36kg 1.6kg 3.5kg Request Information... For more information on this product please click the Request information button below and we will get back to you as soon as we can. Request information Alternatively, a consultation visit from one of our highly experienced product specialists is available for this range. Typically our specialist will be able to go through the following aspects with you to help you make the right choices and be able to deliver them on time and and on budget. Your product or service requirements Performance criteria Budget constraints Site access Project timeframes Services available Environmental factors Please click the Request Consultation button below and we will get back to you as soon as we can. Request Information The links above will take you to our request information page which will forward your enquiry to our team. Please provide as much detail as possible so that we can get back to you with the right information. We normally aim to get back to you same day or within 24 hours on weekdays. If you enquiry is more urgent please call our support team on 01954 233 120 Feefo Reviews Related Blogs 2Mag External Controllers and Stirrers 2Mag have a wide range of magnetic stirrers, with some having an internal controller, and others requiring an external controller. The stirrers that require an external controller can be submersed in water baths, up to 95oC. These stirrers come with a single stirring point, or multiple stirring points. Picture of 2mag stirrers and controllers 2mag external controllers -MIXcontrol Ther...2 years ago Stir different samples at different speeds on one unit... Torrey Pines Scientific Inc has launched a range of multi-position analogue magnetic stirrers with 5 or 9 positions which can be independently controlled for maximum flexibility in one unit. They are available as a magnetic stirrer or as a hotplate stirrer. [caption id="attachment_6063" align="aligncenter" width="300"] 9 place magnetic stirrer with independent control of each position's stir...9 years ago Product Attachments 2mag_Magnetic_Stirrers_brochure (4.71 MB) More Information More Information ColourBlack Max Volume Litres3
