Description
Special request
Special request – flat rate for air humidity transmitter series
per order – irrespective of the quantity ordered
Make: Schaller
Product code: 12011
Description

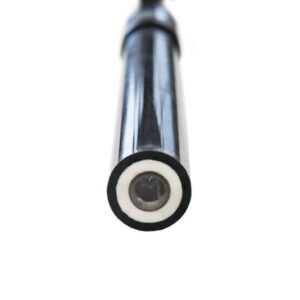

FLAT SURFACE pH ELECTRODE
Flat Surface pH probe is useful for reading the pH of small amounts of liquid, food products, and other surface pH measurements. The probe comes with a 40” cable and works with all Sper Scientific pH Meters, as well as any others, with a standard BNC connector.
The probe measures the pH of a solution. This probe has a flat surface and is commonly used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, or skin. It features a single-junction electrode for general-purpose applications. The junction is sealed for low maintenance use and is easy to clean.
Flat-surface, pH electrode, with an epoxy body, and 0-13 pH range.
Has a BNC-connected combination reference and measuring cell, for ease of use and to provide tight coaxial cable connections.
Used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, or skin.
Low maintenance use, and is easy to clean.
6 month warranty
Description
FLEXIBLE CLAMPS F-1 (38cm)
Clamp
C-4
C-5
C-6
C-7
F-1
F-2
F-3
F-4
Rated current
1000 A AC
1000 A AC
1400 A DC
10 A AC
100 A AC
3000 A AC
Max. overload current
1200 A AC
1000 A AC
3000 A DC
20 A AC
100 A AC
10k A AC
Minimal
measurable current
100 mA
500 mA
10 mA
20 mA
1 A
Frequency
30 Hz…10 kHz
Dc…5 kHz
40 Hz…10 kHz
40 Hz…1 kHz
40 Hz…10 kHz
Input signal level
1 mV / 1 A
1 mV / 1 A
100 mV / 1 A
5 mV / 1 A
38,8 μV / 1 A
Max. diameter
of measured cord
52 mm
39 mm
20 mm
24 mm
360 mm
235 mm
120 mm
630 mm
Open clamp length
—
—
—
—
120 cm
80 cm
45 cm
200 cm
Minimal
basic accuracy
≤ 0,5%
≤ 1,5%
≤ 1%
0,5%
1%
Battery power supply
—
+
—
—
—
Lead length
2,2 m
2,2 m
2,2 m
3 m
2,2 m
Measurement category
IV 300 V
IV 300 V
IV 300 V
III 300 V
IV 600 V
Optional accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr, PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description
FLEXIBLE CLAMPS F-2 (25cm)
Clamp
C-4
C-5
C-6
C-7
F-1
F-2
F-3
F-4
Rated current
1000 A AC
1000 A AC
1400 A DC
10 A AC
100 A AC
3000 A AC
Max. overload current
1200 A AC
1000 A AC
3000 A DC
20 A AC
100 A AC
10k A AC
Minimal
measurable current
100 mA
500 mA
10 mA
20 mA
1 A
Frequency
30 Hz…10 kHz
Dc…5 kHz
40 Hz…10 kHz
40 Hz…1 kHz
40 Hz…10 kHz
Input signal level
1 mV / 1 A
1 mV / 1 A
100 mV / 1 A
5 mV / 1 A
38,8 μV / 1 A
Max. diameter
of measured cord
52 mm
39 mm
20 mm
24 mm
360 mm
235 mm
120 mm
630 mm
Open clamp length
—
—
—
—
120 cm
80 cm
45 cm
200 cm
Minimal
basic accuracy
≤ 0,5%
≤ 1,5%
≤ 1%
0,5%
1%
Battery power supply
—
+
—
—
—
Lead length
2,2 m
2,2 m
2,2 m
3 m
2,2 m
Measurement category
IV 300 V
IV 300 V
IV 300 V
III 300 V
IV 600 V
Optional accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr, PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description
FLEXIBLE CLAMPS F-3 (14cm)
Clamp
C-4
C-5
C-6
C-7
F-1
F-2
F-3
F-4
Rated current
1000 A AC
1000 A AC
1400 A DC
10 A AC
100 A AC
3000 A AC
Max. overload current
1200 A AC
1000 A AC
3000 A DC
20 A AC
100 A AC
10k A AC
Minimal
measurable current
100 mA
500 mA
10 mA
20 mA
1 A
Frequency
30 Hz…10 kHz
Dc…5 kHz
40 Hz…10 kHz
40 Hz…1 kHz
40 Hz…10 kHz
Input signal level
1 mV / 1 A
1 mV / 1 A
100 mV / 1 A
5 mV / 1 A
38,8 μV / 1 A
Max. diameter
of measured cord
52 mm
39 mm
20 mm
24 mm
360 mm
235 mm
120 mm
630 mm
Open clamp length
—
—
—
—
120 cm
80 cm
45 cm
200 cm
Minimal
basic accuracy
≤ 0,5%
≤ 1,5%
≤ 1%
0,5%
1%
Battery power supply
—
+
—
—
—
Lead length
2,2 m
2,2 m
2,2 m
3 m
2,2 m
Measurement category
IV 300 V
IV 300 V
IV 300 V
III 300 V
IV 600 V
Standard accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr
Optional accessories for PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description
FLEXIBLE CLAMPS F-4
Clamp
C-4
C-5
C-6
C-7
F-1
F-2
F-3
F-4
Rated current
1000 A AC
1000 A AC
1400 A DC
10 A AC
100 A AC
3000 A AC
Max. overload current
1200 A AC
1000 A AC
3000 A DC
20 A AC
100 A AC
10k A AC
Minimal
measurable current
100 mA
500 mA
10 mA
20 mA
1 A
Frequency
30 Hz…10 kHz
Dc…5 kHz
40 Hz…10 kHz
40 Hz…1 kHz
40 Hz…10 kHz
Input signal level
1 mV / 1 A
1 mV / 1 A
100 mV / 1 A
5 mV / 1 A
38,8 μV / 1 A
Max. diameter
of measured cord
52 mm
39 mm
20 mm
24 mm
360 mm
235 mm
120 mm
630 mm
Open clamp length
—
—
—
—
120 cm
80 cm
45 cm
200 cm
Minimal
basic accuracy
≤ 0,5%
≤ 1,5%
≤ 1%
0,5%
1%
Battery power supply
—
+
—
—
—
Lead length
2,2 m
2,2 m
2,2 m
3 m
2,2 m
Measurement category
IV 300 V
IV 300 V
IV 300 V
III 300 V
IV 600 V
Description
Flexible High Temperature K-Type Thermocouple Probe
The HI766F is a K-type thermocouple probe with a flexible sheath designed for use with a thermocouple thermometer. A cable extends 1 m (3.3′) from the end of the sensor to the thermocouple connector with the meter; the HI766F does not incorporate a handle. The pliable stainless steel probe allows users to obtain highly accurate readings of a variety of high-temperature surfaces.
Measures up to 1100°C (2000°F)
4 second response time
AISI 316 stainless steel
The Flexible High Temperature K-Type Thermocouple Probe – HI766F is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766F flexible sheath construction offers a speedy 4-second response for a temperature reading. With a strong, corrosion-resistant, AISI 316 stainless steel construction, this probe is able to measure extremely hot surfaces up to 1100°C (2000°F).
Description
Mounting Specification
The Mounting Brackets come in two versions: Model 48002 Fixed System complete with a sturdy stand, vertical support bar, parallel support bar and two movable supports to hold the Dry AIr Guns or any other blow-off product from an air knive or amplifier to jets and nozzles. The compressed air is fed in at the bottom of the support with hoses (supplied with the system) feeding the blow-off units. Model 48003 Adjustable System is the same as the above except for the adjustable parallel support bar for totally variable support adjustments to aim the blow-off units wherever they need to be. This simple design allows for tremendous portability and flexibility of use for many blow-off applications.
Description

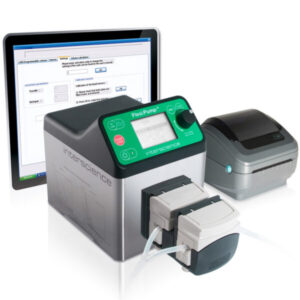

FlexiPump Pro
Model: Ref. 562 000
Dose volume: from 50 µL to 99.9 L
Manufacturer: INTERSCIENCE
FlexiPump Pro is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface. Traceability is guaranteed by printer and USB connection.
Features of FlexiPump Pro
Double pump head with 6 rollers:
low pulsation for higher accuracy and flow rate
Delivered with 2 split dispensing assemblies (3.2 and 6.4 inner diameter tubes)
Flow rate up to 2.5 L/min
Full traceability thanks to printer and USB connection
1. DESIGNED FOR MICROBIOLOGISTS
Select between 3 dispensing modes and 32 programs with the digital control screen
Rotating button for easy navigation and program settings
Adapted to several dispensing modes with the handy gun*
2. PRECISE FLOW CONTROL
Up to 1% precision
Dispenses liquid from 50 µL to 99 L
Flow rate up to 2.5L/min
Contamination free: entire dispensing assembly is autoclavable together with bottle
FlexiPump Pro typical precision with 3.2 mm inner diameter tube:
9 mL: 0.9%
18 mL: 0.5%
225 mL: 0.4%
In compliance with ISO 6887-1 and ISO 7218 standards
3. EASY CALIBRATION
Step-by-step guiding instructions on screen
Calibration possible with any user’s chosen volume
Can be done quickly by anyone in the lab
4. 3 DISTRIBUTION MODES
Continuous
Dose (Predetermined volume)
Multi-dose (Predetermined volume, with a pause between each dose)
5. USER-FRIENDLY
Compact: only 16 cm wide
Improved dispensing control with the handy gun* and electronic start button
Smart magnetic handy gun* holder for easy storage
6. TRACEABILITY
Output of dispensing and calibration data (time, date and operator name) to trace batches
Data can be printed (printer in option) or saved on a computer without any software (USB connection)
7. MAINTENANCE FREE
High quality Watson Marlow pump heads
Powerful stepping motor with no wearing parts
Heavy duty polycarbonate top shell and durable stainless steel casing
8. HANDY GUN* FOR EASY DISPENSING
Can be held in 3 positions (pen, mouse or gun) for tubes, Petri dishes, bottles and larger containers
Improves dispensing control with the electronic Start button
PRODUCT SHOW
Description
PRODUCT DESCRIPTION

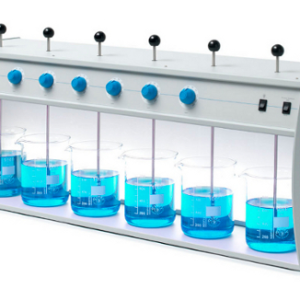

Flocculators with independent positions that allow standard conditions to be adopted for jar test, that are the basic requirement for reproducible results.
Independent Control
Independently selectable speeds 10-15-30-45-60-90-120-150-200-300 rpm
Same product can be submitted to different conditions in parallel
Reliable and repeatable results from VELP stirring quality
Precise speed from an electronically controlled DC gear motor
Versatile Operation
Choice of 4- or 6-place models
FC 4S, 4-position jar tester
FC 6S, 6-position jar tester
Speed can be changed during the run
Illuminated back panel to simplify sample observation
Stirring rods adjustable in height without tools
Robust Design
Strong resistance to chemical and mechanical corrosion
Recommendations
Select the accessories that match your requirements
GENERAL FEATURES
Construction material:
epoxy painted metal structure
Models:
FC4S 4 positions
FC6S 6 positions
Back panel:
disconnectable illuminated
Stainless steel stirring rods:
adjustable in height by a self blocking chuck
Pluriselector:
settable individual speed for each rod
Power:
FC4S 18 W
FC6S 23 W
Weight:
FC4S 12.5 kg (27.5 lb)
FC6S 18 kg (39.6 lb)
Dimensions (WxHxD):
FC4S 645x347x260 mm (25.4×13.7×10.2 in)
FC6S 935x347x260 mm (36.8×13.7×10.2 in)
PERFORMANCE
Speed selector settable at:
10 – 15 – 30 – 45 – 60 – 90 -120 – 150 – 200 – 300 rpm
Independent Positions
FC4S and FC6S, 4- or 6- position Floc Tester, permits changing of the speed during operation, up to 300 rpm.
Settable individual speed for each rod means thatevery single position is independent for the others.
An illuminated back panel simplifies the observation of the samples, whilst height adjustment option for the stirring blades during operation increases its capabilities.
What is JAR TESTING?
Jar testing is a pilot-scale test of the treatment chemicals used in a particular water plant.
In few words, it simulates the coagulation/flocculation process in a water treatment plant, helping the operator in the determination of the right amount of treatment chemicals, and, thus, in improving the
plant’s performance.
Jar testing entails adjusting the amount of chemicals and their sequence in which they are added. The sample requires to be stirred so that the formation, development, and settlement of floc can be watched just as it would be in the fullscale treatment plant.
The operator then performs a series of tests to compare the effects of different amounts of flocculation agents at different pH values to determine the right size floc.
Few operations are required for a correct test:
For each water sample, usually raw water, a number of beakers (jars) are filled with the same amounts of water sample
Each beaker is treated with different doses of chemical; other parameters may be altered besides dosage, including chemical types, mixing rate, aeration level/time, filtration type, etc.
Then, by comparing the final water quality in each beaker, the effect of the different treatment parameters can be determined and the best formula can be reproduced on large scale
Description
PRODUCT DESCRIPTION
Flocculators with independent positions that allow standard conditions to be adopted for jar test, that are the basic requirement for reproducible results.
Independent Control
Independently selectable speeds 10-15-30-45-60-90-120-150-200-300 rpm
Same product can be submitted to different conditions in parallel
Reliable and repeatable results from VELP stirring quality
Precise speed from an electronically controlled DC gear motor
Versatile Operation
Choice of 4- or 6-place models
FC 4S, 4-position jar tester
FC 6S, 6-position jar tester
Speed can be changed during the run
Illuminated back panel to simplify sample observation
Stirring rods adjustable in height without tools
Robust Design
Strong resistance to chemical and mechanical corrosion
Recommendations
Select the accessories that match your requirements
GENERAL FEATURES
Construction material:
epoxy painted metal structure
Models:
FC4S 4 positions
FC6S 6 positions
Back panel:
disconnectable illuminated
Stainless steel stirring rods:
adjustable in height by a self blocking chuck
Pluriselector:
settable individual speed for each rod
Power:
FC4S 18 W
FC6S 23 W
Weight:
FC4S 12.5 kg (27.5 lb)
FC6S 18 kg (39.6 lb)
Dimensions (WxHxD):
FC4S 645x347x260 mm (25.4×13.7×10.2 in)
FC6S 935x347x260 mm (36.8×13.7×10.2 in)
PERFORMANCE
Speed selector settable at:
10 – 15 – 30 – 45 – 60 – 90 -120 – 150 – 200 – 300 rpm
Independent Positions
FC4S and FC6S, 4- or 6- position Floc Tester, permits changing of the speed during operation, up to 300 rpm.
Settable individual speed for each rod means thatevery single position is independent for the others.
An illuminated back panel simplifies the observation of the samples, whilst height adjustment option for the stirring blades during operation increases its capabilities.
What is JAR TESTING?
Jar testing is a pilot-scale test of the treatment chemicals used in a particular water plant.
In few words, it simulates the coagulation/flocculation process in a water treatment plant, helping the operator in the determination of the right amount of treatment chemicals, and, thus, in improving the
plant’s performance.
Jar testing entails adjusting the amount of chemicals and their sequence in which they are added. The sample requires to be stirred so that the formation, development, and settlement of floc can be watched just as it would be in the fullscale treatment plant.
The operator then performs a series of tests to compare the effects of different amounts of flocculation agents at different pH values to determine the right size floc.
Few operations are required for a correct test:
For each water sample, usually raw water, a number of beakers (jars) are filled with the same amounts of water sample
Each beaker is treated with different doses of chemical; other parameters may be altered besides dosage, including chemical types, mixing rate, aeration level/time, filtration type, etc.
Then, by comparing the final water quality in each beaker, the effect of the different treatment parameters can be determined and the best formula can be reproduced on large scale
PROGABA NT 100MG TABLET 10?S ₦1,856.25
TePe Red Interdental Brush 0.5mm - 6 Pieces ₦19,100.00
ENCELIN M SR 1000MG STRIP OF 10 TABLETS ₦1,907.75
GLIMIPACK M 1 STRIP OF 10 TABLETS ₦4,492.25
Description FLAT PROBE 75 mm STAINLESS STEEL
Description FLAT PROBE DIAMETER 50 SCREW PATH 3 mm
Description Special request Special request – flat rate for air humidity transmitter series per order – irrespective of the quantity ordered Make: Schaller Product code: 12011
Description FLAT SURFACE pH ELECTRODE Flat Surface pH probe is useful for reading the pH of small amounts of liquid, food products, and other surface pH measurements. The probe comes with a 40” cable and works with all Sper Scientific pH Meters, as well as any others, with a standard BNC connector. The probe measures the pH of a solution. This probe has a flat surface and is commonly used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, or skin. It features a single-junction electrode for general-purpose applications. The junction is sealed for low maintenance use and is easy to clean. Flat-surface, pH electrode, with an epoxy body, and 0-13 pH range. Has a BNC-connected combination reference and measuring cell, for ease of use and to provide tight coaxial cable connections. Used in testing surface measurements such as cheese, meats, small liquid samples, paper, soil, or skin. Low maintenance use, and is easy to clean. 6 month warranty
Description FLEXIBLE CLAMPS F-1 (38cm) Clamp C-4 C-5 C-6 C-7 F-1 F-2 F-3 F-4 Rated current 1000 A AC 1000 A AC 1400 A DC 10 A AC 100 A AC 3000 A AC Max. overload current 1200 A AC 1000 A AC 3000 A DC 20 A AC 100 A AC 10k A AC Minimal measurable current 100 mA 500 mA 10 mA 20 mA 1 A Frequency 30 Hz…10 kHz Dc…5 kHz 40 Hz…10 kHz 40 Hz…1 kHz 40 Hz…10 kHz Input signal level 1 mV / 1 A 1 mV / 1 A 100 mV / 1 A 5 mV / 1 A 38,8 μV / 1 A Max. diameter of measured cord 52 mm 39 mm 20 mm 24 mm 360 mm 235 mm 120 mm 630 mm Open clamp length — — — — 120 cm 80 cm 45 cm 200 cm Minimal basic accuracy ≤ 0,5% ≤ 1,5% ≤ 1% 0,5% 1% Battery power supply — + — — — Lead length 2,2 m 2,2 m 2,2 m 3 m 2,2 m Measurement category IV 300 V IV 300 V IV 300 V III 300 V IV 600 V Optional accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr, PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description FLEXIBLE CLAMPS F-2 (25cm) Clamp C-4 C-5 C-6 C-7 F-1 F-2 F-3 F-4 Rated current 1000 A AC 1000 A AC 1400 A DC 10 A AC 100 A AC 3000 A AC Max. overload current 1200 A AC 1000 A AC 3000 A DC 20 A AC 100 A AC 10k A AC Minimal measurable current 100 mA 500 mA 10 mA 20 mA 1 A Frequency 30 Hz…10 kHz Dc…5 kHz 40 Hz…10 kHz 40 Hz…1 kHz 40 Hz…10 kHz Input signal level 1 mV / 1 A 1 mV / 1 A 100 mV / 1 A 5 mV / 1 A 38,8 μV / 1 A Max. diameter of measured cord 52 mm 39 mm 20 mm 24 mm 360 mm 235 mm 120 mm 630 mm Open clamp length — — — — 120 cm 80 cm 45 cm 200 cm Minimal basic accuracy ≤ 0,5% ≤ 1,5% ≤ 1% 0,5% 1% Battery power supply — + — — — Lead length 2,2 m 2,2 m 2,2 m 3 m 2,2 m Measurement category IV 300 V IV 300 V IV 300 V III 300 V IV 600 V Optional accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr, PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description FLEXIBLE CLAMPS F-3 (14cm) Clamp C-4 C-5 C-6 C-7 F-1 F-2 F-3 F-4 Rated current 1000 A AC 1000 A AC 1400 A DC 10 A AC 100 A AC 3000 A AC Max. overload current 1200 A AC 1000 A AC 3000 A DC 20 A AC 100 A AC 10k A AC Minimal measurable current 100 mA 500 mA 10 mA 20 mA 1 A Frequency 30 Hz…10 kHz Dc…5 kHz 40 Hz…10 kHz 40 Hz…1 kHz 40 Hz…10 kHz Input signal level 1 mV / 1 A 1 mV / 1 A 100 mV / 1 A 5 mV / 1 A 38,8 μV / 1 A Max. diameter of measured cord 52 mm 39 mm 20 mm 24 mm 360 mm 235 mm 120 mm 630 mm Open clamp length — — — — 120 cm 80 cm 45 cm 200 cm Minimal basic accuracy ≤ 0,5% ≤ 1,5% ≤ 1% 0,5% 1% Battery power supply — + — — — Lead length 2,2 m 2,2 m 2,2 m 3 m 2,2 m Measurement category IV 300 V IV 300 V IV 300 V III 300 V IV 600 V Standard accessories for PQM-700, PQM-701, PQM-701Z, PQM-701Zr Optional accessories for PQM-702, PQM-703, PQM-710, PQM-711, MRU-200, MPI-530, MPI-530, MPU-1, MRU-200-GPS, MRU-200
Description FLEXIBLE CLAMPS F-4 Clamp C-4 C-5 C-6 C-7 F-1 F-2 F-3 F-4 Rated current 1000 A AC 1000 A AC 1400 A DC 10 A AC 100 A AC 3000 A AC Max. overload current 1200 A AC 1000 A AC 3000 A DC 20 A AC 100 A AC 10k A AC Minimal measurable current 100 mA 500 mA 10 mA 20 mA 1 A Frequency 30 Hz…10 kHz Dc…5 kHz 40 Hz…10 kHz 40 Hz…1 kHz 40 Hz…10 kHz Input signal level 1 mV / 1 A 1 mV / 1 A 100 mV / 1 A 5 mV / 1 A 38,8 μV / 1 A Max. diameter of measured cord 52 mm 39 mm 20 mm 24 mm 360 mm 235 mm 120 mm 630 mm Open clamp length — — — — 120 cm 80 cm 45 cm 200 cm Minimal basic accuracy ≤ 0,5% ≤ 1,5% ≤ 1% 0,5% 1% Battery power supply — + — — — Lead length 2,2 m 2,2 m 2,2 m 3 m 2,2 m Measurement category IV 300 V IV 300 V IV 300 V III 300 V IV 600 V
Description Flexible High Temperature K-Type Thermocouple Probe The HI766F is a K-type thermocouple probe with a flexible sheath designed for use with a thermocouple thermometer. A cable extends 1 m (3.3′) from the end of the sensor to the thermocouple connector with the meter; the HI766F does not incorporate a handle. The pliable stainless steel probe allows users to obtain highly accurate readings of a variety of high-temperature surfaces. Measures up to 1100°C (2000°F) 4 second response time AISI 316 stainless steel The Flexible High Temperature K-Type Thermocouple Probe – HI766F is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766F flexible sheath construction offers a speedy 4-second response for a temperature reading. With a strong, corrosion-resistant, AISI 316 stainless steel construction, this probe is able to measure extremely hot surfaces up to 1100°C (2000°F).
Description Flexible magnetic support suitable for 39301 Balancing Kit for VIBER X5 MKIII
Description Mounting Specification The Mounting Brackets come in two versions: Model 48002 Fixed System complete with a sturdy stand, vertical support bar, parallel support bar and two movable supports to hold the Dry AIr Guns or any other blow-off product from an air knive or amplifier to jets and nozzles. The compressed air is fed in at the bottom of the support with hoses (supplied with the system) feeding the blow-off units. Model 48003 Adjustable System is the same as the above except for the adjustable parallel support bar for totally variable support adjustments to aim the blow-off units wherever they need to be. This simple design allows for tremendous portability and flexibility of use for many blow-off applications.
Description FlexiPump Pro Model: Ref. 562 000 Dose volume: from 50 µL to 99.9 L Manufacturer: INTERSCIENCE FlexiPump Pro is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface. Traceability is guaranteed by printer and USB connection. Features of FlexiPump Pro Double pump head with 6 rollers: low pulsation for higher accuracy and flow rate Delivered with 2 split dispensing assemblies (3.2 and 6.4 inner diameter tubes) Flow rate up to 2.5 L/min Full traceability thanks to printer and USB connection 1. DESIGNED FOR MICROBIOLOGISTS Select between 3 dispensing modes and 32 programs with the digital control screen Rotating button for easy navigation and program settings Adapted to several dispensing modes with the handy gun* 2. PRECISE FLOW CONTROL Up to 1% precision Dispenses liquid from 50 µL to 99 L Flow rate up to 2.5L/min Contamination free: entire dispensing assembly is autoclavable together with bottle FlexiPump Pro typical precision with 3.2 mm inner diameter tube: 9 mL: 0.9% 18 mL: 0.5% 225 mL: 0.4% In compliance with ISO 6887-1 and ISO 7218 standards 3. EASY CALIBRATION Step-by-step guiding instructions on screen Calibration possible with any user’s chosen volume Can be done quickly by anyone in the lab 4. 3 DISTRIBUTION MODES Continuous Dose (Predetermined volume) Multi-dose (Predetermined volume, with a pause between each dose) 5. USER-FRIENDLY Compact: only 16 cm wide Improved dispensing control with the handy gun* and electronic start button Smart magnetic handy gun* holder for easy storage 6. TRACEABILITY Output of dispensing and calibration data (time, date and operator name) to trace batches Data can be printed (printer in option) or saved on a computer without any software (USB connection) 7. MAINTENANCE FREE High quality Watson Marlow pump heads Powerful stepping motor with no wearing parts Heavy duty polycarbonate top shell and durable stainless steel casing 8. HANDY GUN* FOR EASY DISPENSING Can be held in 3 positions (pen, mouse or gun) for tubes, Petri dishes, bottles and larger containers Improves dispensing control with the electronic Start button PRODUCT SHOW
Description PRODUCT DESCRIPTION Flocculators with independent positions that allow standard conditions to be adopted for jar test, that are the basic requirement for reproducible results. Independent Control Independently selectable speeds 10-15-30-45-60-90-120-150-200-300 rpm Same product can be submitted to different conditions in parallel Reliable and repeatable results from VELP stirring quality Precise speed from an electronically controlled DC gear motor Versatile Operation Choice of 4- or 6-place models FC 4S, 4-position jar tester FC 6S, 6-position jar tester Speed can be changed during the run Illuminated back panel to simplify sample observation Stirring rods adjustable in height without tools Robust Design Strong resistance to chemical and mechanical corrosion Recommendations Select the accessories that match your requirements GENERAL FEATURES Construction material: epoxy painted metal structure Models: FC4S 4 positions FC6S 6 positions Back panel: disconnectable illuminated Stainless steel stirring rods: adjustable in height by a self blocking chuck Pluriselector: settable individual speed for each rod Power: FC4S 18 W FC6S 23 W Weight: FC4S 12.5 kg (27.5 lb) FC6S 18 kg (39.6 lb) Dimensions (WxHxD): FC4S 645x347x260 mm (25.4×13.7×10.2 in) FC6S 935x347x260 mm (36.8×13.7×10.2 in) PERFORMANCE Speed selector settable at: 10 – 15 – 30 – 45 – 60 – 90 -120 – 150 – 200 – 300 rpm Independent Positions FC4S and FC6S, 4- or 6- position Floc Tester, permits changing of the speed during operation, up to 300 rpm. Settable individual speed for each rod means thatevery single position is independent for the others. An illuminated back panel simplifies the observation of the samples, whilst height adjustment option for the stirring blades during operation increases its capabilities. What is JAR TESTING? Jar testing is a pilot-scale test of the treatment chemicals used in a particular water plant. In few words, it simulates the coagulation/flocculation process in a water treatment plant, helping the operator in the determination of the right amount of treatment chemicals, and, thus, in improving the plant’s performance. Jar testing entails adjusting the amount of chemicals and their sequence in which they are added. The sample requires to be stirred so that the formation, development, and settlement of floc can be watched just as it would be in the fullscale treatment plant. The operator then performs a series of tests to compare the effects of different amounts of flocculation agents at different pH values to determine the right size floc. Few operations are required for a correct test: For each water sample, usually raw water, a number of beakers (jars) are filled with the same amounts of water sample Each beaker is treated with different doses of chemical; other parameters may be altered besides dosage, including chemical types, mixing rate, aeration level/time, filtration type, etc. Then, by comparing the final water quality in each beaker, the effect of the different treatment parameters can be determined and the best formula can be reproduced on large scale
