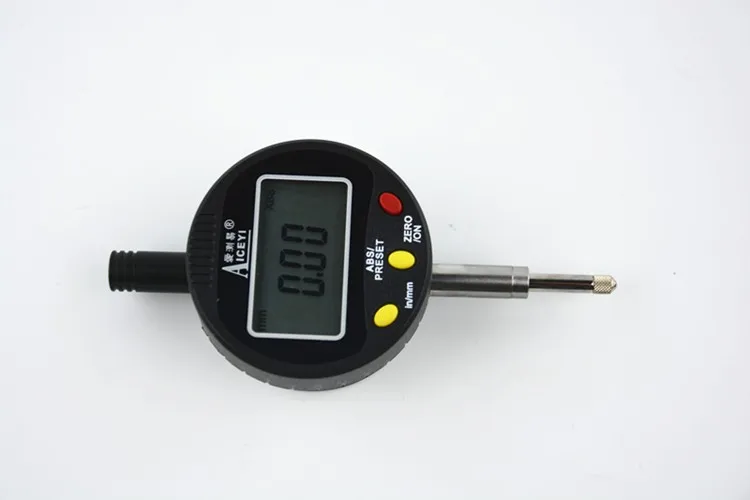

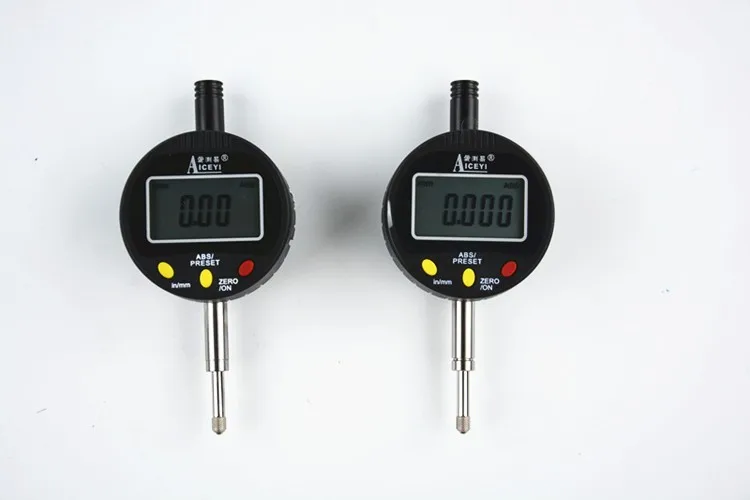

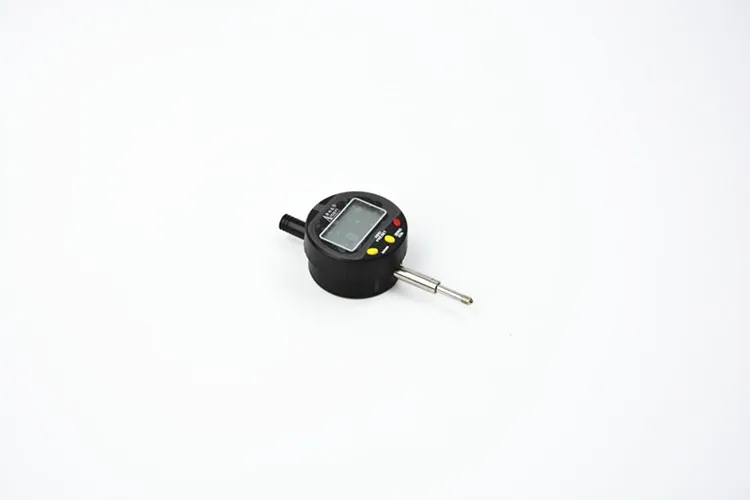

0-12.7mm or 0.5 inch Digital Dial Indicator
Features:
large screen, display clear
measuring speed
Absolute and relative measurements
Preset the actual position value
Shell aluminum oxide ceramic space technology, strong. Anti-scratch.
Optional automatic and manual shutdown
Large capacity, 3V environmental protection lithium battery.
Performance parameters:
Accuracy: See Performance Data Sheet
Sensor: Capacitance displacement sensor
Resolution: See performance data sheet
Display: LCD display
Response speed: 1.5m / s
Bush diameter: Metric (ISO / GB type): 8mm

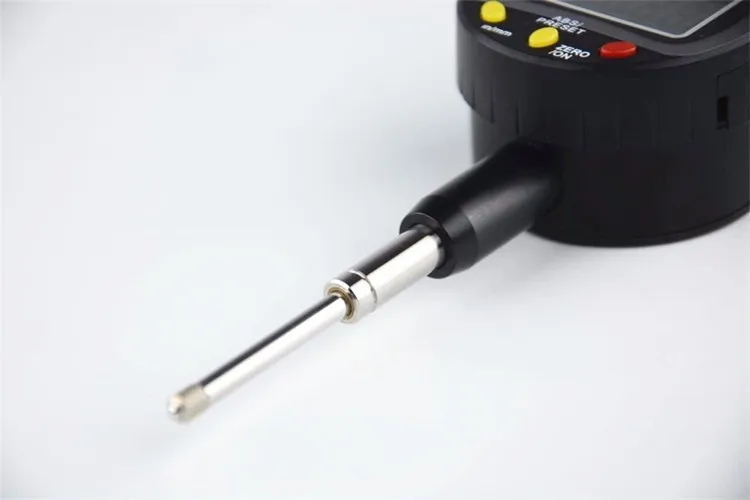

Measuring head: M2.5X0.45 thread carbide ball
Battery: 3V RS2023 lithium battery, 2000 working hours
Different types of dial indicator
| Model | Range | Resolution | Accuracy | Repetability |
| ACE-G3121 | 0-12.7mm/0.5″ | 0.001mm | 0.003mm | 0.002mm |
| ACE-G3251 | 0-25.4mm/1″ | 0.001mm | 0.005mm | 0.003mm |
| ACE-G3301 | 0-30mm/1.5″ | 0.001mm | 0.005mm | 0.003mm |
| ACE-G3501 | 0-50.8mm/2″ | 0.001mm | 0.006mm | 0.003mm |
| ACE-G31001 | 0-100mm/4″ | 0.001mm | 0.009mm | 0.002mm |
| Product Name | DIGITAL INDICATOR |
| Item No. | ACE-G3121 |
| Designs | Different Choice |
| Range | 0-12.7mm |
| Resolution | Metric 0.001mm |
| Accuracy | +/-0.003mm |
|
Display Type |
LCD |
| Stem Diameter | 8mm |
| Box choose | Solid plastic box |
Standard configuration: battery, instruction manual, plastic box.

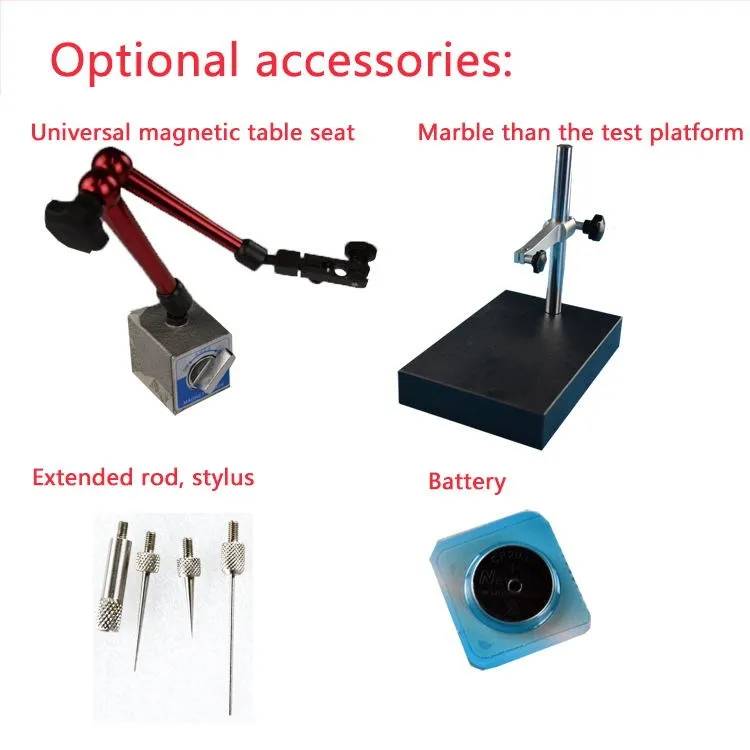

Optional accessories: USB data cable, RS232 data cable, lug rear cover, all kinds of measuring head, external displa
Precautions for use
1. The table fixed to the table or table stand, stable and reliable. Clamping table instructions, the clamping force can not be too large, so as to avoid deformation of the sleeve stuck measuring rod.
2. Adjust the spindle axis of the table perpendicular to the measured plane, the cylindrical workpiece, the spindle axis to be perpendicular to the workpiece axis, otherwise it will have a lot of errors and damage to the table.
3. Zero point before measurement. Absolute measurement A zero reference was made with a flat plate, and a comparative reference (gauge block) was used as the zero reference. When the zero position, first make the probe contact with the reference surface, the pressure probe to make the big pointer rotation is greater than a circle, turn the dial to align the 0 line with the big pointer, and then lift the top 1-2mm and then let it fall , Repeated 2-3 times check whether the pointer is still aligned with the 0 line, if not, then re-adjustment (ABS state can be zero at any time).
4. Measurement, the hand gently lift the measuring rod, the workpiece into the probe under the measurement, the workpiece can not be forced into the probe under. Significantly uneven workpieces are not measured with a meter.
5. Do not make the measuring rod suddenly hit the workpiece, nor strong vibration, beat the scale. In this case,
6. Note that the measurement range of measurement, do not make the probe displacement beyond the range, so as to avoid excessive elongation of the spring, damage to the table.
In order to ensure that the product is not damaged during the delivery of the courier, our company’s product packaging is their own packaging, packaging is absolutely reliable, safe, and then sent to the courier company on the package, transported to the port.

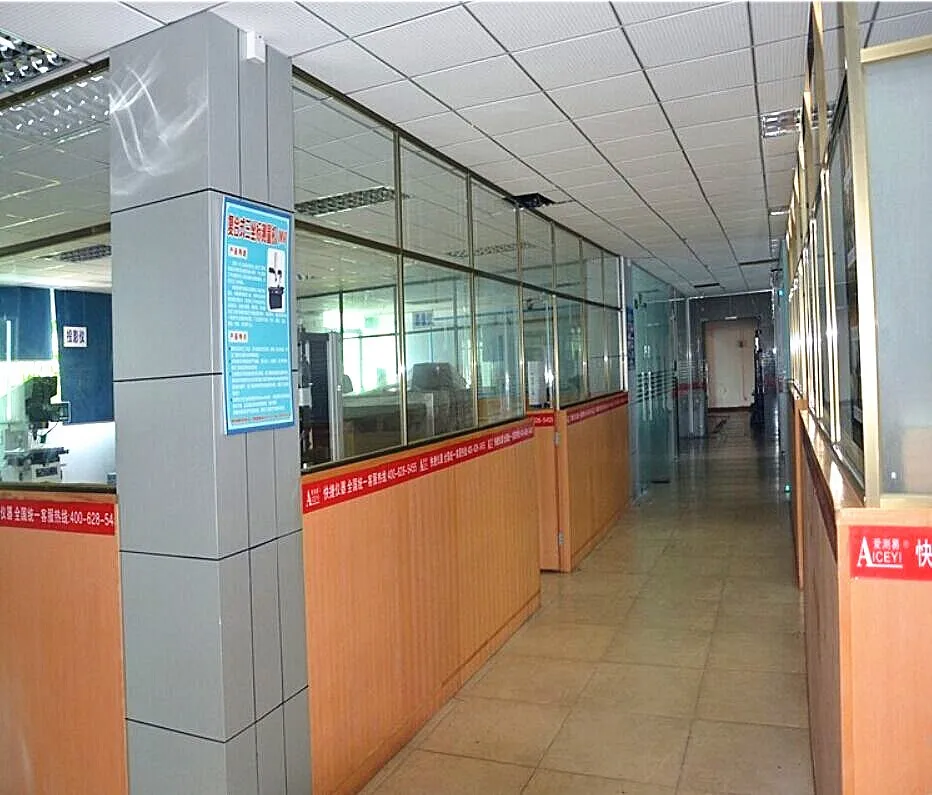

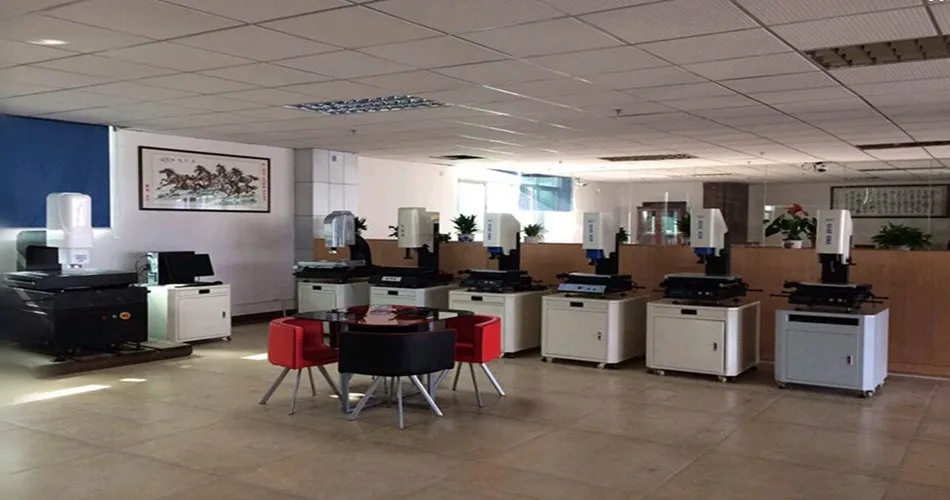

Our company was established in 2003, is located in China ‘s manufacturing town —- Tangxia Town, Dongguan City, is a professional supplier of integrated testing equipment, love measuring easy photoelectric Technology (Hong Kong) Limited in the A wholly-owned subsidiary of China, Hong Kong is easy to test the brand precision instruments distributor in China, Taiwan Wan Hao brand precision instruments distributor in China, responsible for the brand equipment in mainland China sales and after-sales service. Companies in order to broaden the product line, in June 2013, set up in Dongguan City Tangxia easy to test electronic equipment factory, specializing in the production of environmental testing equipment, reliability test equipment. Our products: concentricity meter, length measuring instrument, digital torque meter, projector, the second element image measuring instrument, coordinate measuring machine, tool microscope, grating, tool presetter, hardness, , Roughness meter, and a variety of test equipment. 10 years, we strive to provide customers with quality products and efficient after-sales service, focus on customer quality improvement.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do your products have stock?
A:Some products we have stock,but some products are produced on clients special requirements,so we do not have stock.
