Overview
Essential details
- Capacity (pcs/h):
-
360000 pcs/h
- Applicable Material:
-
tablet capsule pill candy gummy
- Capacity (bottle/min):
-
60 – 80 bottle/min
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product
- Warranty of core components:
-
3 years
- Core Components:
-
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump, Photoelectric detector
- Bottle Capacity (pcs/bottle):
-
3 – 9999 pcs/bottle
- Condition:
-
New
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Guangzhou Ruida
- Usage:
-
Tablet capsule counting
- Voltage:
-
380V/220V 50Hz
- Dimension(L*W*H):
-
1200*1550*1750mm
- Weight (KG):
-
650
- Warranty:
-
3 years
- Key Selling Points:
-
High-accuracy
- Power (kW):
-
2.2kw
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Pharmaceutical, pharmacy, Medical, Capsule tablet pill, Candy Gummy
- Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
- Product name:
-
capsules counting filling machine
- Production Capacity:
-
80 bottles/mins
- Accuracy rate:
-
- Application:
can count 3-40mm tablet/capsule/gummy- Type:
-
Electronic Counting Machine Packaging
- Bottle Shape:
-
Round, Square, Oval
- Operation:
-
PLC Touch Screen Control
- After-sales Service Provided:
-
Service Machinery Overseas
- Local Service Location:
-
America
- Automatic Grade:
-
Full-automatic
Supply Ability
- Supply Ability
- 300 Set/Sets per Month automatic capsule counting machine price

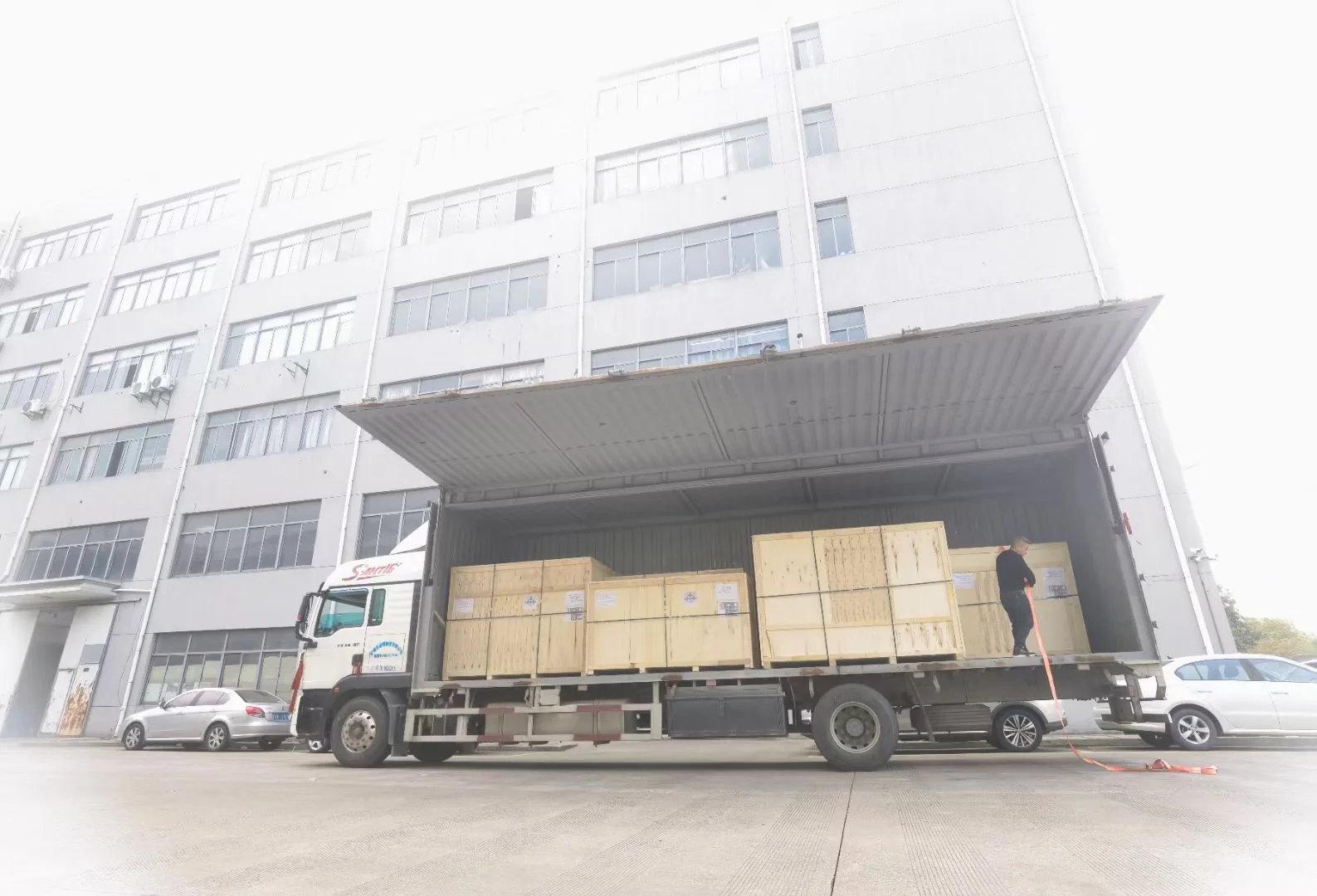

Packaging & delivery
- Packaging Details
Standard export wood case
the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
- Port
Guangzhou/Shanghai
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 10 To be negotiated
16 Lane Fully Automatic Softgel Pill Counts Bottling Machine 16 Chute Tablet Capsule Counting And Bottle Filling Machine
|
Production capacity
|
80 bottles/min
|
|
Voltage
|
220/380V 50/60HZ (customizable)
|
|
Weight
|
650kg
|
|
Outline dim.(mm)
|
1200×1550×1750mm
|
Details Images
Capsules counter filling machine is the seventh generation of Guangzhou Ruida innovative product. Automatic counting machine a structural and modular upgrade to the oscillating tank, pneumatic push plate,
and pneumatic bottles sleeve continuous blanking mechanism. The counting photoelectric adopts one-to-one independent controls, and counting accuracy is higher and the speed is higher. Faster and more than stable operations.
The solid particles such as tablets, capsules and pill with width of 3-25 mm can be bottled, bagged, and boxed for counter and sub-packing. Tablet counter filling machine can be combined with bottle unscrambler, paper stopper,
stopper desiccant machine, capping machine, electromagnetic aluminum foil sealing machine, and self-adhesives labeling machine to form a fully automatic bottle production line.
Pharmacy capsules counter machine accuracy rate of counting cans is more than 99.97%, which is higher than the industry standard.
