General Information

Global Commercial Alias:
PSTX250-600-70

Extended Product Type:
PSTX250-600-70

Product ID:
1SFA898113R7000

ABB Type Designation:
PSTX250-600-70

EAN:
7320500501542

Catalog Description:

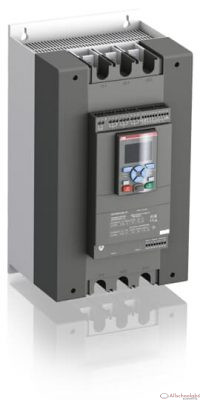

PSTX250-600-70 Softstarter

Long Description:
Softstarter PSTX250-600-70 for max 600V main voltage and 100 ? 250V 50/60Hz control supply voltage.

Categories

Products ? Drives ? Softstarters ? Softstarters ? PSTX Softstarters ? PSTX250
Products ? Low Voltage Products and Systems ? Control Products ? Softstarters ? Softstarters ? PSTX Softstarters ? PSTX250

Dimensions

Product Net Width:
258?mm

Product Net Height:
470?mm

Product Net Depth / Length:
279?mm

Product Net Weight:
15.5?kg

Technical

Rated Operational Voltage:
208 ? 600 V AC

Rated Control Supply Voltage (Us):
100 ? 250 V AC

Rated Control Circuit Voltage (Uc):
DC Operation 24 V

Rated Frequency (f):
Main Circuit 50/60 Hz

Rated Operational Power ? In-Line Connection (Pe):
(230 V) 75 kW

(400 V) 132 kW

(500 V) 160 kW

Rated Operational Current ? In-Line Connection (Ie):
250 A

Rated Operational Power ? Inside Delta Connection:
at 230 V 132 kW

at 400 V 220 kW

at 500 V 295 kW

Rated Operational Current ? Inside Delta Connection:
430 A

Service Factor Percentage:
100 %

Overload Protection:
Build-in electronic overload protection

Integrated Electronic Overload:
Yes

Adjustable Rated Motor Current Ie:
30 ? 100 %

Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s

Ramp Time:
1 ? 120 second [unit of time]

Initial Voltage During Start:
10 ? 99 %

Step Down Voltage Special Ramp:
100 ? 10 %

Current Limit Function:
1.5 ? 7.5 xle

Switch for Inside Delta Connection:
Yes

Run Signal Relay:
Yes

By-pass Signal Relay:
Yes

Fault Signal Relay:
Yes

Overload Signal Relay:
Yes

Analog Outputs:
0?10 V, 0?20 mA, 4?20 mA

Signal indication ready to start/standby ON (LED):
Green

Signal indication running R (LED):
Green

Signal indication protection (LED):
Yellow

Signal indication fault (LED):
Red

Communication:
Built in Modbus interface, Anybus, FieldBusPlug (with adapter).

Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type:
Main Circuit: Bars

Connecting Capacity Main Circuit:
Hole Diameter 10.2 mm

Connecting Capacity Control Circuit:
Rigid 1?2.5 mm?

Connecting Capacity Supply Circuit:
Rigid 1?2.5 mm?

Tightening Torque:
Main Circuit 25 N?m

Product Main Type:
PSTX250
