2.75J,5.5J Dial display izod & testing equipment charpy impact tester for plastic Allschoolabs -

Description

2.75J,5.5J Dial display izod & testing equipment charpy impact tester for plastic

Overview

Essential details

Warranty:: 1 Year

Customized support:: OEM, ODM, OBM

Place of Origin:: Shandong, China

Brand Name:: HST OR OEM

Model Number:: XJXD-5.5

Power:: Electronic

use:: no-metal impact testing machine

Impact energy:: 7.5/15/25/50J

Dial indexing angle:: 1/100

Impact speed:: 3.8m/s

Pendulum angle:: 160°

Impact blade angle:: 30±l°

Energy loss:: 0.5%

Dimension:: 550mm*350mm*850mm

Weight(Kg):: 160kg

Origin:: China

Supply Ability

Supply Ability: 300 Set/Sets per Month Could be OEM and Customized

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(sets)	1 – 1	2 – 5	>5
Lead time (days)	7	10	To be negotiated

Dial display izod & testing equipment charpy impact tester for plastic 150j/250j/300j/500j/750j

Product Application

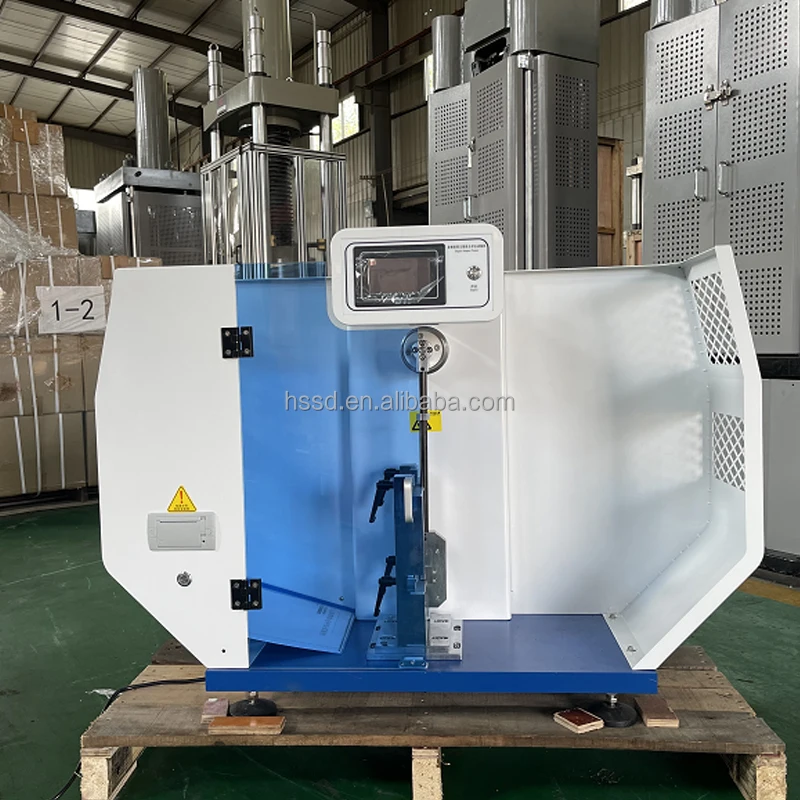

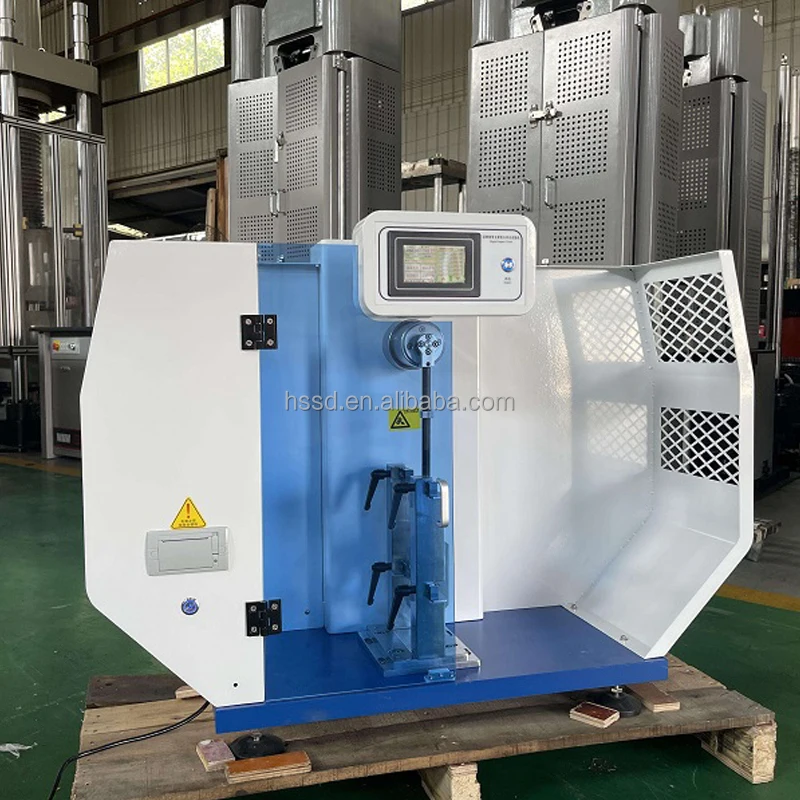

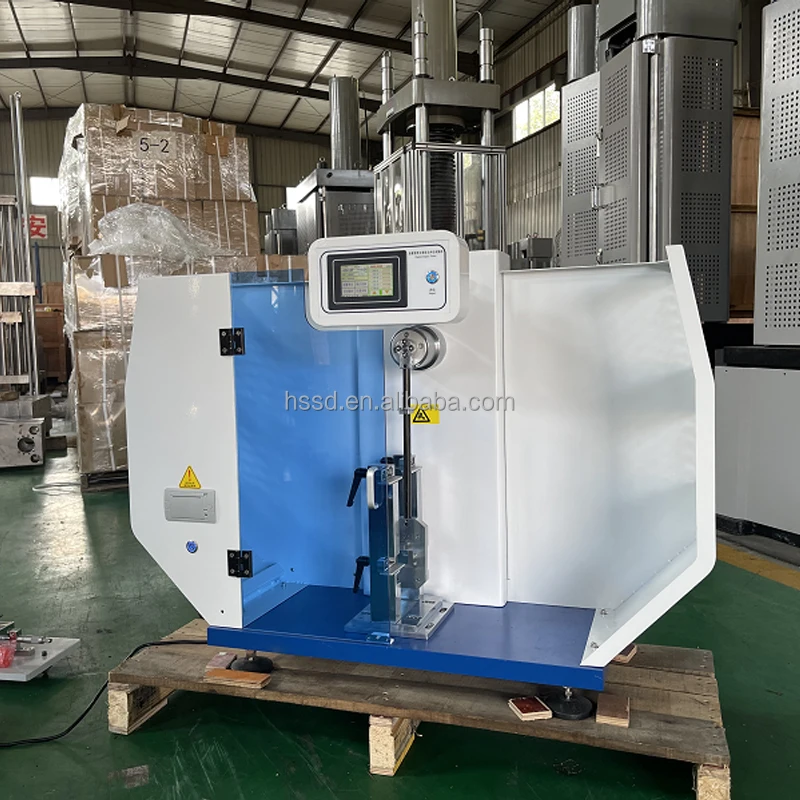

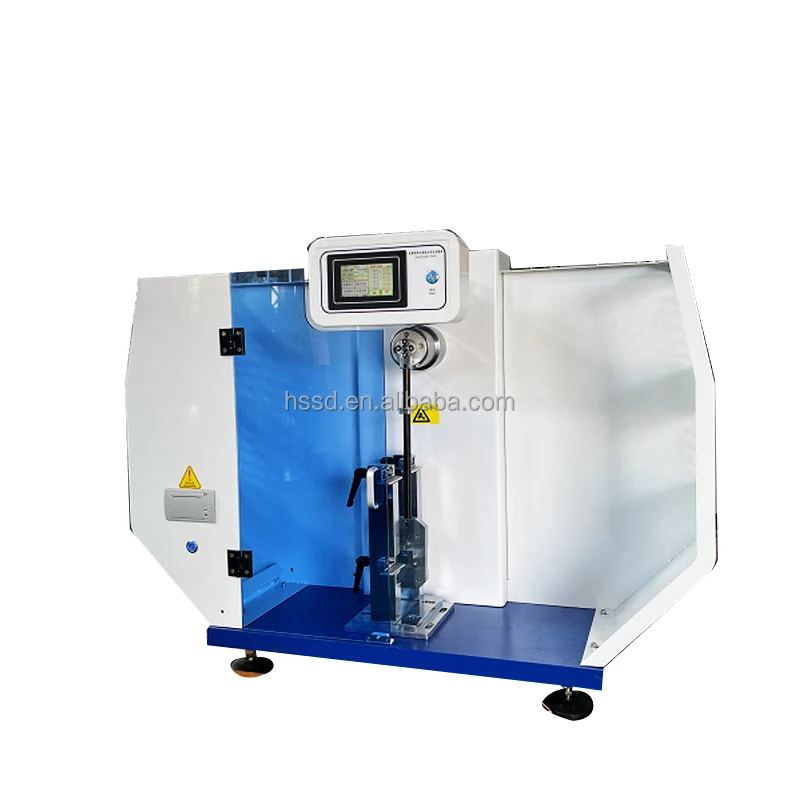

XJXD-5 series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.

Specification Data

act TestiTouch Screen Plastic Charpy & Izod 150j/250j/300j/500j/750j
Charpy		Izod
Pendulum Energy	2J,4J,5J	Pendulum Energy	2.75J,5.5J
Impact Speed	2.9m/s	Impact Speed	3.5m/s
Rising Angle Of Pendulum	150°	Rising Angle Of Pendulum	150°
Pendulum Center To Sample Center Distance	230mm	Pendulum Center To Sample Center Distance	335mm
Impact Cutting Edge Radius	(2±0.5)mm	Impact Cutting Edge Radius	R=0.8mm±0.2mm
Power supply		100VA 220VAC 50HZ
Dimensions		420mm250mm650mm
Required space		0.4m front and rear, 1.5m left and right, 1.5m upper part
