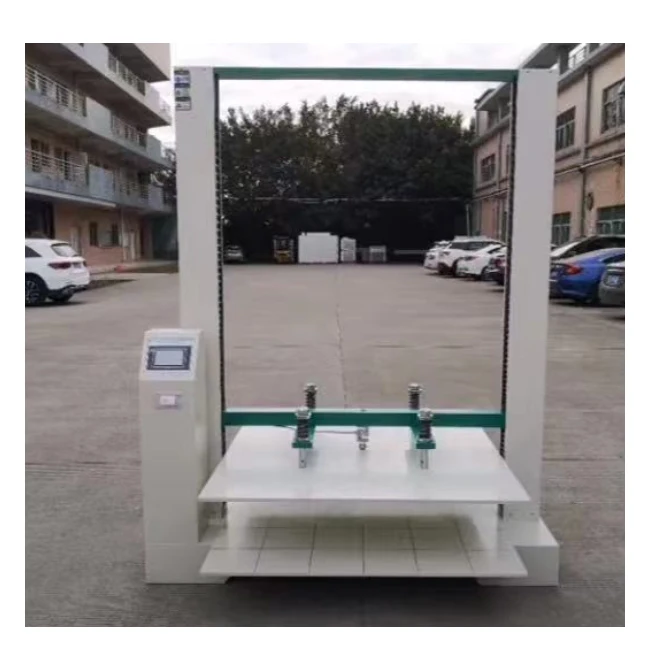

5kn 10kn 20kn 50kn Box Compression Tester Testing Equipment
5kn 10kn 20kn 50kn Corrugated Package Box Compression equipment
This machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Characteristics:
Digital Display Box compression Testing Machine is used for various kinds of box to test its resistance to compression and stacking capacity.
With advanced measuring and controlling technique, it can realize the accurate measuring and control.
The test data can be displayed on the LCD Monitor.
This machine has been widely used in the fields of carton and packaging industries.
Features:
1.High accuracy motor to control test speed .
2.Ball screw no backlash to guarantee the low noise and high driving efficiency .
3.High accuracy load cell to measure the test load .
4.High accuracy photoelectric encoder to measure the displacement .
5.Compact structure with easy operation .
6.Limit switch and setting in the software to guarantee the safety .
|
Max. load |
200KG,500KG,1T,2T,5T or custom |
|
Units |
kgf, Ibf, N, KN, kPa, MPa |
|
Resolution |
1/50,000 |
|
Accuracy |
±1% |
|
Compression space |
A:600*600*600mm B:1000*1000*1000mm (or designated) |
|
Motor |
Taiwan step motor |
|
Speed of Compression |
10 ± 3 mm/min |
|
Protector |
Leakage protection, overload auto-shutdown, displacement limit protection |
Standard of Corrugated Carton Compression Tester :
[Industrial Standard]:GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642
[Manufacturing Standard]:GB/T16491,TAPPI-T804,JIS-Z0212
1.Can I get some samples?
We are honored to offer you samples for quality check.
2.Do you have the products in stock?
Our products are manufactured according to your order except the normal products.
3.What’s the delivery time?
It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.How to select the motor model?
Before purchasing,please contact us to confirm the model no and specification to avoid any misunderstanding.
6: What’s your warranty?
Our warranty is 12 months from shipment out of factory.
