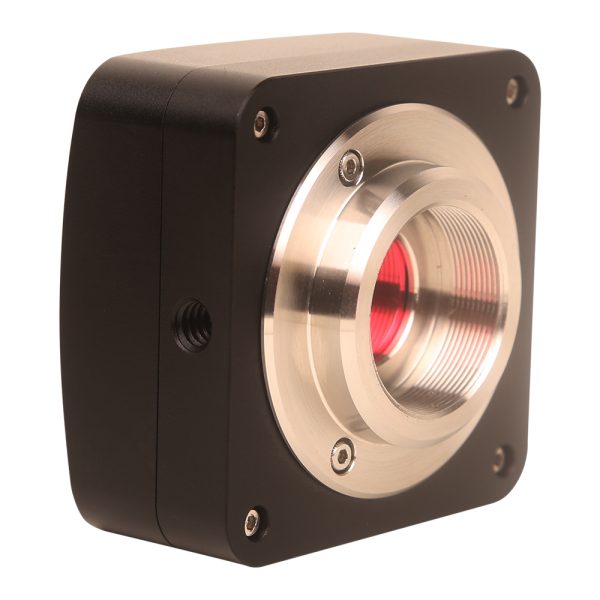

8.0M UCMOS USB2.0 C-mount Stereo Biological Microscope Camera

UCMOS is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
UCMOS hardware resolutions ranges from 0.35M to 14M and comes with the CNC aluminum alloy compact housing. UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UCMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of UCMOS cameras are as follows:

Standard C-Mount with Aptina CMOS sensor;
With hardware resolution among 0.35M to 14M;
CNC aluminum alloy housing;
0 interface ensuring high speed data transmission;
Ultra-FineTM?color engine with perfect color reproduction capability;
With advanced video & image processing application ToupView;
Providing Windows/Linux/Mac OS multiple platforms SDK;
Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

?

Order Code
Sensor & Size(mm)
Pixel
(_m)
G Responsivity
Dynamic range
SNRmax
FPS/Resolution
Binning
Exposure

UCMOS08000KPB

TP608000B
8M/Special(C)

1/2.5?(5.06_3.79)
1.55_1.55
250mv with 1/30s
?
0.25mv with 1/30s
4@3264_2448

15@1600_1200

62@800_600
1_1

2_2

4_4
0.4ms~2000ms

?
C: Color; M: Monochrome;

Other Specification for UCMOS Camera

Spectral Range
380-650nm (with IR-cut Filter)

White Balance
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique
Ultra-FineTM?Color Engine/NA for Monochromatic Sensor

Capture/Control SDK
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System
Still Picture and Movie

Cooling System*
Natural

Operating Environment

Operating Temperature(in Centidegree)
-10~ 50

Storage Temperature(in Centidegree)
-20~ 60

Operating Humidity
30~80%RH

Storage Humidity
10~60%RH

Power Supply
DC 5V over PC USB Port

Software Environment

Operating System
Microsoft??Windows??XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17? or Larger

CD-ROM
