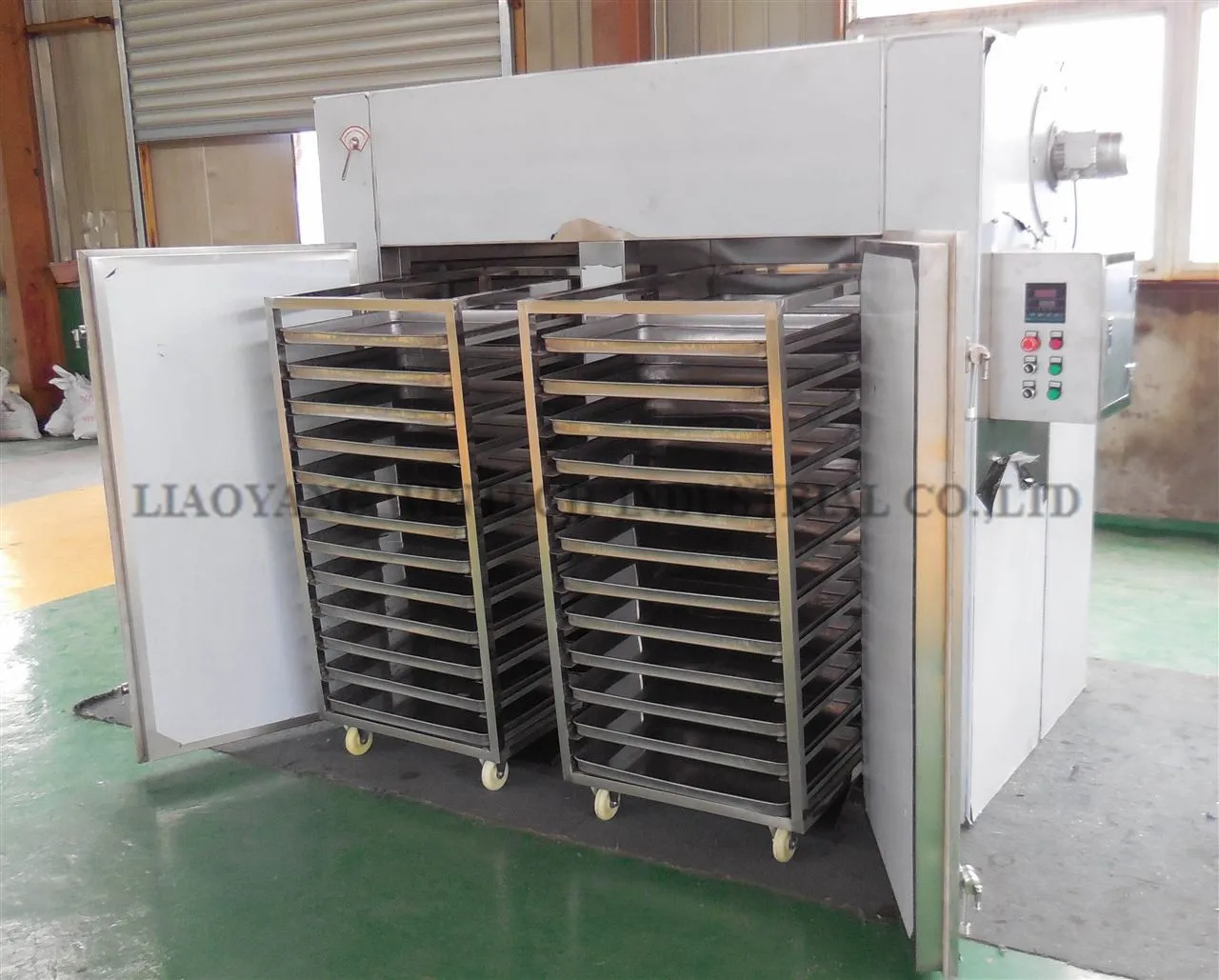

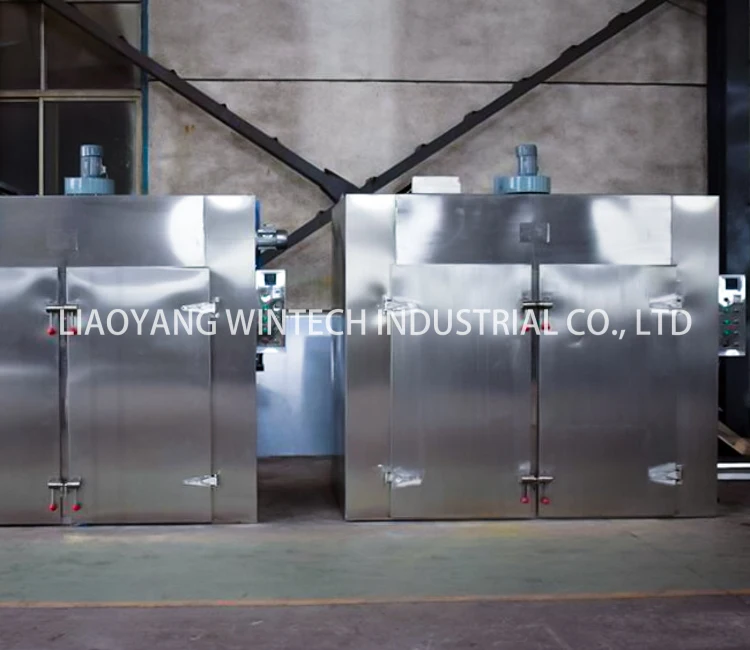

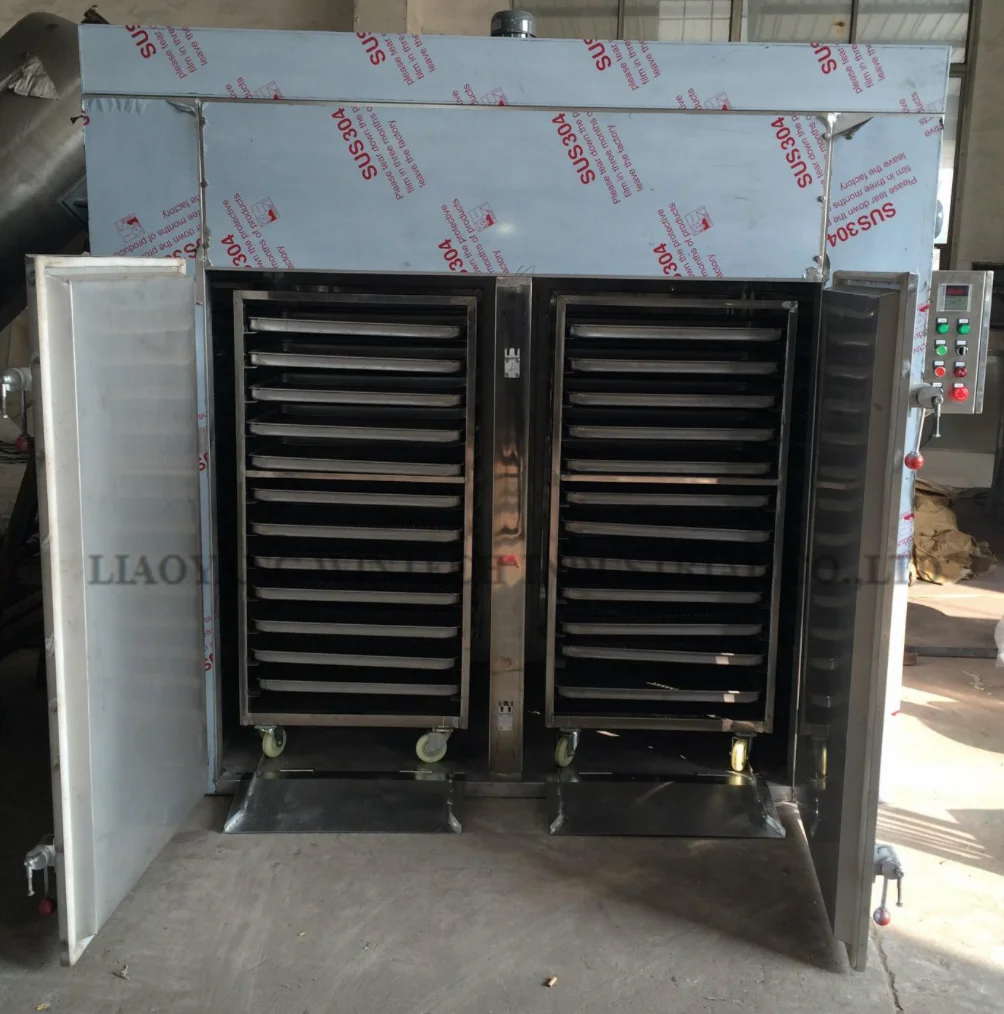

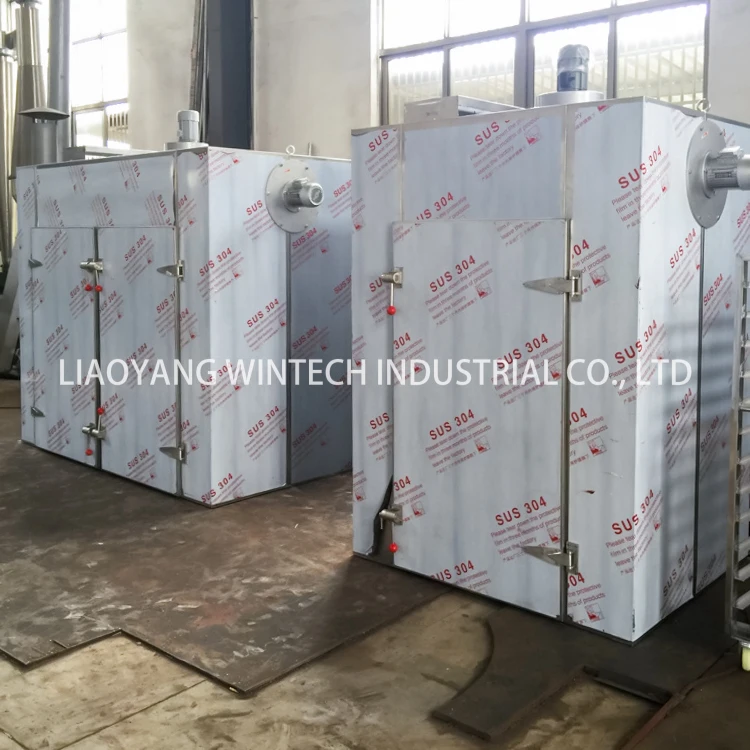

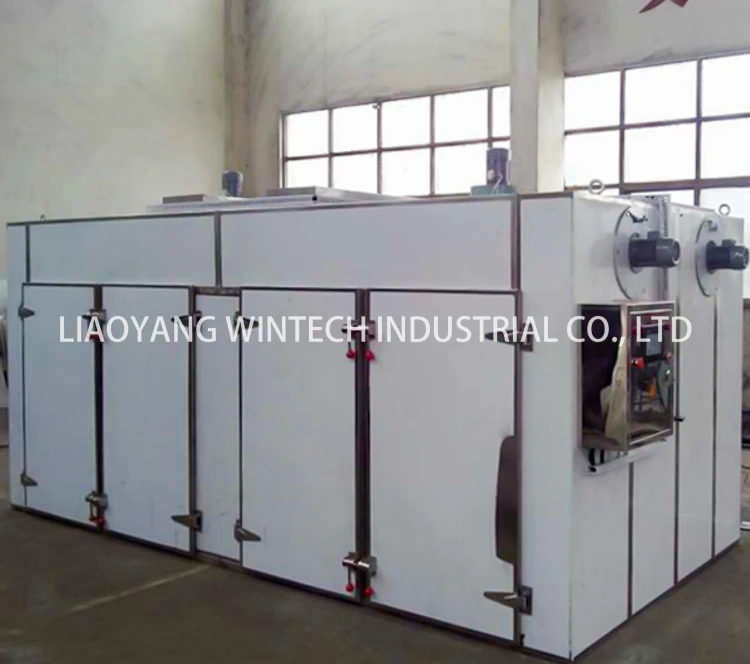

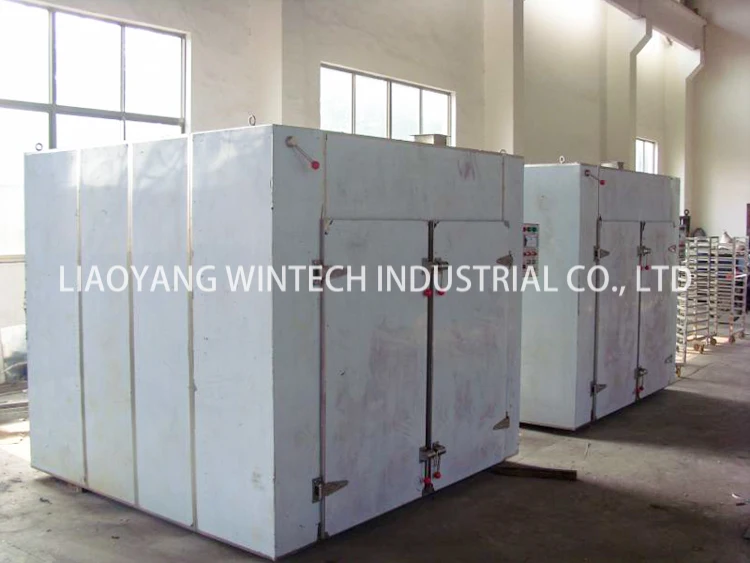

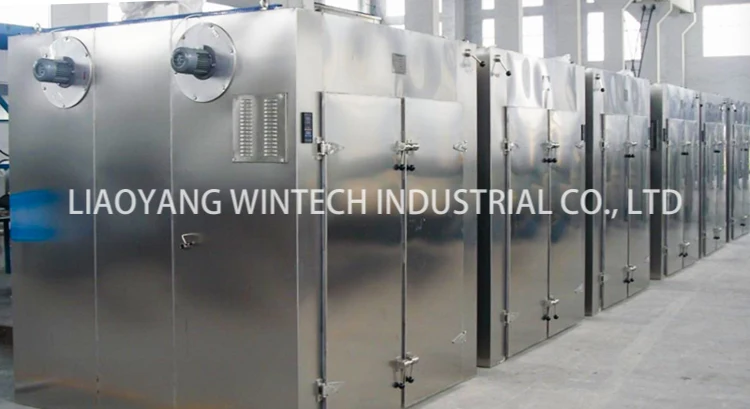

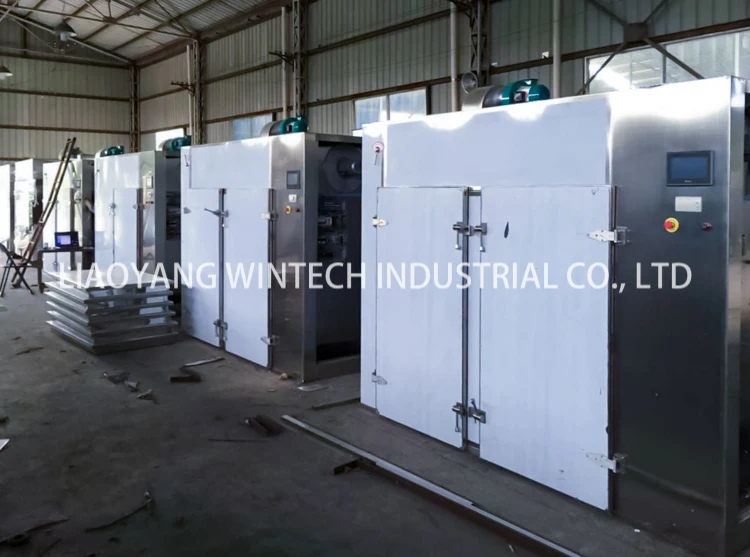

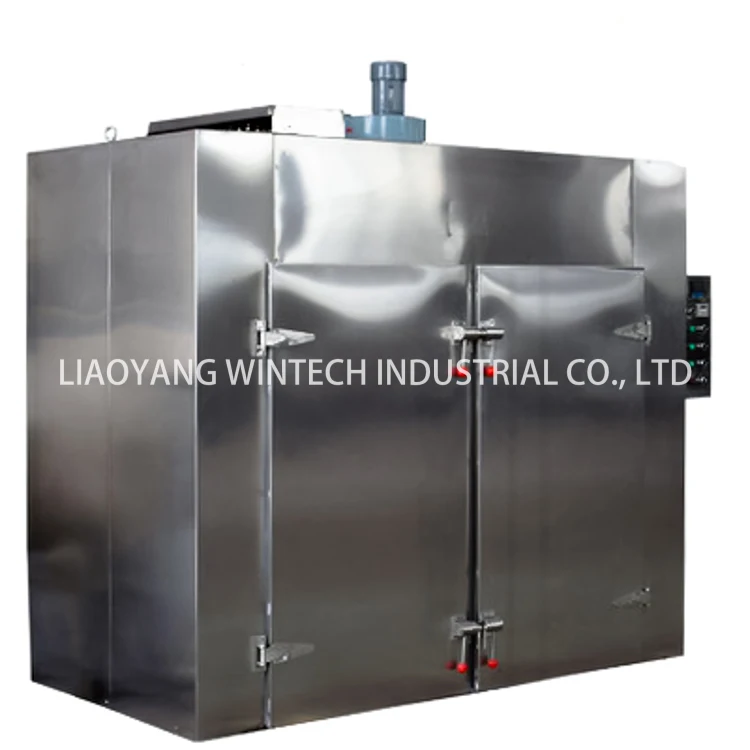

Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation

function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and it is a common drying equipment.

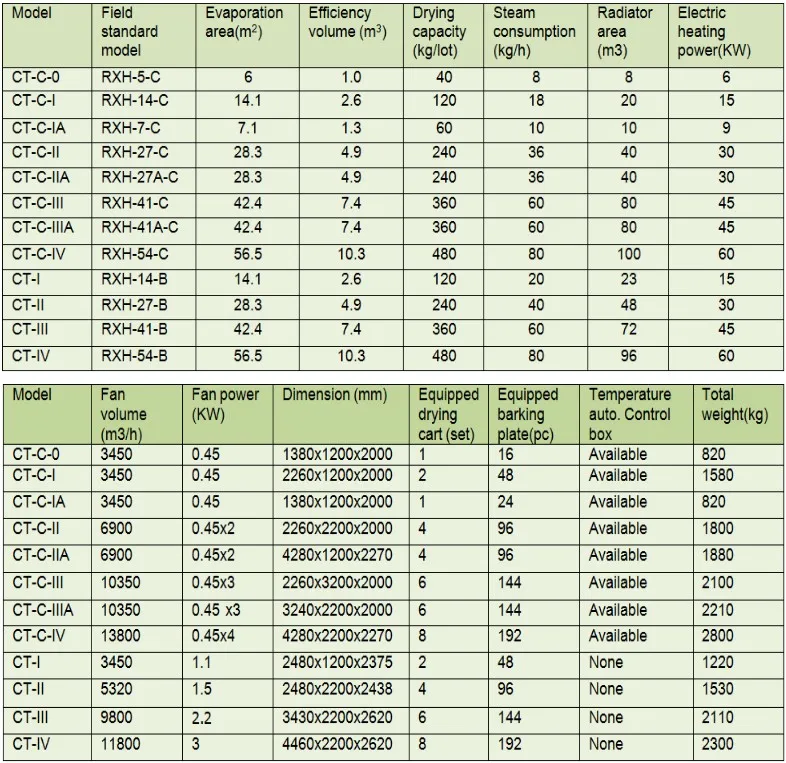

1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2.Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .

3.Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.

4.Commonly used steam pressure 0.2-0.8 Mpa(2-8 bar).

5.For CT-C-I, electric heated, rated power consumption:15 Kw, real consumption : 5-8 Kw.

6.The special requirements should be indicated at the time of order.

7.Please consult as for any special requirements.

8.For operation temperature of over 140 ℃ or less than 60 ℃ , please indicate when order.

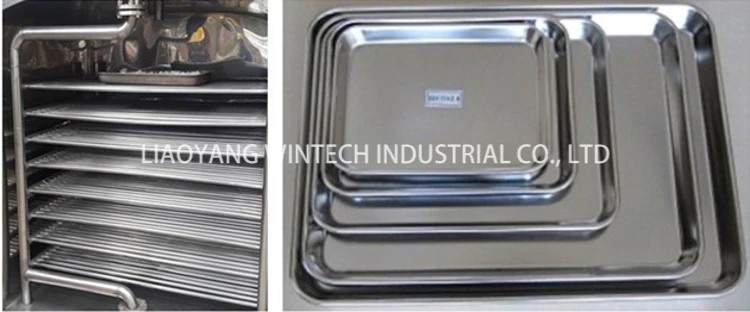

9.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

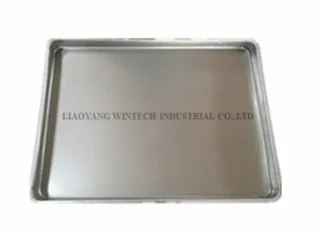

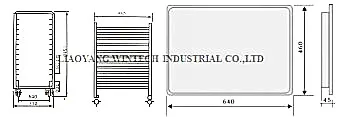

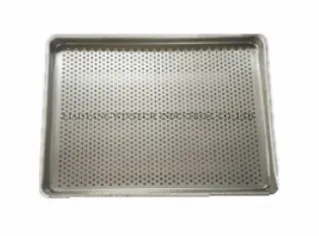

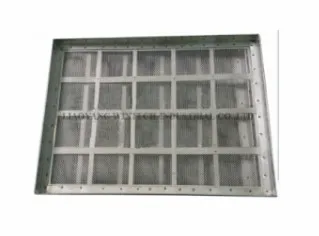

10.Baking plate dimensions:460*640*45 mm.

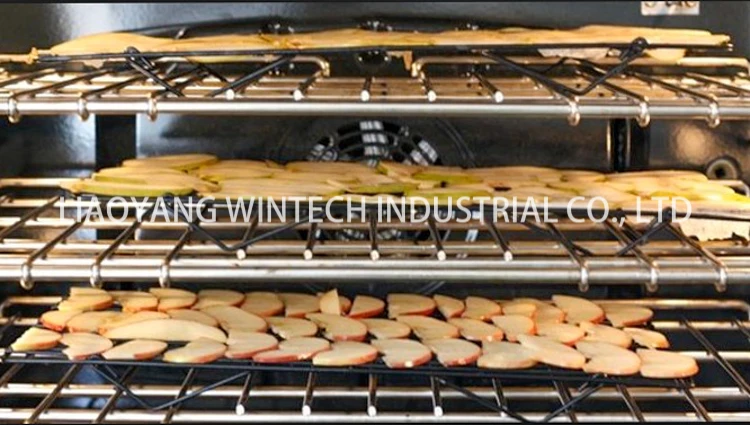

This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical,food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

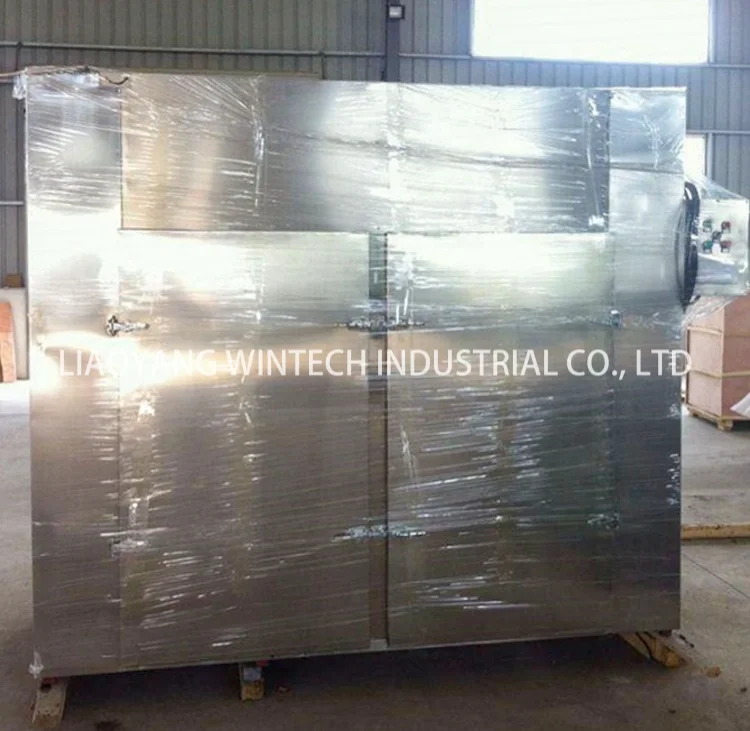

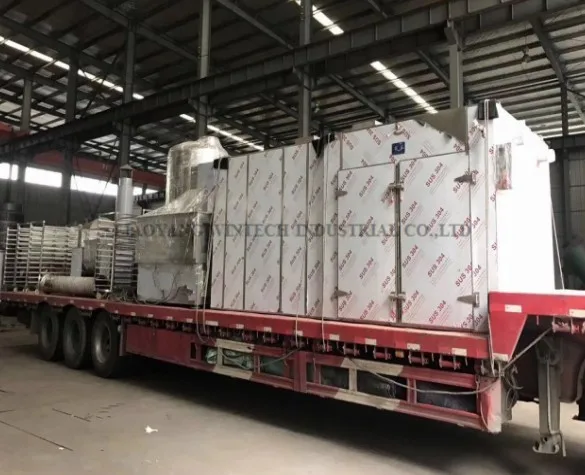

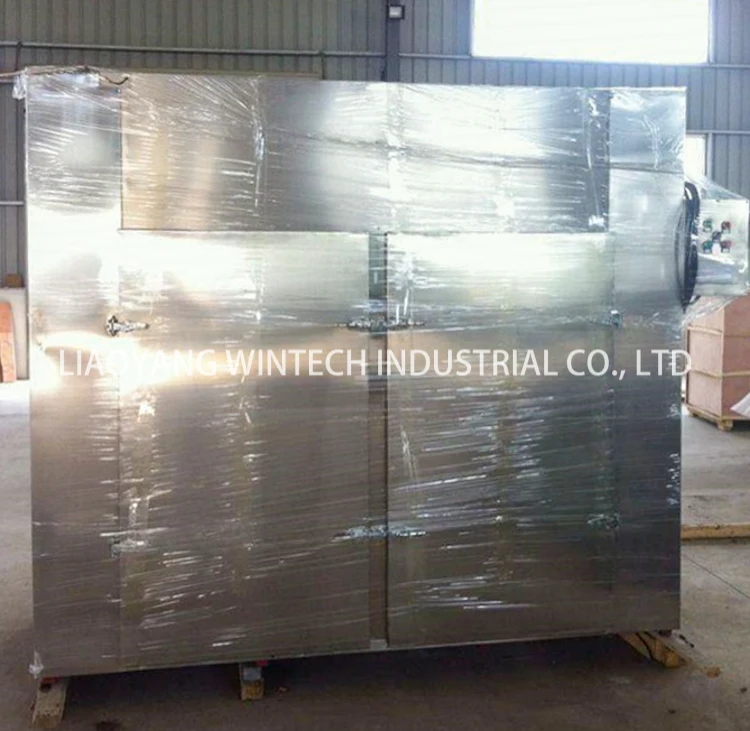

The machine is wrapped with protective film

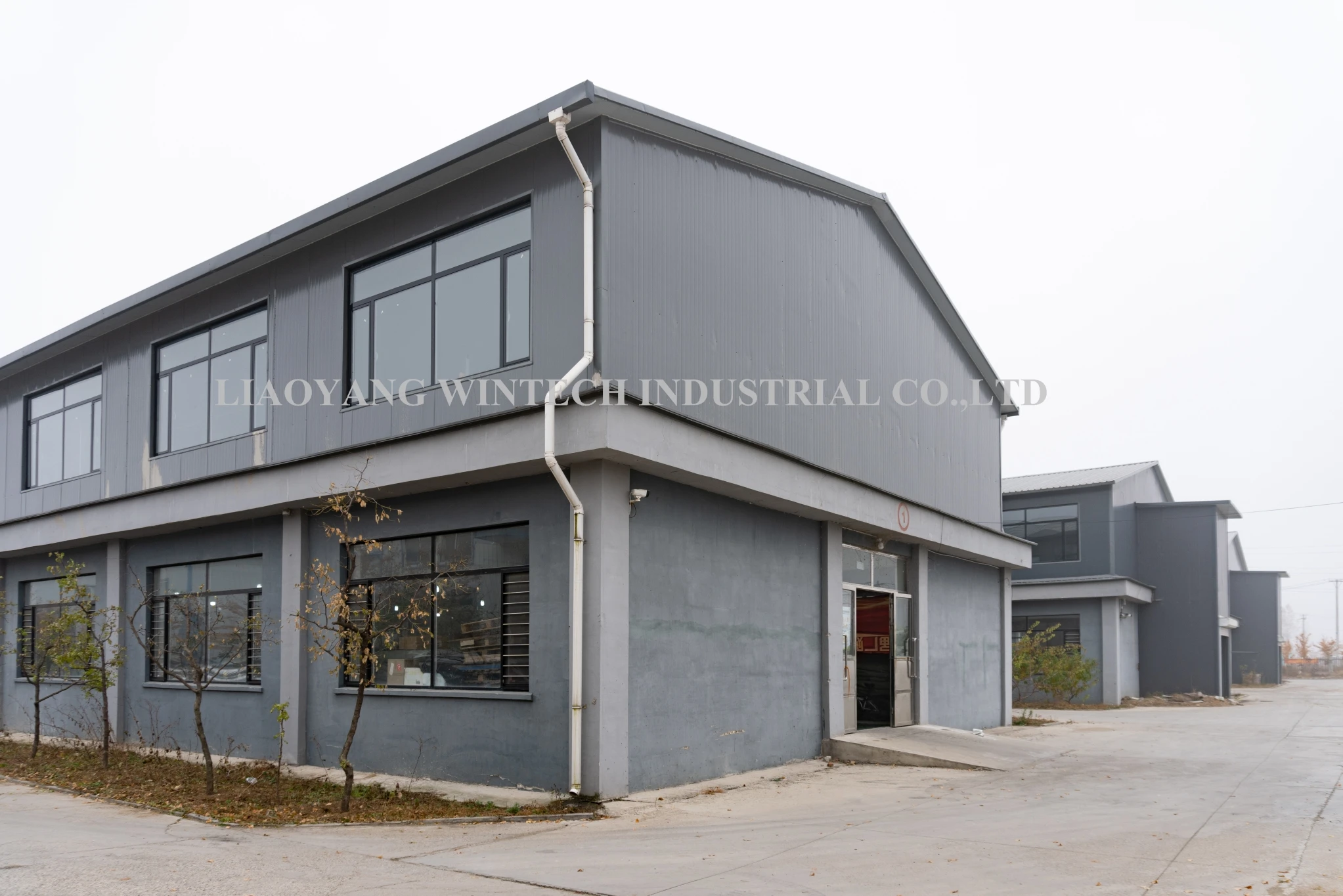

LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.

Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.

1. Each machine is manufactured by professional experienced staff.

2. 12 months warranty + 100% QC inspection Before Shipment.

3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.

4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,

lifetime maintenance service is provided and at buyer’s cost.
