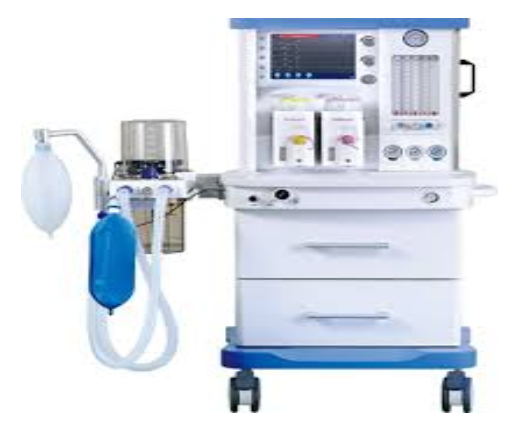

The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what?s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
?Trust Pointsl Simplicity: easy to use, easy to move with 4 wheels.?l Choice: adapt the equipment to your patients and procedures freely?l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV.?l Designed and manufactured by Superstar Medical with over 23 years experience in this area.?l Flexible configurations to suit your needs.?l International standard and advanced technology suitable for wide range use.?l Compact interface and big screen give you better operating experience.?l Over 3,500 units installed in the world.??Features?l 10.4? TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.?l High precision flow meter, instantly know the fresh gas flow to your patient.?l Integration breathing circuit design, ensure easy operating and keep tidy.?l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.?l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.?l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;?l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.?l Vital sign monitor and Anesthetic gas monitor are optional.??Safetyl Three level alarming system, visual and sound alarm information.?l With lots of alarming, reminding and protection functions.?l Advanced power management control technology.?l With built-in backup power source, when outside power source goes off, back-up power source starts to work.?l Low O2 pressure alarm and N2O cut-off protection.
Specifications?Ventilation modes:?IPPV; A/C; SIMVVentilator parameter ranges Flow meterO2(0.1-10L/min) N2O(0.1-10L/min) AIR(0.1-10L/min)Rapid oxygen supply25L/min-75L/minTidal volume(Vt)0, 20 mL ? 1500 mLFrequence?Freq?1bpm ? 100 bpmI/E2:1?1:6PEEP0cmH2O ? 30 cmH2OPressure triggering sensitivity?PTr??20 cmH2O ? 0 cmH2O?Based on PEEP?Flow trigger sensitivity ?FTr?0.5 L/min ? 30 L/minSIGH0(off) ?1/100 ? 5/100Apnea VentilationOFF?5 s ? 60 s?Pressure Limit?20 cmH2O ? 100 cmH2OMonitored Parameters Frequence?Freq?0 /min ? 100 /minTidal volume(Vt)0 mL ? 2000 mLMV0 L/min ? 100 L/minOxygen concentration?15 % ? 100 %?Graphical display: P-T(pressure ? time) F-T(flow ? time)??Size?Wooden case packing size?L 845*W 900*H 1525mm , GW?151KG ; NW?102KG?Alarm and protection?The AC power failure alarm Power failure or no connection Internal battery backup low voltage alarm?11.3?0.3VNo tidal volume?5Ml within 6s?High oxygen concentration alarm?Low oxygen concentration alarm?19%-100%?18%-99%?High Airway ?pressure alarm?Low Airway ?pressure alarm?High Minute Volume alarm?Low Minute Volume alarm?Continuous Pressure alarm?20cmH2O-100cmH2O?0cmH2O-20cmH2O?Adult(5L/min-20L/min) Paed(1L/min-15L/min?0-10L/min)?(PEEP+1.5kPa) over 16s?Suffocation warning5s-60s no spontaneous ventilationThe maximum limited pressure?12.5 kPa?Fan error?Oxygen deficit?Show on screen?Show on screen?Working conditions Gas sourceO2,N2O,AIRPressur
