Best Selling Conveying UV Curing Tunnel Drying Machine For Led Electronic Components Coating Allschoolabs -

Description

Overview

Essential details

Type:: Drying Oven

Application:: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition:: New

Place of Origin:: Hubei, China

Voltage:: AC380V

Power:: 9KVA

Dimension(L*W*H):: W1700mm*D670mm*H1550mm

Key Selling Points:: Energy saving

Warranty:: 1 Year

Weight (KG):: 0

Applicable Industries:: Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company, Other

Showroom Location:: None

Marketing Type:: New Product 2020

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 1 Year

Core Components:: Motor, Other

Material:: SUS304, Other

Product name:: Conveying UV Curing Tunnel Drying Machine

Material::: SS41# steel plate

Cooling method::: Forced cooling ventilation system

Heating source::: UV light

After-sales Service Provided:: Online Service

After Warranty Service:: Online Service

Keywords:: Conveying UV Curing Tunnel Drying Machine

Supply Ability

Supply Ability: 80 Set/Sets per Month

Packaging & delivery

Packaging Details

Port

Picture Example:

Lead time:

Quantity(sets)	1 – 3	>3
Lead time (days)	30	To be negotiated

Product Description

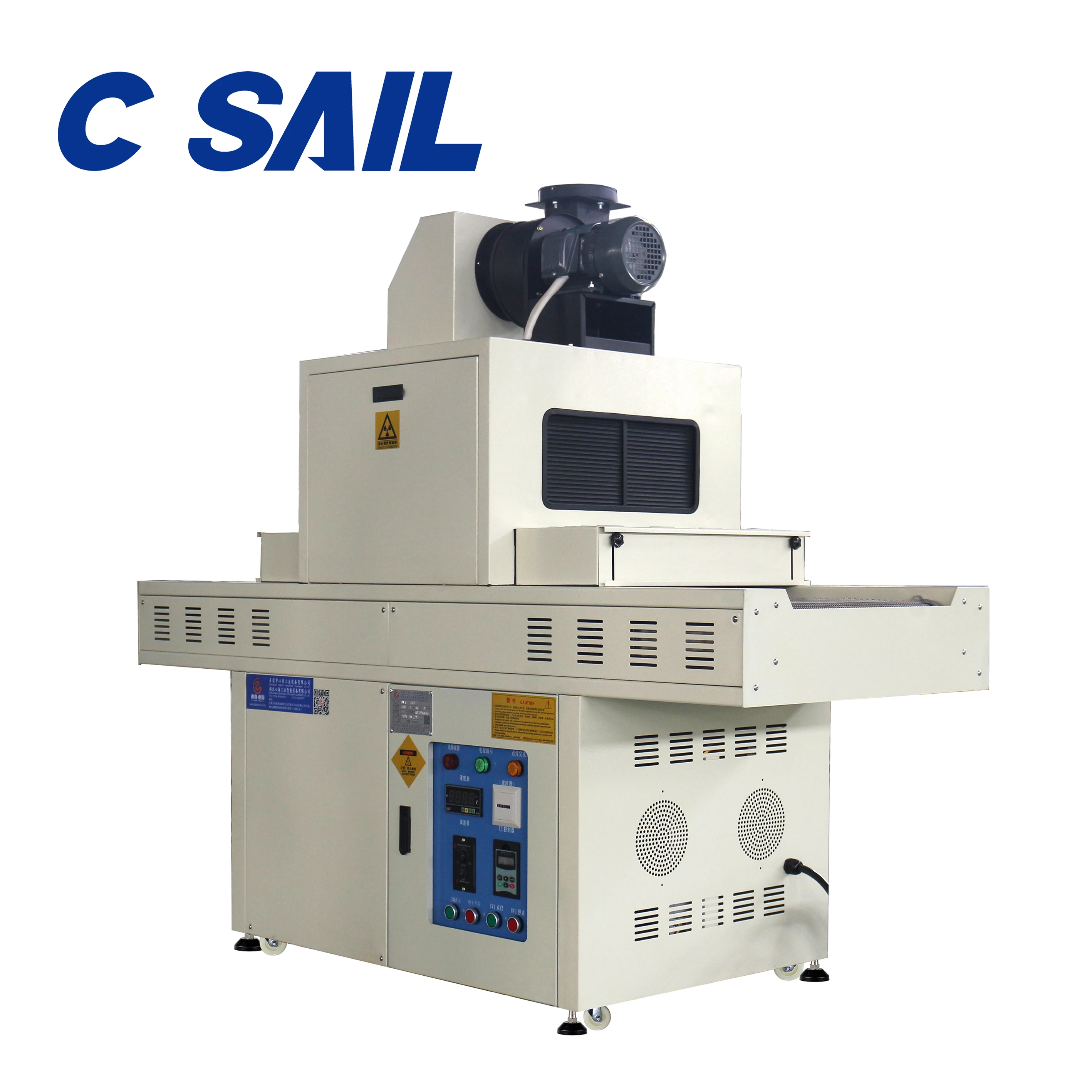

Product Type:	Best Selling Conveying UV Curing Tunnel Drying Machine For Led Electronic Components Coating
Model No.:	UVA-361
Power:	AC380V 3φ 50HZ 9KVA
Size:	L1700mmW670mmH1550mm(Reference) Valid Irradiate Length:300mm Transport mesh width:400mm 800±20mm from the Transport mesh to the floor The lamp irradiation height can be adjusted from 10 to 50mm
UV system:	1,1pcs of 3.6KW UV lamp, The sparkle Length is 300mm,120W/CM. Equipped with electronic ballast. Compared with the traditional ballast, the effective energy saving is 30% 2,The exposure strength can be freely adjusted between 60W-120W 3, Energy can be freely adjusted according to actual needs, effectively extending the service life time of the lamp 4, The power is adjustable from 30% to 100%, and the lamps are installed horizontally on the conveying network.
Inner Material:	SS41# steel plate
Outer Material:	SS41# steel plate, baking after anti-rust treatment.
Cooling method:	Forced cooling ventilation system
Safety Device:	All the components do meet international safety standards.
Remark:	All the above information can be customized as per the client’s demands.

Company Information

Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal,vacuum drying ovens ,non-standard automation equipment. our main products: industrial hot air ovens ,Non-oxidation ovens , Non-dust ovens,Energy saving high-temperature ovens ,Tunnel IR hot air dryers ,Tunnel microwave drying machines ,Air energy hot air drying machines ,Vacuum freeze dryers ,Vacuum microwave drying machines ,Vacuum/nitrogen-filled oven,UV light solid machine,UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace,Vacuum tunnel dryer and non-standard automation equipment,etc.

Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering. In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.

Certificates&Honor

We have successfully achieved ISO9001 quality management system certificates and more than 10 certificates of utility model patents.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.

Exhibition&Partner

Our advantages

Our company advantages as below:

1. Cooperate with a lot of big customers more than 15 years

2. Experience in doing business with big customers, as HUAWEI, GREE, TOSHIBA etc

3. Having a professional R&d team, design for new products development

4. Factory audited by CE & ISO

5. Quick and stable delivery time

6. Strong and solid packaging

7. OEM,ODM acceptable

8. fast response

9, QC inspection process

Production&Delivery

FAQ

Q: Are you trading company or manufacture?

A: We are both manufacture and trading company.

We have over 15 years’ professional experience as an industrial drying equipment manufacturer.

Q: Do you provide OEM ODM service?

A: Yes. We have our own R&D team to customize your machine plan.

Q: How about the production capacity of your company?

A: Our factory covers area about 5000M² and produces machines 1500+ sets per year.

Q: How could we trust you and your company for the first transaction?

A: Our company has more than 15 years professional experience. We cooperate with a lot of big customers, such Panasonic, Threebond, Hisilicon, HUAWAEI. Welcome to our company and watch our plant production condition any time.

Q:What kind of certificate do you have?

A:CE&ISO

Q: How long is your warranty?

A: One year after the arrival of the goods.

Q: What about your delivery time?

A: Normally within 25 working days against down payment.

Q: What about the package of your export product?

A: We use standard export wooden case with foam inside.

Q: Can we visit the factory?

A: Yes, welcome. We have two factories, one is in Dongguan, Guangdong Province; The other is in Xiangyang, Hubei Province.

Q: How to contact you?

A: You can view our website: http://indusdryoven.com
