- Type:
-
Drying Oven
- Application:
-
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Wide application
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
AC380V
- Dimension(L*W*H):
-
W2500mm*D950mm*H1950mm
- Key Selling Points:
-
Remote Monitoring
- Warranty:
-
1 Year
- Weight (KG):
-
0
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company, Other
- Showroom Location:
-
None
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Material:
-
SUS304, Other
- Product name:
-
Hot Air Circulation System High temperature aging test Machine
- Temp. Range::
-
RT~ 100℃
- Temp. Uniformity::
-
±2℃%
- Temp. control Accuracy::
-
±1℃
- After-sales Service Provided::
-
Online Support
- After warranty service::
-
Online Support
- Keywords:
-
Trolley Type High Temperature Aging Test Machine
- Supply Ability
- 50 Set/Sets per Month
- Packaging Details
Inner package: soft film with foam
Outer package: standard export wooden Box
Strong package for loading, uploading and long-distance shipment
- Port
Shenzhen/Shanghai/Ningbo port
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 3 >3 Lead time (days) 30 To be negotiated

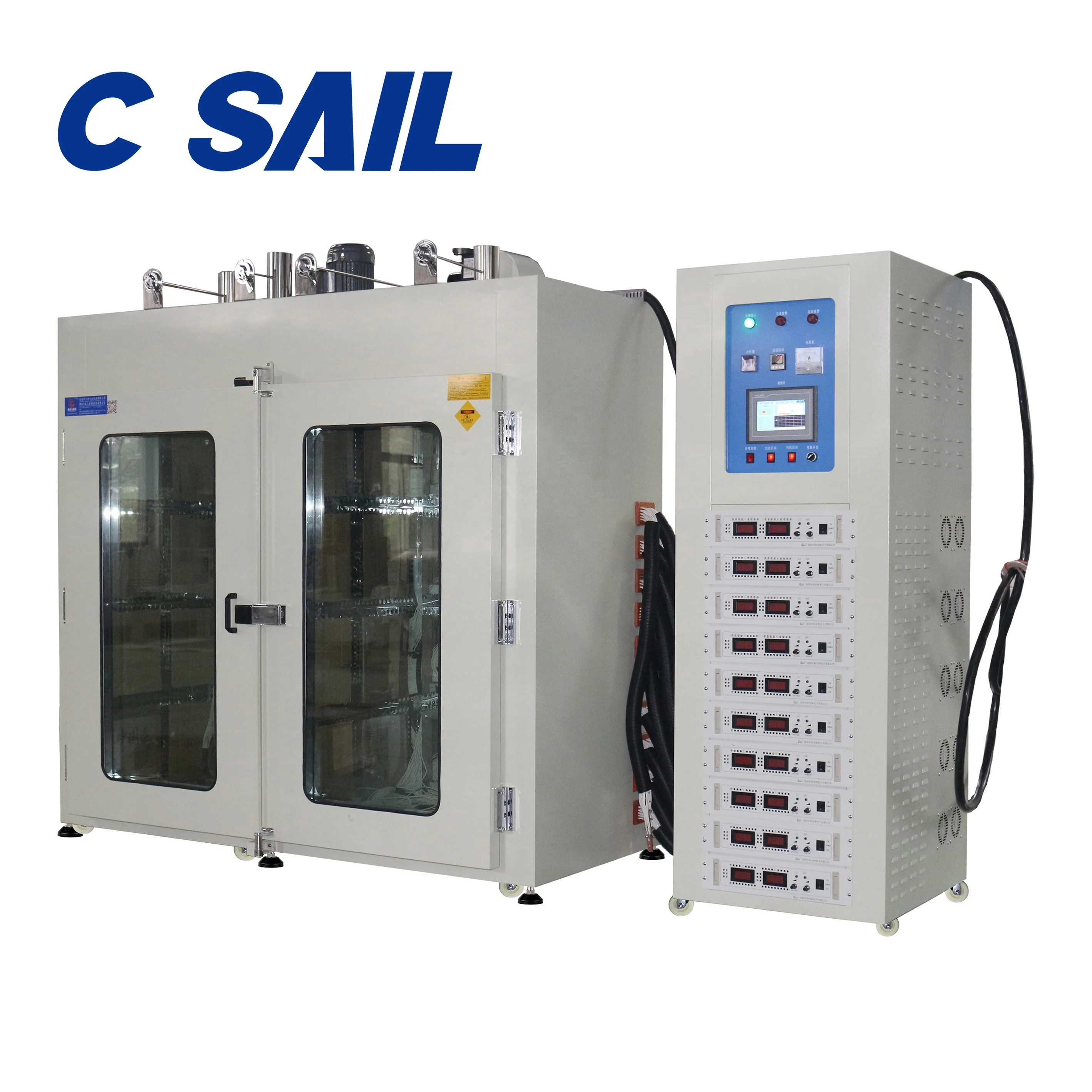

| Product Type: |
Best-selling Industrial Hot Air Circulation System Trolley Type High Temperature Aging Test Machine |
| Model No.: |
LSCO-9F |
| Power: |
AC380V 3φ 50HZ 10KVA |
| Inner Size: |
W1800mm×D800mm×H1500mm |
| Outer Size: |
W2500mm×D950mm×H1950mm |
| Capacity: | 2160L |
| Inner Material: | SUS430# Stainless steel sheet |
| Outer Material: | SS41# cold-rolled sheet, baking after anti-static treatment |
| Seal: | High temperature resistance silicon sealing strip |
| Temp. Range: | RT~ 100℃, normally used 50℃ |
| Heating Rising Time: | about 10 mins from RT to 50℃ ( empty testing) |
| Temp. Uniformity: |
±2% |
| Air Supply: | Force Hot Air Supply, special wind pathway design |

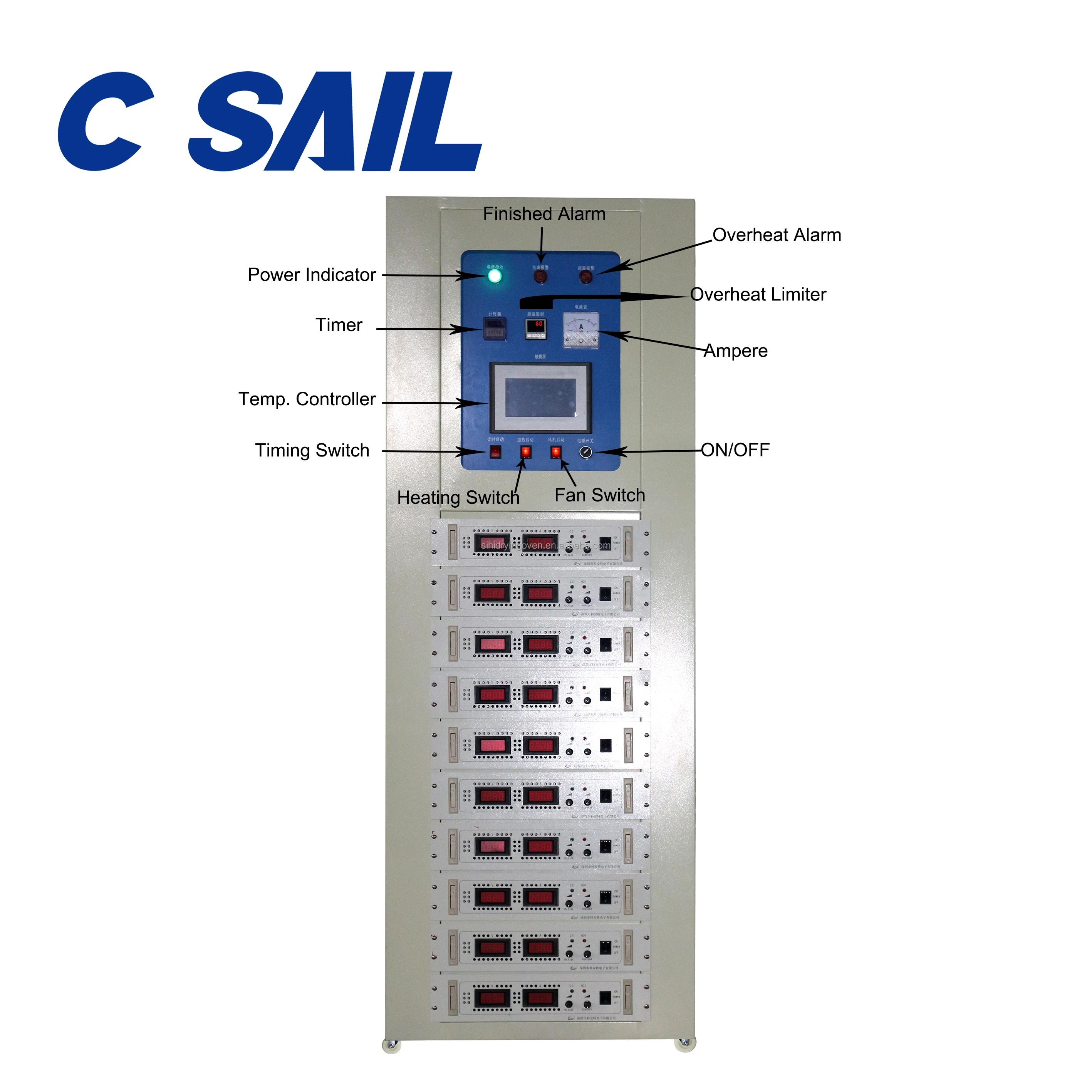

| Controller: |
7inch touch screen,PID automatic calculation, SSR output, Temperature sensor, digital display and setting, Non paper record, Remote monitoring |
| Safety Device: | All the components do meet international safety standards. |
| Remark: | All the above information can be customized as per the clients’ demand. |
Dongguan Xinzhou Industrial Equipment Co., Ltd., founded in 2005, which is a research and development, production and marketing company with photothermal, vacuum drying ovens, non-standard automation equipment. our main products: industrial hot air ovens, Non-oxidation ovens, Non-dust ovens, Energy saving high-temperature ovens, Tunnel IR hot air dryers, Tunnel microwave drying machines, Air energy hot air drying machines, Vacuum freeze dryers, Vacuum microwave drying machines, Vacuum/nitrogen-filled oven, UV light solid machine, UV electric power supply, High-temperature aging test machine, High-temperature vacuum fusion welding furnace, Vacuum tunnel dryer and non-standard automation equipment, etc.
Hubei Xinhai Industrial Intelligent Equipment Co., Ltd is wholly-owned subsidiaries of Dongguan Xinzhou Industrial Equipment Co., Ltd, which is located in the economic tech development zone of Yicheng, Xiangyang, Hubei Province, with 9000CM2 production area. It has a complete production system from R&D design, incoming material inspection, parts processing, sheet metal, coating, assembly, testing and service follow-up. In 2018, we successfully established a research and development center in cooperation with xiangyang college of mechanical engineering.
We have successfully achieved ISO9001 quality management system certificates and more than 10 certificates of utility model patents.
In 2021, Hubei Xinhai passed the High & New Technology Enterprise certification and got the certificate of AAA Credit Enterprise in China.
Our company advantages as below:
