Description

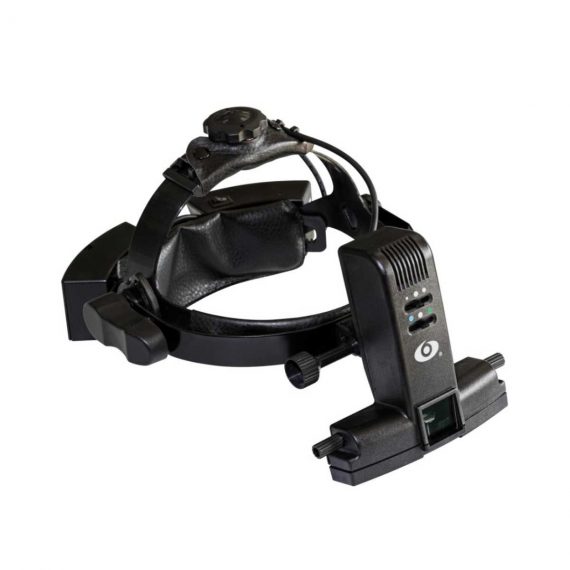

Ophthalmoscope Features:

LED bulb(low-temperature,low-pressure,high-brightness) with long lifetime to make the illumination uniformly and bright. The illumination brightness can be adjusted continuously.
Imaging clearly,strong dimensional sense and large field of view range.The main body part of this device adopts engineering plastics and is designed to be compact and exquisite.
Super lightweight design, reduce fatigue,operation is very convenient.
The portable power supply is suitable for surgery, ward round and consultation.
This device is equipped with color filter,teaching mirror and sclera depressor to be more handy in operation.

Technical Specifications:

Pupilary Adjustment
52mm～74mm adjustable

Intensity of Illumination
continuous adjustment with the maximum intensity no less than 500Lx

Headband
520～640mm in circumference, 85～125mm in depth

Light Spots
Big spot, middle spot  and small spot

Filters
Red-free, white and cobalt blue

Light Source
LED light

Source of Power
Li+ battery, DC 7.4V

AC 100～240V, 50/60Hz

Input Power
Battery charger: 15 VA

AC charger: 50VA

Dimension of Main Part
142mm × 48mm × 128mm（long×breadth×high）

Weight of Main Part
230g
