Product Description
CDR-5A Capsule & Tablet Counting Machine
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.
Remarks
* Well design structure, easy to maintain and clean.
* All parts are easy to exchange, including PC boards of control system.
* All product contact parts are made of SUS 316.
* Smooth rotary system with computerized counter make high accuracy.
* Infrared recognize system can recognize the transparent soft gel capsule. Even though after the long time running, It still can penetrates the dust built by the naked tablet.
* One conveyor for bottles transmission with speed variation.
* All parts are easy to exchange, including PC boards of control system.
* All product contact parts are made of SUS 316.
* Smooth rotary system with computerized counter make high accuracy.
* Infrared recognize system can recognize the transparent soft gel capsule. Even though after the long time running, It still can penetrates the dust built by the naked tablet.
* One conveyor for bottles transmission with speed variation.
Specifications
|

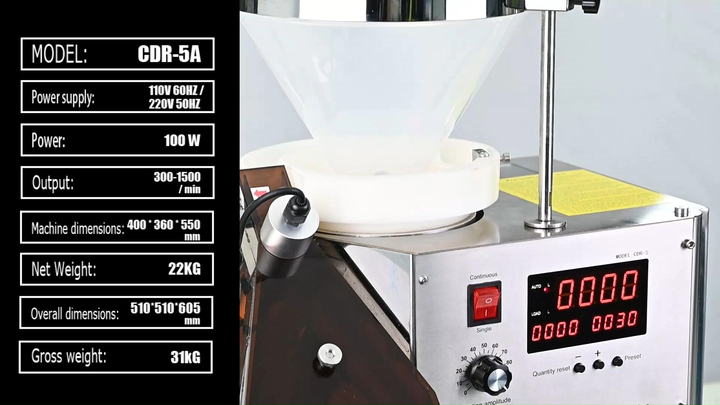

Model
|
CDR-5A
|
CDR-3A
|
YL-4
|
|
Size of Tablet
|
Max. Dia.12mm
|
Max. Dia.20mm
|
Max. Dia.23mm
|
|
Size of Bottle
|
15-500ML
|
15-500ML
|
15-500ML
|
|
Output
|
500-1500pcs/min
|
1000-2000pcs/min
|
2000-4000pcs/min
|
|
Power
|
100W
|
150W
|
200W
|
|
Voltage
|
110V 60Hz / 220V 50Hz
|
110V 60Hz / 220V 50Hz
|
110V 60Hz / 220V 50Hz
|
|
Weight
|
22kg
|
65kg
|
75kg
|
|
Dimensions
|
400x360x550mm
|
820x830x350mm
|
980x790x930mm
|
Why Choose Us
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution.
4. Make a machine layout for customers based on customers’ factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution.
4. Make a machine layout for customers based on customers’ factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.

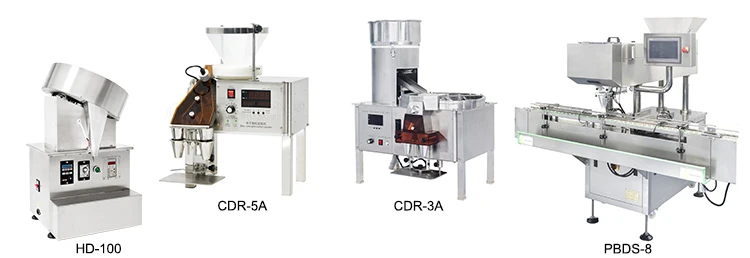

Related Products
Let the machine work for you!
Dear customer,
Maybe you have only bought one of our machines, but you shall know about our company’s complete production line, which will definitely satisfy you.

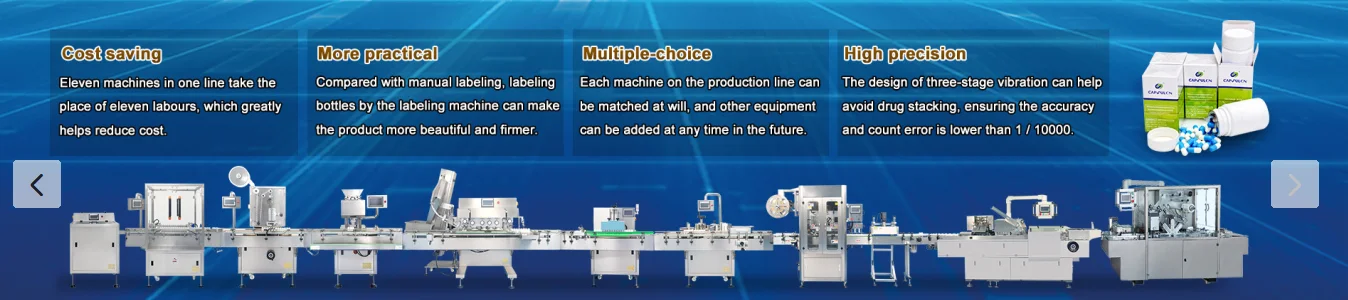

Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade ofproduct packaging.
If you have any questions, please contact us at any time.
Company Profile
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui ‘an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don’t mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don’t trust us, we suggest using Alibaba Trade AssuranceService for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click “send” to send us inquiries.
