- Warranty:
-
1 Year
- Customized support:
-
OBM, ODM, OEM
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Hongjin
- Power:
-
Electronic
- Product name:
-
Rubber rotorless vulcanizer
- Application:
-
Widely
- Usage:
-
Suitable
- Keyword:
-
Synchronous Integrated Rubber rotorless vulcanizer Analyzer
- Power supply:
-
220V 50Hz
- Type:
-
Digital
- Weight:
-
30kg
- Color:
-
Customer Required
- Size:
-
Custom Size
- Material:
-
Steel Material
- Packaging Details
Fumigation-free export wooden box
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 5 6 – 15 16 – 20 >20 Lead time (days) 7 10 14 To be negotiated
Product Description.

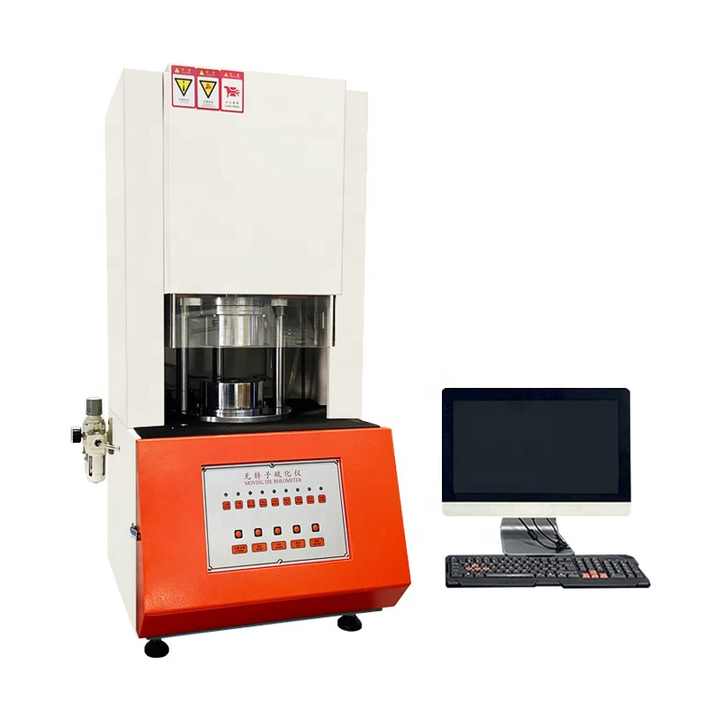

Computer Servo Plastic Torque Vulcanized Rotorless Rubber Industrial Lab No Rotor Moving Die Rheometer Non-rotor vulcanizing instrument is widely used in rubber processing industry to control rubber quality, rapid test and basic
research of rubber.It provides accurate data for rubber optimization formula combination, and can accurately measure the coke time, positive vulcanizing instrument time, vulcanizing index and maximum, minimum torque and other parameters.
High precision and wide range of temperature control. (±0.1°C) .Clock programming function. (set and modify time) Advanced switching power supply, wided range of voltage regulation. Imported integrated circuits and control components. All Chinese characters are displayed. Meet the requirements of GB/T 16584 (vulcanization characteristics of rubber tested by non-rotor vulcanizer) and IS06502. The powerful microprocessor uses high-quality imported chips. On the one hand, computers and microprocessors can take signals from torque sensors and record them onto a graph. At the same time, the computer and the measurement and control module interface to exchange data, and control the temperature of the cavity. The rotorless vulcanizer is designed with a series of interlocking features, including closing plastic glass doors. If the door is not closed, the mold will not close. The mold can be closed only if the door is securely closed. Before you can do your work. In a word, this type of vulcanization instrument compared with othermodels, the performance is more stable, more accurate, inexpensive, full of functions. It is the best instrument for testing rubber properties.
|

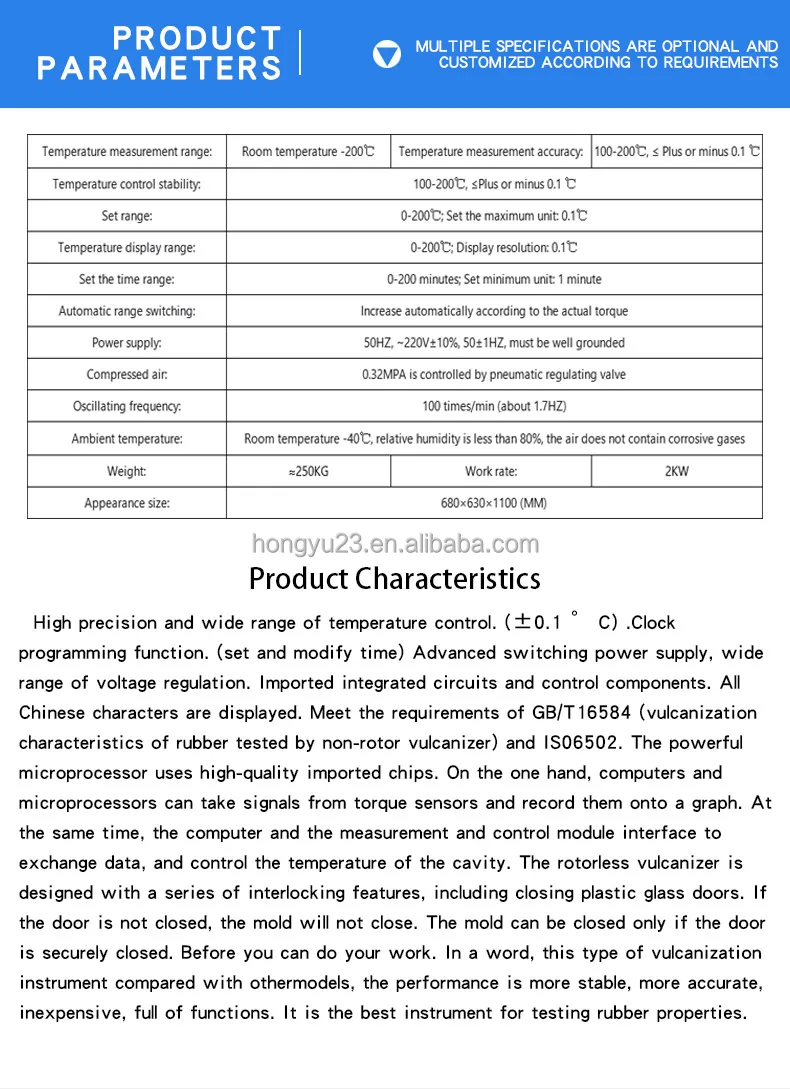

Temperature measurement range:
|
Room temperature -200℃
|
Temperature measurement accuracy.
|
100-200℃, ＜Plus or minus 0.1 ℃
|
||
|
Temperature control stability：
|
100-200℃, ＜Plus or minus 0.1 ℃
|
||||
|
Set range:
|
0-200℃; Set the maximum unit: 0.1℃
|
||||
|
Temperature display range:
|
0-200℃; Display resolution: 0.1℃
|
||||
|
Set the time range:
|
0-200 minutes; Set minimum unit: 1 minute
|
||||
|
Automatic range switching:
|
Increase automatically according to the actual torque
|
||||
|
Power supply:
|
50HZ,-220V±10%, 50±1HZ, must be well grounded
|
||||
|
Compressed air：
|
0.32MPA is controlled by pneumatic regulating valve
|
||||
|
Oscillating frequency：
|
Room temperature-40℃, relative humidity is less than 80%, the air does not contain corrosive gases
|
||||
|
Weight:
|
=250KG
|
Work rate:
|
2KW
|
||
|
Appearance size:
|
680*630*1100 (MM)
|
||||
indicator.
Excellent After sale Service
12 months warranty. Besides, we can help you to repair your problem controller freely, Free
replacement parts, even it’s not from our factory’s. What you need to do is to send us the controller.We can offer operation video
and English operation muanual. We can provide video-con
Feel free to contact
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
https://www.hongjin-group.net/
If you want to know more information…
Please leave a message below and click ” CONTACT SUPPLIER ” Thanks for your time and
attention!
