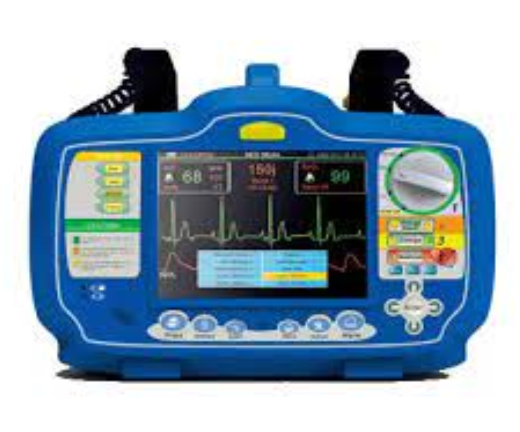

The DM7000 is a
Cardiac Monitor Defibrillator which comfortably meets the needs of the Basic
through to Advanced Life Support Provider. With its integrated Automated External
Defibrillator (AED) and Pulse Oximetry Module, it offers excellent value for
money in one compact and robust unit
Key FeaturesAED Function: Auto
analyze and charge x3 with program energy level selection, screen prompts, and
voice prompts.Energy Selection:
Selectable at 2, 5, 7, 10, 20, 30, 50, 70,100,150, 200, 300, 360 joules.Synchronized Mode:
Synchronizes defibrillator pulse to patient?s R-wave. ?SYNC? message displayed
on monitor.High-resolution
display 7-inch Screen3/5 Lead ECG
MonitoringBiphasic waveformManual and Automated Defibrillation2-360 joule energy
rangeSpO2 functionRechargeable battery
providing 3 hours of ECG monitoring or 100 shocks at 360j50mm Thermal PrinterEasy access
user-friendly front panelRecessed menu buttonsSpecificationsScreen Size: 7 inches (17.7
cm) diagonallySweep Speed: 25mm/secInformation: Heart
Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions and Prompts, Alarm Selection
and Limits, Delivered Energy.Defibrillator Waveform: BiphasicCharge Time: Less than
7 seconds with a new fully charged battery.Energy Display:
Monitor display indicates both selected and delivered energy.Charge Prompt Type:
Voice and visual prompts.Electrode Impedance
Measurement Range: 0-250 ohms.Patient Connection:
3-lead ECG cable, or 5-lead ECG cable, paddles.Lead Selection:
Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.ECG Size: 0.25, 0.5,
1, 1.5, 2, 4 cm/mV display on monitor.Heart Rate: 20-300BPM.Heart Rate Alarm:
On/Off displayed on monitor, user-selectable.Smart Alarms:
Beeper/voice prompts indicate shockable rhythm.Battery Type: Rechargeable,
Ni-MH battery, 12V.Operating Time: For a
new, fully charged battery: 60 defibrillator discharges at maximum energy, or 3
hours minimum of continuous ECG monitoring. SpO2 Module Measurement Range:
30-100%, ?2% between 80%-90%, others ?5%Alarm Range: User set
high limit and low limit.Alarm Accuracy: ?10%
within setting values.
