Digital Portable micron dry film paint coating thickness gauge meter
Digital Portable micron dry film paint coating thickness gauge meter
The instrument is a portable measuring instrument, it can quickly, without injury, precision coating, coating thickness measurement. Can be used for laboratory, can also be used for the project site. By using different probes, you can also meet the needs of a variety of measurements. The instrument can be widely used in the manufacturing, metal processing industry, chemical industry, commodity inspection, and other testing areas. Is the material protection professional necessary equipment.
Technical Parameters:
| Measuring range: | 0 ~ 1250um (other ranges can be customized) |
| Resolution: | 0.1um |
| Minimum surface: | convex 5mm / concave 5mm |
| Minimum measuring area: | 10 × 10mm |
| Thinnest substrate: | 0.4 mm |
| Two point calibration: | ± [(1% ~ 3% H)] H + 1.5 |
| Metric / Imperial: | Convertible |
| Body size: | 102mm x 66mm x24mm |
Feature
1. Can quickly and automatically identify iron matrix and non-iron matrix;
2. Can be used for single-point calibration and two-point calibration of the two methods of calibration equipment;
3. The operation of a beep prompt;
4. Two shutdown modes: manual shutdown mode and automatic shutdown mode;
5. The battery voltage indication: low voltage prompt.

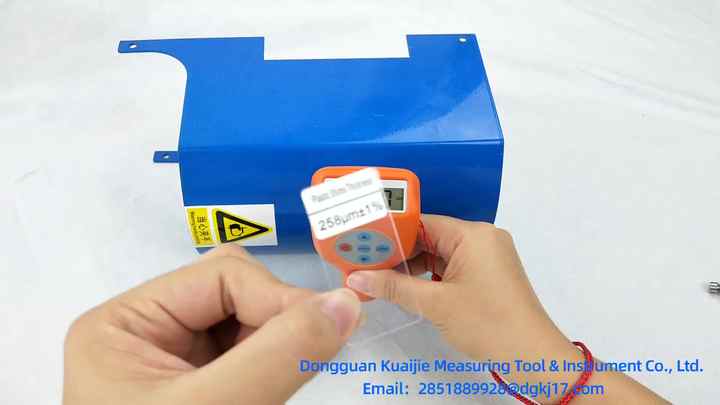

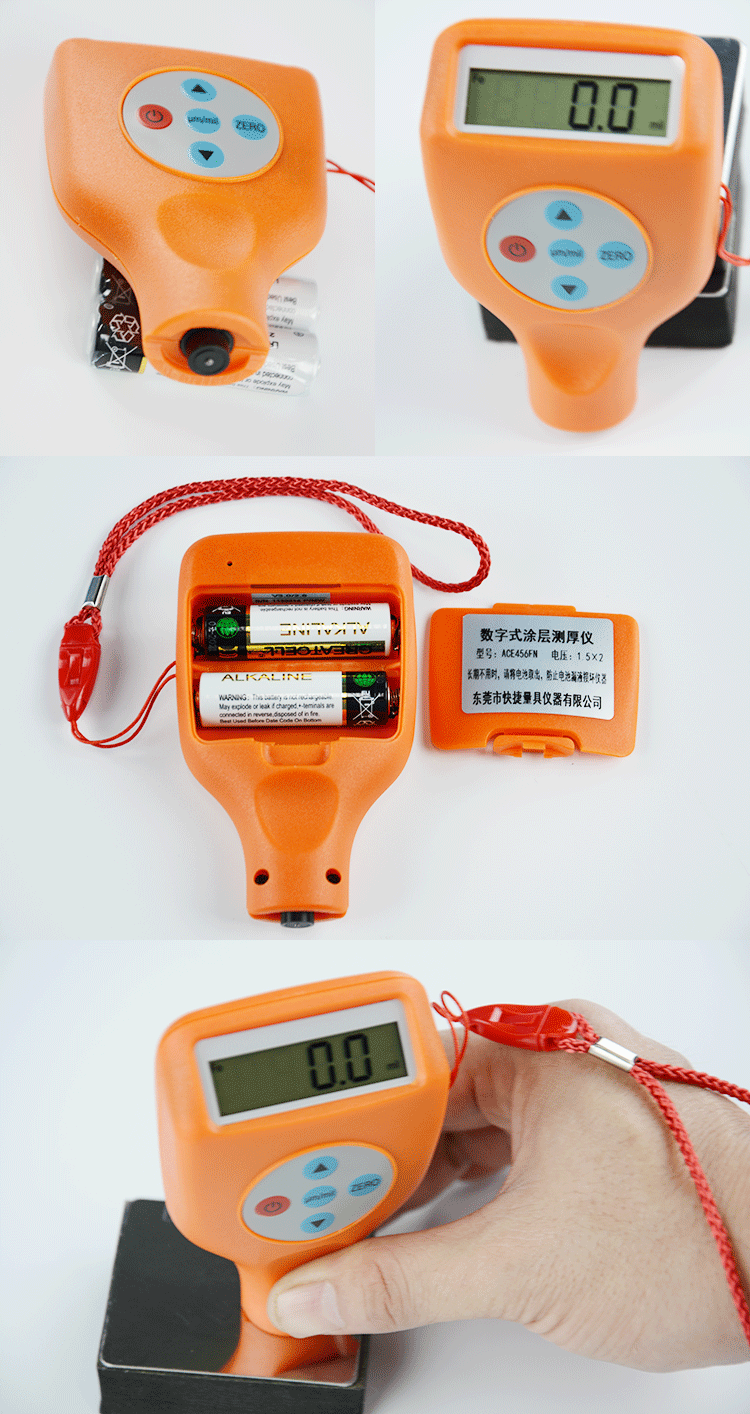

Product Show

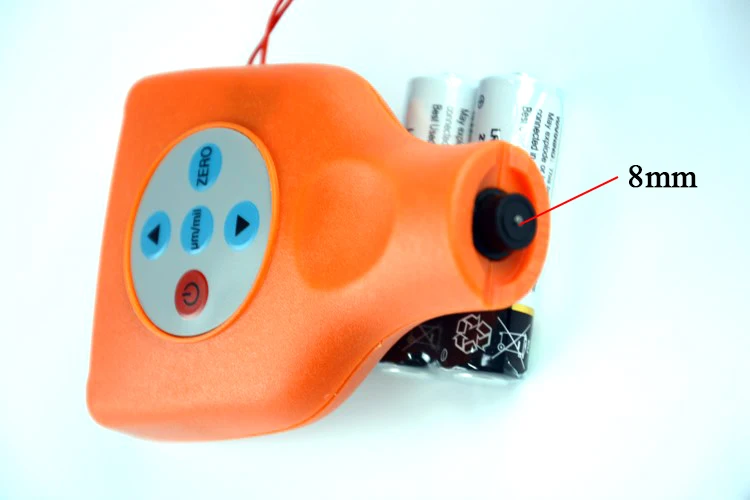

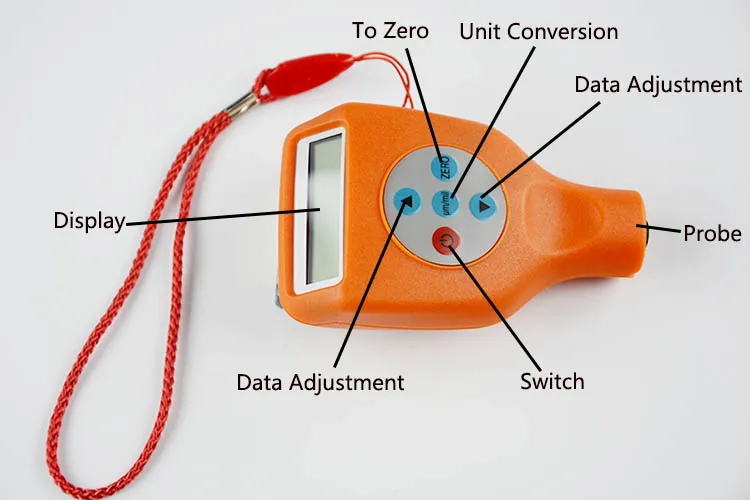

Details
We have several different models:
| Ordering Guide | Measurement methods | Model | Dimensions | |
| Fe iron metal base (steel, iron) non-magnetic coating | Integral stype | Magnetic method (F-type probe) | ACE456F1 | 102mm*66mm*24mm |
| Split type | ACE456F2 | 102mm*66mm*25mm | ||
| NFe Non-ferrous metal (aluminum copper) on the insulation coating | Integral stype | Eddy current method (N-type probe) | ACE456N1 | 102mm*66mm*26mm |
| Split type | ACE456N2 | 102mm*66mm*27mm | ||
| Fe/NFe all metal(Dual purpose) | Integral stype | Magnetic method (F-type probe) Eddy current method (N-type probe) |
ACE456FN | 102mm*66mm*28mm |
| Split type | ACE456FN2 | 102mm*66mm*29mm | ||

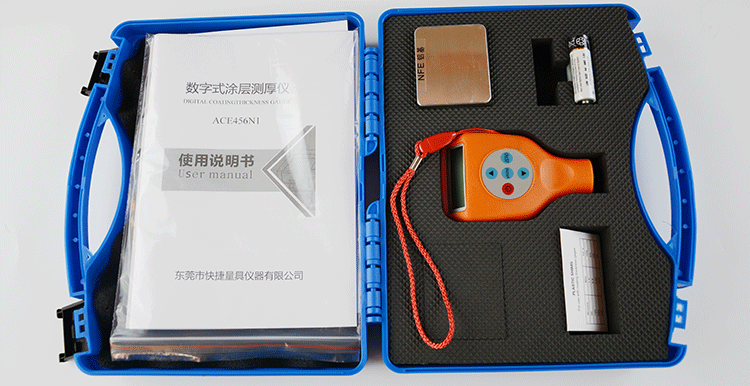

Standard Configuration
Correction / Aluminum substrate / Battery / Instructions/Warranty Card
