Description

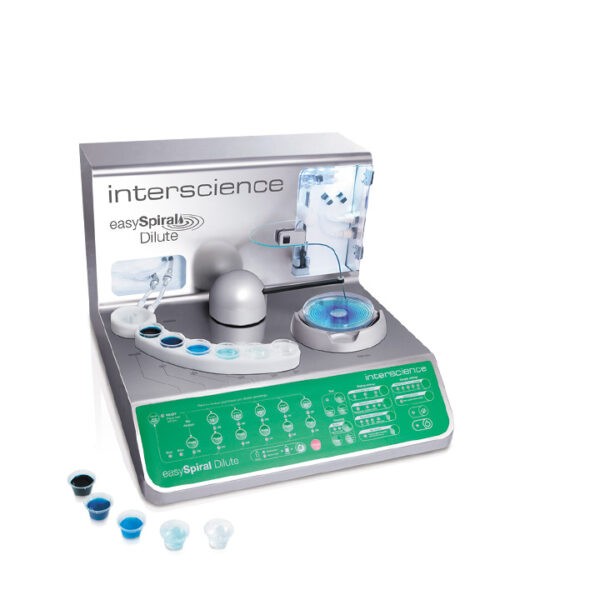

easySpiral Dilute Automatic dilutor and plater
Plater and dilution features
Model: Ref 414 000
Manufacturer: INTERSCIENCE






easySpiral Dilute is an automatic diluter and plater of Petri dishes. It allows 1/10th serial dilutions and plating up to 6 log. dilution on 1 single Petri dish. For a sample of 30 to 1 x 1012 bacteria, no more manual dilutions and plating is automatic.
Features of easySpiral Dilute Automatic dilutor and plater

Automatic cycle of 5 successive dilutions at 1/10th
Plating modes: exponential, constant, circle, pour plate
Counting range: from 30 to 1×1012 CFU/mL
Plating cycle time: 134 seconds

50% time-saving and consumables savings
easySpiral Dilute saves you 50% in consumables and 50% in time. 134 seconds for plating (1 disinfection + 5 dilutions + 1 plating of a dilution).
Example on 50 samples with a 10-7 dilution and a 10-5, 10-6 and 10-7 plating

Manual plating method requires repetitive actions: at least 4 dilutions and 4 successive platings are necessary to obtain one good and readable Petri dish.
With Automatic Spiral method, make your analyses on 1 single Petri dish!
The Spiral method
With the Spiral method, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107 CFU/mL on 1 single Petri dish !
One touch plating
Plate easily and quickly your 55, 90 and 150 mm Petri dishes.
Choose from 4 plating modes: exponential, constant, circle and pour.
Exponential mode
The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.
Obtain a countable Petri dish from 100 to 1 x 1012 CFU/mL

Constant mode
The constant mode is a homogenous surface deposition plating. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.
Colony counting is then easy because there are no colonies on the edges of the Petri dish.

Circle mode
The circle mode is plating 3 or 6 dilutions in surface on 1 Petri dish. The volumes are 10 µL for the inner circle, 16 µL for the middle circle and 25 µL for the outer circle.
Great savings on Petri dishes!


Pour mode
The pour mode is a homogeneous deposition in pour plate mode.
easySpiral Dilute deposits one sample drop at the bottom of an empty Petri dish. Then the user adds the molten agar on top and homogenizes it with the sample.
You can plate 50 µL, 100 µL, 200 µL or program your personalized volume.
Colony counting is easier in case of invasive colonies. Pharmacopea compliant.
