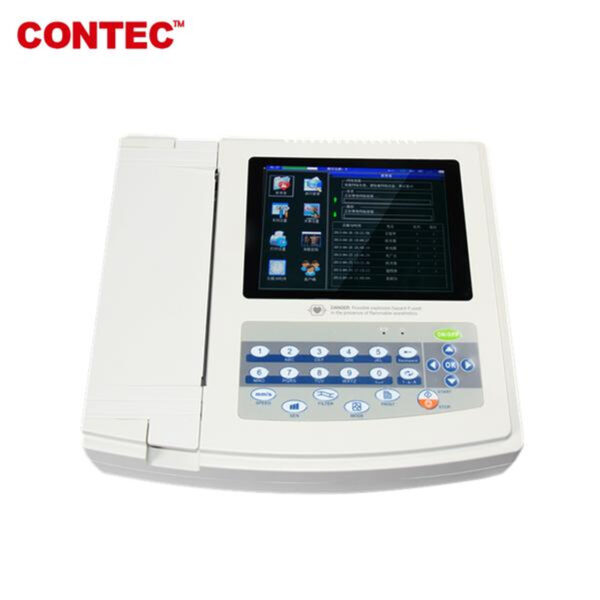

ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec
GZ Industrial Supplies Nigeria Supplies a wide range of Medical supplies and equipment which form  an increasingly important element of a healthcare professional’s role. Our ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.
Function of ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
Multiply printing modes and formats, including auto 12×1, auto 6×2+1, auto 6×2+1_H, auto 6×2, auto 6x2_H, auto 3×4+1, auto 3×4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.

With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.

Built-in memory stores up to 1000 cases, convenient for case review and statistic.
Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.

Performance of ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec

Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2% Noise level: ≤15µVp-p Input circuit current: ≤50nA Input impedance: ≥50MΩ Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof applied part Recording mode: thermal printing system Paper size: 210mm(W)×20m(L) Sampling frequency: 1000Hz EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB) Paper speed: Auto: 25, 50mm/s, ±5% Rhythm: 25, 50mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5% Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record: set record according to record format, manually switching leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Power supply: AC: 100V~240V(50/60Hz) DC: 14.8V/3500mAh rechargeable lithium battery Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V Waterproof degree: IPX0 Working mode: continuous working Accessories of ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec Standard: A lead cable A limb electrode A chest electrode A thermal recording paper A power cord An earth wire A user manual Optional ECG-Sync software+USB cable ECG electrode Bag Conductive paste USB cable 3G card Wi-Fi card Remote Operation Guide Physical properties of ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen Contec Working environment Temperature: 5℃~40℃ Relative humidity: 25%~95%(non-condensing) Atmospheric pressure: 700hPa~1060hPa Transport and storage environment Temperature: -40℃~+55℃ Relative humidity: ≤95% Atmospheric pressure: 500hPa~1060hPa Dimension: 340mm(L) × 320mm(W) × 85mm(H) Weigh: 3.2Kg   Please contact us for product availability.
