Description

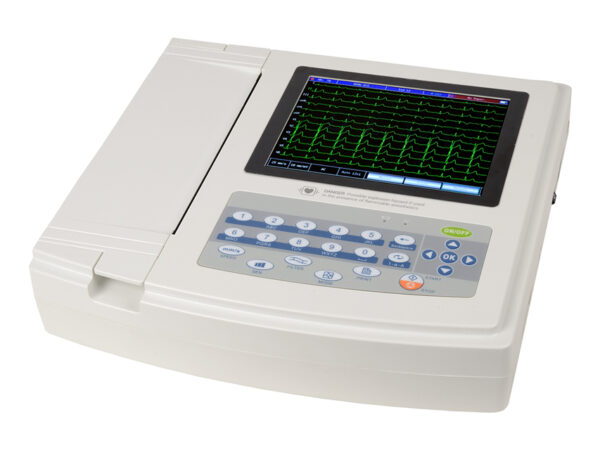

ELECTROCARDIOGRAPHY MACHINE
Model: ECG-1201G (12-CHANNEL)
Manufacturer: PERLONG MEDICAL EQUIPMENT
ECG-1201G is an electrocardiograph collecting 12-lead ECG signal simultaneously and printing ECG waveform with thermal printing system. Which features in, recording and displaying ECG waveform with manual or auto mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, optional interface languages(Chinese/English), selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.

FEATURES OF ELECTROCARDIOGRAPHY MACHINE ECG-1201G
Operations

8″ TFT color LCD, clear ECG waveform and working state display, economical to save recording paper.
Operation mode: touch screen and function keys.



Functions

Sync collection for 12-lead ECG, adopt digital signal processing technology to get high-quality ECG waveforms via AC filter, baseline filter and EMG filter of ECG signal.
Sync display 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient to contrast.
Multiply printing modes and formats, including manual, 12*1, 6*2+1(rhythm lead), 6*2, 3×4+2(rhythm lead), rhythm 12, rhythm 10, rhythm 8, rhythm 6, etc. Waveform length printed can be adjusted, and with timing print function, which meets different requirements.
Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
Built-in memory stores up to 1000 cases, convenient for case review and statistic.
Multi-language(Chinese, English, Turkish, Portuguese, German, Russian, Kazakhstan) interface and

Power Supply

AC/DC, and in optimal DC state, built-in rechargeable lithium battery can continuously work for 10h, print for more than 3h and 300-ECG, which meets the requirements of visiting a patient at home and body examination.

Parameters

Working environment

Temperature: 5℃~40℃

Relative humidity: 20%~80%(non-condensing)

Atmospheric pressure: 700hPa~1060hPa

Transport and storage environment

Temperature: -40℃~+55℃

Relative humidity: ≤95%

Atmospheric pressure: 500hPa~1060hPa

Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:> 3.2s
Patient leak current: <10µA Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5 %, standard sensitivity: 10mm/mV±2% Noise level: ≤15µVp-p Input circuit current: ≤50nA Input impedance: ≥50MΩ(10Hz) Sampling accuracy: 12-bit Safety classification: class Ⅰ, type CF and defibrillation-proof applied part Recording mode: thermal printing system Paper size: 210mm(W)×20m(L) Sampling frequency: 1000Hz Polarizing voltage: ±500mV EMG interference filter: 25Hz/35Hz (-3dB) AC filter: 50Hz/60Hz(-20dB) Paper speed: Auto record: 25, 50 mm/s, ±5% Rhythm record: 25, 50 mm/s, ±5% Manual record: 5, 6.25, 10, 12.5, 25, 50 mm/s, ±5% Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record: set record according to record format, manually switching leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1). Power supply: AC: 100V~240V(50/60Hz) DC: 7.4V/2000mAh rechargeable lithium battery Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V Waterproof degree: IPX0 Working mode: continuous working Dimension: 340mm(L)×320mm(W)×85mm(H) Weight: about 3.2Kg Accessories A lead cable A limb electrode A chest electrode A thermal recording paper A power cord An earth wire A user manual Optional: ECG-Sync software+USB cable Disposable ECG electrode Bag Conductive paste USB cable 3G card Wi-Fi card Remote Operation Guide   PRODUCT SHOW
