Description

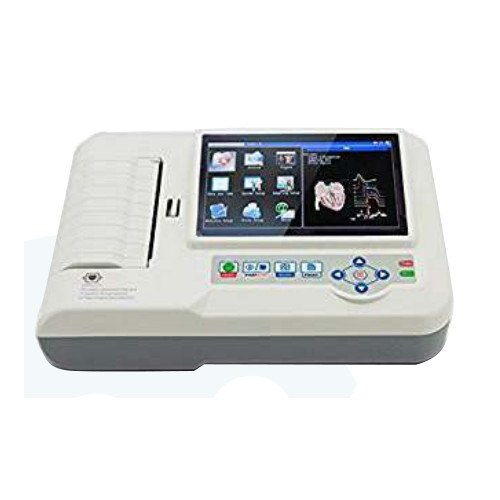

ELECTROCARDIOGRAPHY MACHINE
Model: ECG-601G (6-Channel)
Manufacturer: PERLONG MEDICAL EQUIPMENT

ECG-601G is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.


FEATURES OF ELECTROCARDIOGRAPHY MACHINE ECG-601G

Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
Full-digital filter design, anti-baseline drift, AC and EMG interference.
Adjust the baseline automatically, optimize the print setting and optional rhythm leads.
In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor’s burden and improves work efficiency.
Sync collection for 12-lead ECG, multiply printing formats, including 2×6+1(rhythm lead), 2×6, 3×4, 3×4+1(rhythm lead), 4×3, 4×3+1(rhythm lead), 6×2, 6×2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
Display of 3/6/12-lead ECG, “Lead off” and “Lack of paper” on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.
Time print can be set to every 1/2/3/5/10/20/30/60 minutes.
Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), “Save no print”(only save case but not print waveform).
AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in appointed time.
Store more than 1000 cases, convenient for case review and statistic.
Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakstan, Russian and Ukrainian) interface and report.

SPECIFICATIONS OF ELECTROCARDIOGRAPHY MACHINE ECG-601G

MODEL
ECG-601G

Input mode
floating and defibrillation protection

Frequency response
0.05Hz ~ 150Hz(-3dB~+0.4dB)

CMRR
>60dB, >100dB(add filter)

Time
 constant:≥ 3.2s

Patient leak current
<10µA Calibration voltage  1mV Sensitivity 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2% Noise level <15µVp-p Input circuit current ≤50nA Input impedance ≥50MΩ Sampling accuracy  12-bit Safety classification:  class I, type CF and defibrillation-proof applied part Recording mode  thermal printing system Auto record set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record set record according to record format, manually switching leads. Measurement parameters  HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Paper size 80mm(W)×20m(L) Power frequency filter  AC 50Hz/60Hz(-20dB) Sampling frequency 1000Hz EMG interference filter  25Hz/35Hz (-3dB) Paper speed Auto: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5% Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5% Physical characteristic: Dimension: 315mm(L) × 215mm(W) × 92mm(H) Weigh: 1.7Kg Print Recording way: Thermal printing system Specification of recording paper: 110mm(W)×20m(L) High-speed thermal paper Paper speed: Auto-record:25mm/s,50mm/s,error:±5% Rhythm record:25mm/s,50mm/s,error:±5% Manual_record:5mm/s,6.25mm/s,10mm/s,12.5mm/s,25mm/s,50mm/s,100mm/s,error:±5% PRODUCT SHOW
