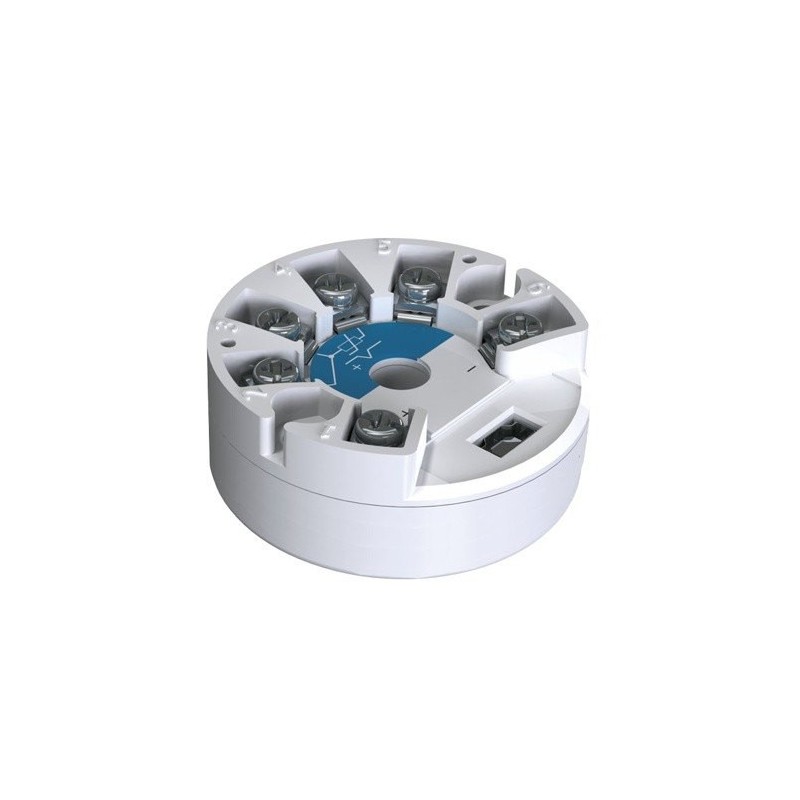

Evikon E2163 Universal 4-20 mA Temperature Transmitter Specifications
Compatible with: RTDs:
                         Pt100, Pt500, Pt1000, Ni100,
                         Cu50, Cu100 etc
                         thermocouples:
                         types B, J, K, L, N, R, S, T etc.
Input connection: 2-, 3- or 4-wire RTD, 2-wire TC
Output connection: 2-wire current-loop 4-20 mA
Resolution: 0,025 %FSO (12 bit)
Accuracy: ±0,25 %FSO for RTDs,
               ±0,5 %FSO for TCs
Supply voltage: 12…36 VDC, nominal 24 VDC
Enclosure: white ABS, Ø44×H18 mm, protection class IP30
Mounting: into DIN Form B head, wall-mount box or on DIN-rail
Mounting holes: 2 × Ø5 mm, distance 33 mm, for DIN B head
Programming interface: mini USB
Operating conditions: -40…+85 °C, 5…95 %RH, non-condensing
EMC conformity (CE marking): according to 2014/30/EU and EN61326-1 requirementsReference Specific ReferencesCondition New productDownloadEvikon E2163 DataSheetEvikon E2163 Universal 4-20 mA Temperature Transmitter Data SheetDownload (1.95M)Evikon E2163 EC ConformityEvikon E2163 Universal 4-20 mA Temperature Transmitter EC Declaration of ConformityDownload (64.32k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E2163 Universal 4-20 mA Temperature TransmitterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
