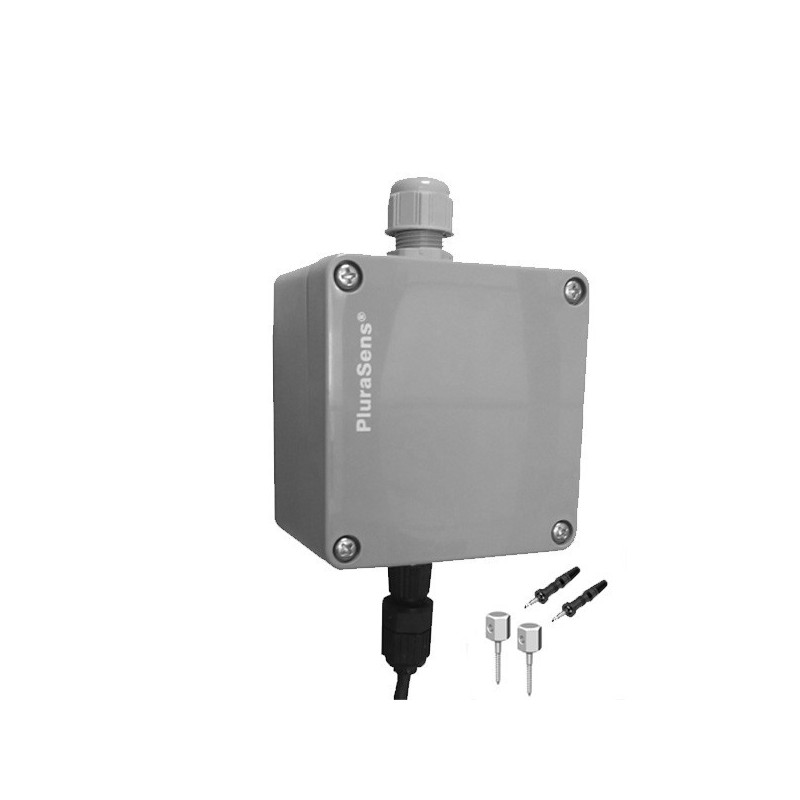

Evikon E2353 Lumber Moisture Transmitter Specifications
Measurement method: conductivity measurement with screw electrodes
Measurement range: 7…20 %H2O
Resolution: 0,01 %H2O
Accuracy: < ±1 %H2O Response time: ~15 s Power supply: 11...30 VDC, nominal 12/24 VDC, Power consumption: < 0,5 W Analog outputs: two 4-20 mA or 0-10 V, user settable Digital interface: RS485, Modbus RTU protocol Enclosure: grey ABS plastic, wall mount, protection class IP65 Dimensions: H82 × W80 × D55 mm Operating conditions: -40...+85 °C, 0...100 %RH Cable connection: industrial M12 connector, IP68 Electrode cable: FEP insulated, -50...+200 °C, thermocompensated, 2 connectors Ø4 mm, L5/10/15 m Screw electrodes: stainless steel, hex KT11, A23-15, A23-25 hole Ø4 mm for connector length 15 / 25 mm Reference Specific ReferencesCondition New productDownloadEvikon E2353 Data SheetEvikon E2353 Lumber Moisture Transmitter Data SheetDownload (69.39k)Evikon E2353 User ManualEvikon E2353 Lumber Moisture Transmitter User ManualDownload (234.71k)Evikon E2353 EC ConformityEvikon E2353 Lumber Moisture Transmitter EC Declaration of ConformityDownload (304.4k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E2353 Lumber Moisture TransmitterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
