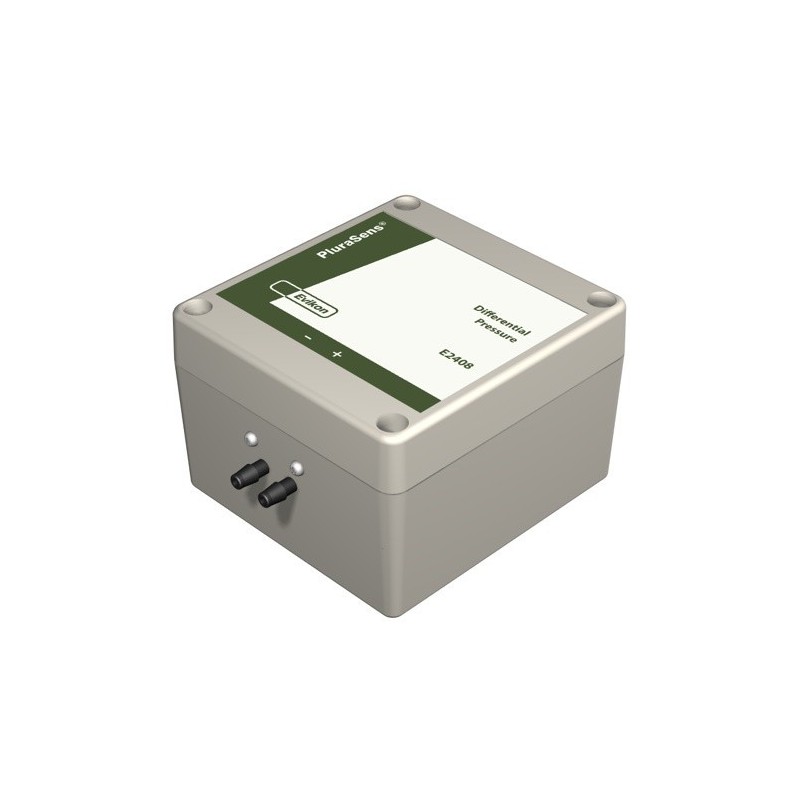

Evikon E2408DF Differential Pressure Transmitter-regulator Specifications
Measured Media: Dry clean air without dust, oil, mist,
                         or aggressive compounds
Range options: E2408-D50 -50…+50 Pa
                       E2408-D500 -500…+500 Pa
Resolution: 0,1% of the range
Sensing method: thermal microflow
Gas flow through sensor: < 0,2 ml / minute / Pa Zero-point accuracy: ± 0,2 Pa, stability < 0,1 Pa / year Span accuracy: ±1,5% of reading @ +23°C, 1000 hPa Temperature effect: < 0,5% of reading per 10°C Atm. pressure effect: < 0,1 % of reading per hPa Power supply: 11...30 VDC or 90...265 VAC Power consumption: < 2 W Digital interface: RS485, Modbus RTU protocol Analog outputs: 2 × 4-20 mA / 0-10 V, user switchable Analog output: scales freely adjustable within range Output relays: 2 × SPST relays (closing contact), 250 VAC / 30 VDC, 5 A max Relay set points: freely adjustable within range Enclosure: Light grey ABS plastic, wall mount, protection class IP65 Dimensions: H85 × W82 × D55 mm Pressure ports:  Ø4,0/4,9 mm, for 4/6 mm hose Operating environment: business and industrial spaces Operating conditions: -20...+70 °C, <99 %RH Reference Specific ReferencesCondition New productDownloadEvikon E2408DF DataSheetEvikon E2408DF Differential Pressure Transmitter-regulator Data SheetDownload (675.34k)Evikon E2408DF User ManualEvikon E2408DF Differential Pressure Transmitter-regulator User ManualDownload (673.57k)Evikon E2408DF CE ConformityEvikon E2408DF Differential Pressure Transmitter-regulator CE Declaration of ConformityDownload (304.77k) Ezubelu A07/01/2021Great product One of the beat item from evikon Write your reviewEvikon E2408DF Differential Pressure Transmitter-regulatorQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
