Stable construction
E2700 series transmitters are carefully engineered for best performance and reliability. The sensor stem is made of a special light metal alloy for corrosion resistance and stiffness. The vertical slot in the stem reduces its clogging by residues in the fuel, facilitates cleaning and maintenance and improves the reaction time compared to closed tube geometry. The electronics box is completely sealed, providing protection from mechanical and corrosive impact.
Adjustable stem length
The stem can be easily cut directly at the installation place up to 20% of the initial length to fit into the tank. Two standard lengths that suit the majority of fuel tanks are L800 mm, which may be cut to 100 mm and L1600 mm, which may be cut to 200 mm. The maximum stem length is limited to L2400 mm.

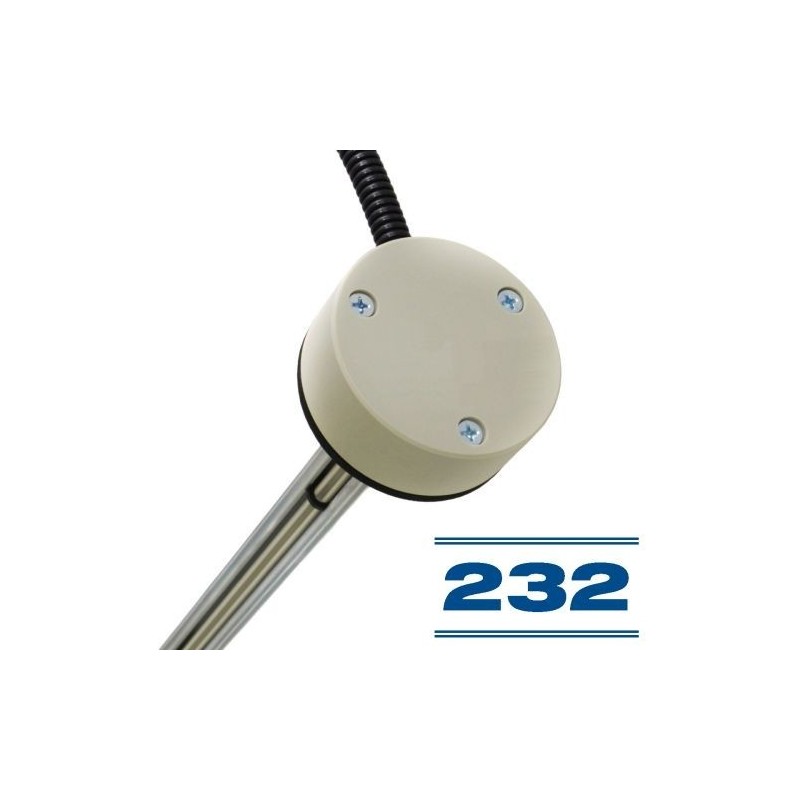

Evikon E2703 Fuel Level Sensor with RS232 Interface Transmitter Specifications
Level sensitivity: > 2 units per mm, typically 15 units per mm
Resolution: < 0.1% of the range, typically 0.07 mm
Ambient temperature effect: < 0.03%, typically ±0.01% of the range per °C
Non-linearity: < 1%, typically <0.1% of the range
Internal calibration system: up to 8 calibration points with linear interpolation
Output range and format: 16-bit resolution, 00000 ... 65535 customers specified units
Digital averaging filter: Adjustable integrating factor, time constant from 1 to 255 s
Digital slew-rate limiting filter: Adjustable limiting factor, output change rate 15...240 mm/min
Digital interfaces: Model E2703: 3-wire non-addressable serial EIA232, Model E2704: 3-wire addressable serial EIA485
Baud rate: selectable 4800, 9600, 19200, 38400, 57600, 115200 bps
Protocol: Omnicomm compatible
Supply voltage: 10 to 48 VDC (12 VDC and 24 VDC nominal board voltages) transient overvoltage, reverse polarity, cross-wire, short circuit protections provided
Operating conditions: –40 to +85 °C, 0 to 100 %RH, IP67 protection
Fuel types: Petro-diesel, bio-diesel fuels with flash point higher than +60 °CReference Specific ReferencesCondition New productDownloadEvikon E2703 DataSheetEvikon E2703 Fuel Level Sensor with RS232 Interface Transmitter Data SheetDownload (500.33k)Evikon E2703 EC ConformityEvikon E2703 Fuel Level Sensor with RS232 Interface Transmitter EC Declaration of ConformityDownload (305.23k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E2703 Fuel Level Sensor with RS232 Interface TransmitterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
