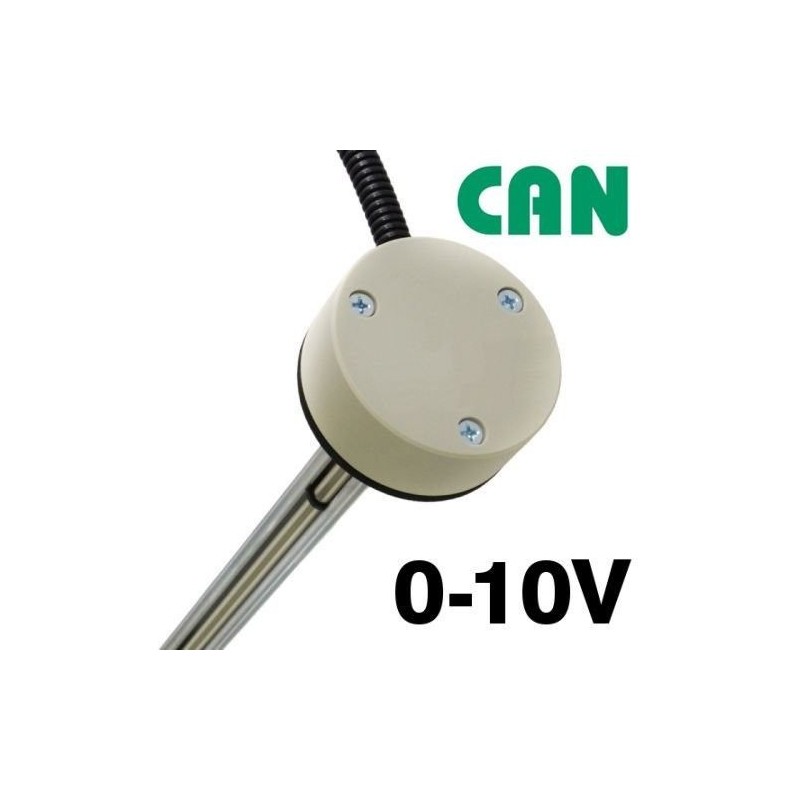

E2706 is carefully engineered for best performance and reliability. The sensor stem is made of a special light metal alloy for corrosion resistance and stiffness. The vertical slot in the stem reduces its clogging by residues in the fuel, facilitates cleaning and maintenance and improves the reaction time compared to closed tube geometry. The electronics box is completely sealed, providing protection from mechanical and corrosive impact.
The stem can be easily cut directly at the installation place up to 20% of the initial length to fit into the tank. Two standard lengths that suit the majority of fuel tanks are available: L800 mm which may be cut to 100 mm and L1600 mm which may be cut to 100 mm. The maximum stem length is limited to L2400 mm.
Evikon E2706 Fuel level sensor with CAN and 0-10 V Transmitter Specifications
Level sensitivity: > 2 units per mm, typically 15 units per mm
Resolution: < 0.1% of the range, typically 0.07 mm Ambient temperature effect: <0.03%, typically ±0.01% of the range per °C, adjustable temperature compensation Non-linearity: < 0,3% of the range Digital integrating filters: Adjustable time constant and integrating factor, output change rate 15...240 mm/min Digital interface: CAN 2.0B as per ISO 11898, 250 kbps baud rate, SAE J1939 compatible protocol Analog interface: 0-10 V, programmable Internal calibration: Digital calibration, internal calibration table up to 32 points, custom output units Supply voltage: 10 to 72 VDC, transient overvoltage, reverse polarity, short circuit protection Operating conditions: –40 to +85 °C, 0 to 100 %RH, IP67 protection Fuel types: Petro-diesel, bio-diesel fuels with flash point higher than +60 °CReference Specific ReferencesCondition New productDownloadEvikon E2706 DataSheetEvikon E2706 Fuel level sensor with CAN and 0-10 V Transmitter Data SheetDownload (527.66k)Evikon E2706 CertificateEvikon E2706 Fuel level sensor with CAN and 0-10 V Transmitter Certificate of conformityDownload (142.64k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E2706 Fuel level sensor with CAN and 0-10 V TransmitterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
