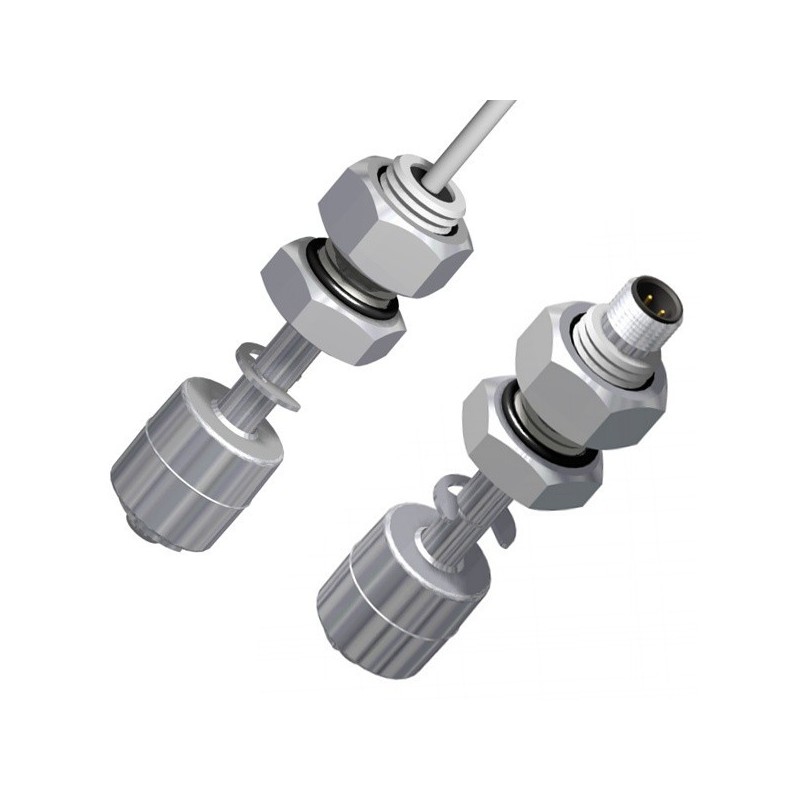

Evikon E2713 Magnetic Float Level Switch Transmitter Specifications
Number of floats: one to five (min distance 35 mm)
Stem length: from 50 mm to 3000 mm
Process connection: M16 thread, inside mounting
Accuracy of setpoint: ± 3 mm
Evikon E2713 Magnetic Float Level Switch Transmitter Typical versions
E2713-11-L1-35: one float, one setpoint (Max or Min) at distance L1 from top
E2713-12-L1-L2: one float, two setpoints, Max at distance L1 from the top, Min at distance L1+L2 from top
E2713-22-L1-L2: two floats, two setpoints, Max at distance L1 from the top, Min at distance L1+L2 from top
E2713-33-L1-L2-L3: three floats, three setpoints, First at distance L1 from the top, Second at distance L1+L2 from the top, Third at distance L1+L2+L3 from top
Contact forms: SPST NO – normally open, SPST NC – normally closed, SPDT – switchover on request
Switching power: 10 VA standard, 30 / 50 VA on request
Switching current: 0,5 A
Switching voltage: 200 V AC/DC standard, 350 V AC/DC on request
Wetted parts: AISI316 / V2A stainless steel/PA, IP68
Float material: V2A stainless steel for liquids with density > 0.9 g/cm3 polyamide for liquids with density < 0.9 g/cm3 Cable (option S3): FEP / silicone insulated standard length 3 m Connector (option M12): M12 type A, IP68 Process temperature: -40...+130 °C (with stainless steel float)                              -10...+90 °C (with PA float) Ambient temperature: -40...+130 °C (cable),                                 -40...+85 °C (M12 connector) For the M12 connector, only one switch-over contact is availableReference Specific ReferencesCondition New productDownloadEvikon E2713 Data SheetEvikon E2713 Magnetic Float Level Switch Transmitter Data SheetDownload (323.12k)Evikon E2713 User ManualEvikon E2713 Magnetic Float Level Switch Transmitter User ManualDownload (118.75k)Evikon E2713 EC ConformityEvikon E2713 Magnetic Float Level Switch Transmitter EC Declaration of ConformityDownload (302.95k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E2713 Magnetic Float Level Switch TransmitterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
