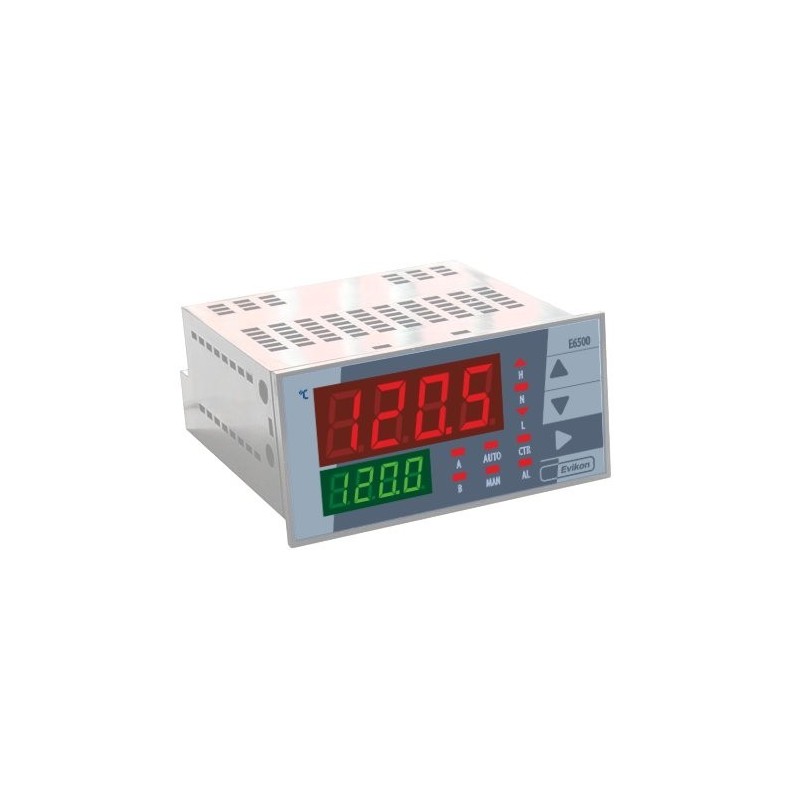

Evikon E6500 Temperature controller Specifications
RTD types: Pt50, Pt100, Pt500, Pt1000, Ni500, Ni1000
RTD connection circuit: 2, 3 or 4 – wire
Accuracy: 0,25% FSO
Sampling time: 0,2 … 0,3 s
Lead resistance: 15 Ohm max
Thermocouple types: B, J, K, N, R, S, T
Accuracy: 0,5% FSO
Sampling time: 0,2 s
Lead resistance: 100 Ohm max
Cold junction: internal temperature compensation
Remote control input: potential free contact
                                    min 1000 Ohm open
                                    max 70 Ohm closed
Displays: 2 × 4-digit 7-segment LED,
              height 20 mm / 12 mm
Functionalities: On/Off or PID control, digital filter
Output 1: SPST control relay 5 A, 250 V
Output 2: SSR control 0-5 VDC, 40 mA max
Output 3: SPST alarm relay 3 A, 250 V
Supply voltage: 96…264 VAC
Power consumption: < 5 VA Enclosure: light grey ABS, for panel mounting, protection IP54 (front) / IP20 (back) Dimensions and weight: H48 × W96 × D100 mm, ~160 g Applications: general industrial automation Operating conditions: -20...+50 °C, 10...80 %RHReference Specific ReferencesCondition New productDownloadEvikon E6500 Data SheetEvikon E6500 Temperature controller Process Regulator Data SheetDownload (673.16k)Evikon E6500 User ManualEvikon E6500 Temperature controller Process Regulator User ManualDownload (1.25M)Evikon E6500 EC DeclarationEvikon E6500 Temperature controller Process Regulator EC Declaration of ConformityDownload (302.55k) Andrew U07/01/2021customer supportFor quality, genuineness, fast delivery and good customer support, I recommend industry safety Nigeria as No: 1 in meeting all of that needWrite your reviewEvikon E6500 Temperature controllerQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
