Description

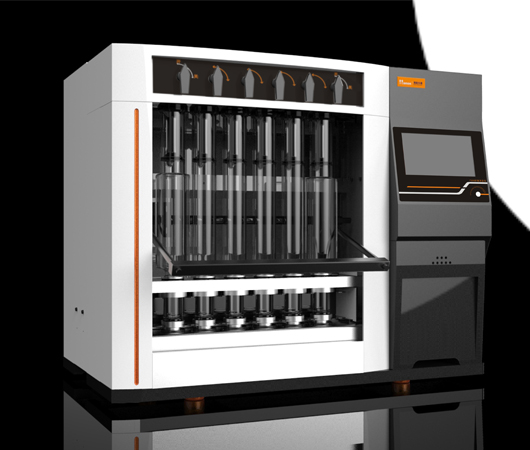

F800 Crude Fiber Analyzer
Model: F800
Manufacturer: HANON INSTRUMENTS





F800 Crude Fiber Analyzer is with advanced design, easy operation and flexible application. It can be used in conventional Weende method to analyze crude fiber and Van Soest analysis to wash the fiber. Applies to plant, feed, food and other agricultural products as well as the determination crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).
Features of F800 Crude Fiber Analyzer

Hidden solution barrel pull structure designed to facilitate dosing operation, provide the safest fiber analysis.
Corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.
The crucible recoil function designed to prevent sample in the crucible can not caking filtration.
With dosing overflow protection function to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.
Adjust the crucible heating power in time, enabling customers to control the heating rate easily and low down the energy consumption, ECO-friendly.
Having a built-in pre-heating function, greatly reducing the whole experiment time.
Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.
Can detect crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).

Precise control experiment

Test time can be set free, clockwise and countdown timing functions are available, real-time reminder end of the experiment, the experimenter to facilitate precise control experiment, save test time, improve efficiency.

Integrated infrared heating technology

Advanced integrated infrared heating, more uniform heating of the crucible fast, more consistent sample extraction, higher extraction recovery, thereby improving the accuracy of test results.
Optional peripheral accessories:cool extractor .Experiments can go fat,washed with acetone extraction after detection of acid lignin and other steps

Specifications of F800 Crude Fiber Analyzer

Measurement range
0.1%～100%

Sample weight
0.5g～3g

Repeatability error
Craw Fiber Content below 10%, ≤0.4% | Craw Fiber Content above 10%, ≤1%

Capacity
6 pcs/batch

Pre-heating time
10-12min

Heating to boiling
13-15min

Rated power
2.2KW

Power supply
220 VAC ±10% 50Hz

Dimension
776mm×476mm×644mm


PRODUCT SHOW
