Factory price 300kn 30Ton building material lab cement motar compression flexural strength testing equipment
- Warranty:
-
1 Year
- Customized support:
-
OEM, ODM, OBM
- Place of Origin:
-
Shandong, China
- Brand Name:
-
yisite
- Model Number:
-
EYAW-Y300
- Power:
-
Hydraulic
- Power supply:
-
AC380V, 50HZ
- Certificate:
-
CE ISO
- Loading speed:
-
0.1-10KN/S
- Max load:
-
300KN, 10KN
- Accuracy:
-
Grade 1
- Measuring range:
-
2%-100%FS
- Control:
-
Computer System
- Test material:
-
Cement motar
- System working pressure:
-
25mpa
- Max. stroke:
-
80mm
- Supply Ability
- 1000 Set/Sets per Month
- Packaging Details
plywood case
- Port
Qingdao port, Shanghai port, Shenzhen port etc
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 10 To be negotiated

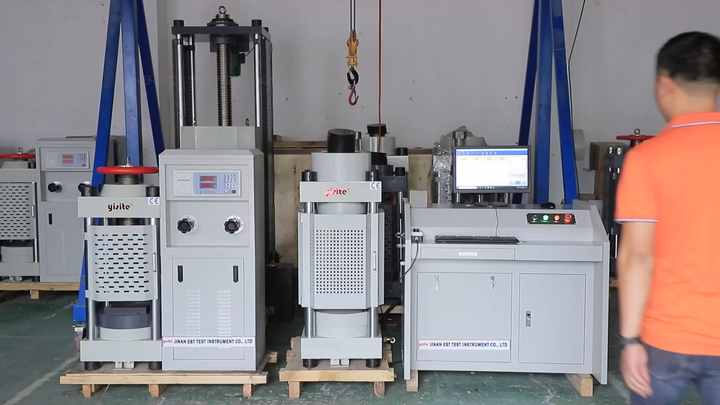

300kn computer controlled hydraulic power cement lab testing equipment

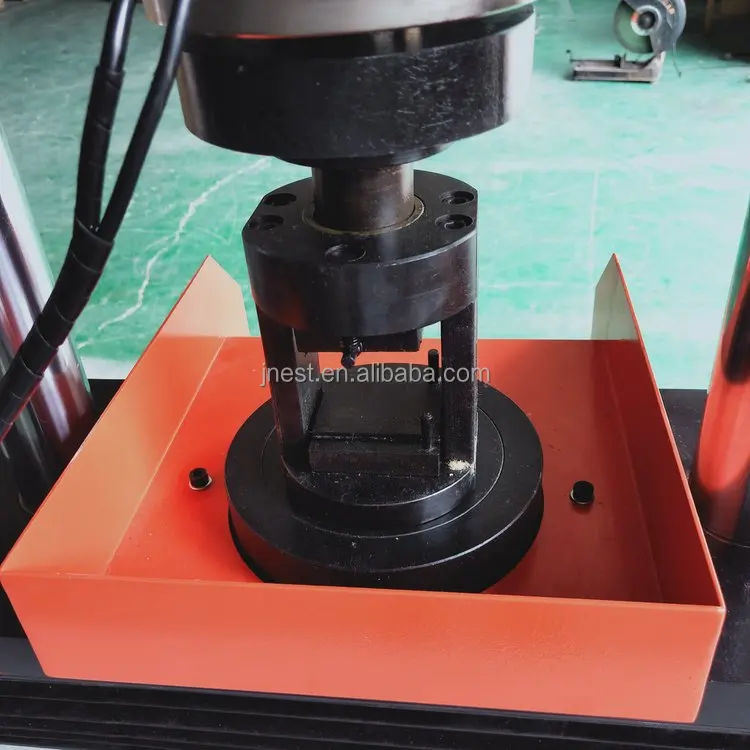

This 300kn computer controlled hydraulic power cement concrete lab testing equipment frame adopts double space, the right space is flexture test space and the left space is compression test space.
The motor and loading system install on the bottom of the testing machine.
Standard: EN1015-11/EN196-1/GB17671-1999
This model testing machine adopts Lenovo computer , servo control system. So the test process is very smooth and efficient.
This testing machine can complete the test parameter’s setting, the test process’s controlled, the test data collecting, Analysis and display.
It can do one specimen compression test also can do a group specimen compression test.
This testing machine can connect the printer this can print the test curve and test report.
Technical Parameter:
|
Model |
EYAW-Y300 |
|
Maximum Compression test force(KN) |
300 |
|
Maximum Flexural strength test force(KN) |
10 |
|
Test power accuracy |
±1% |
|
Compression strength test range |
2%~100%FS |
|
Distance between up and down bearing plates |
200mm |
|
Test speed |
0.1-10KN/S |
|
Compression plate diameter(mm) |
160mm |
|
Max distance between right and left columns(mm) |
200 |
|
Effective stroke(mm) |
80 |
|
Power supply |
AC 380V±10% 50Hz |
